N45 MNS/MSS/MNT/MST

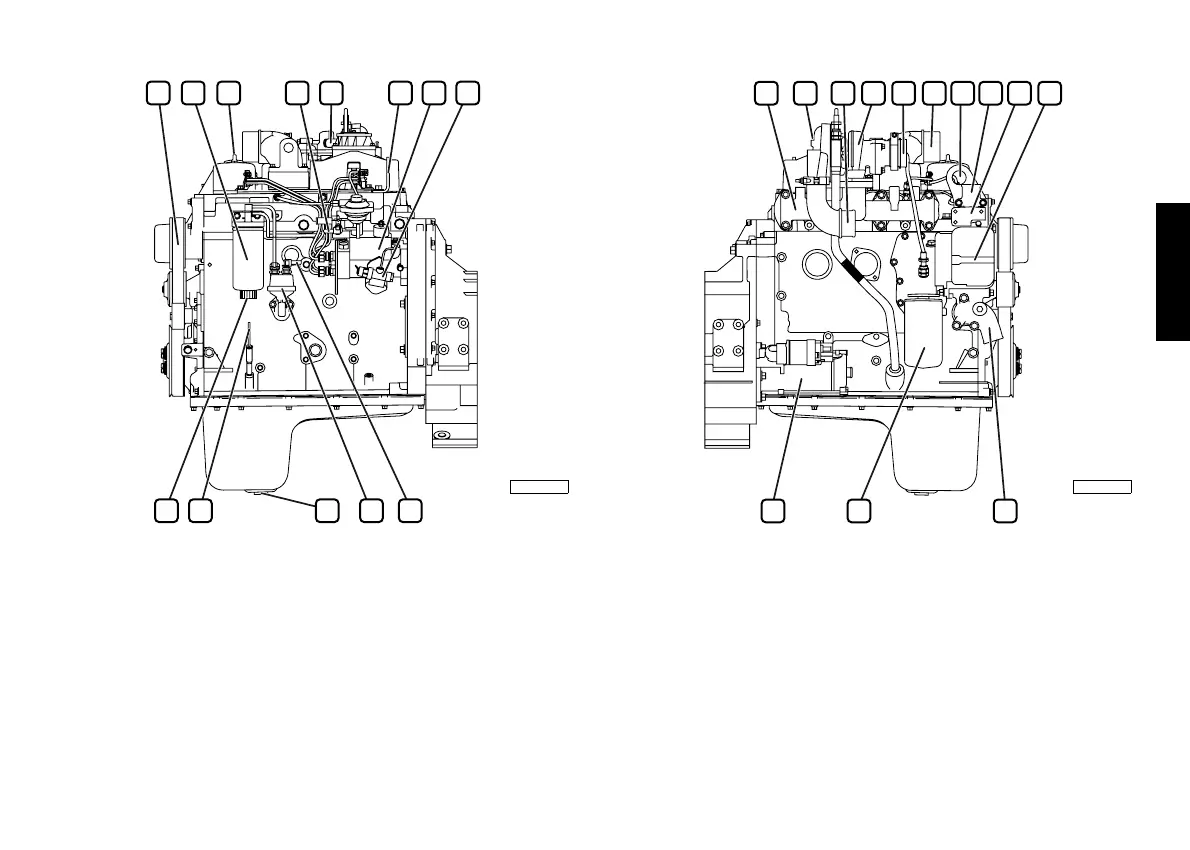

1. Auxiliary member drive belt - 2. Fuel filter - 3. Oil filler cap - 4. Fuel
outlet connector to tank - 5. Oil vapour bleeder - 6. Lifting U-bolt -
7. Injection pump - 8. Cold injection timing variator - 9. Fuel inlet
manifold from tank - 10. Fuel pump - 11. Oil drainage plug - 12. Oil
dipstick - 13. Fuel filter condensation drainage plug.
N45 MNS/MSS/MNT/MST
1. Exhaust manifold - 2. Turbocharger air inlet - 3. Turbocharging air
outlet (only for N45 MNT/MST engines) - 4. Turbocharger -
5. Turbocharger exhaust outlet - 6. Engine air inlet - 7. Lifting U-bolt -
8. Engine coolant outlet - 9. Location of thermostatic valve -
10. Alternator - 11. Engine coolant inlet - 12. Oil filter - 13. Electric
starter motor.
