Framery Four

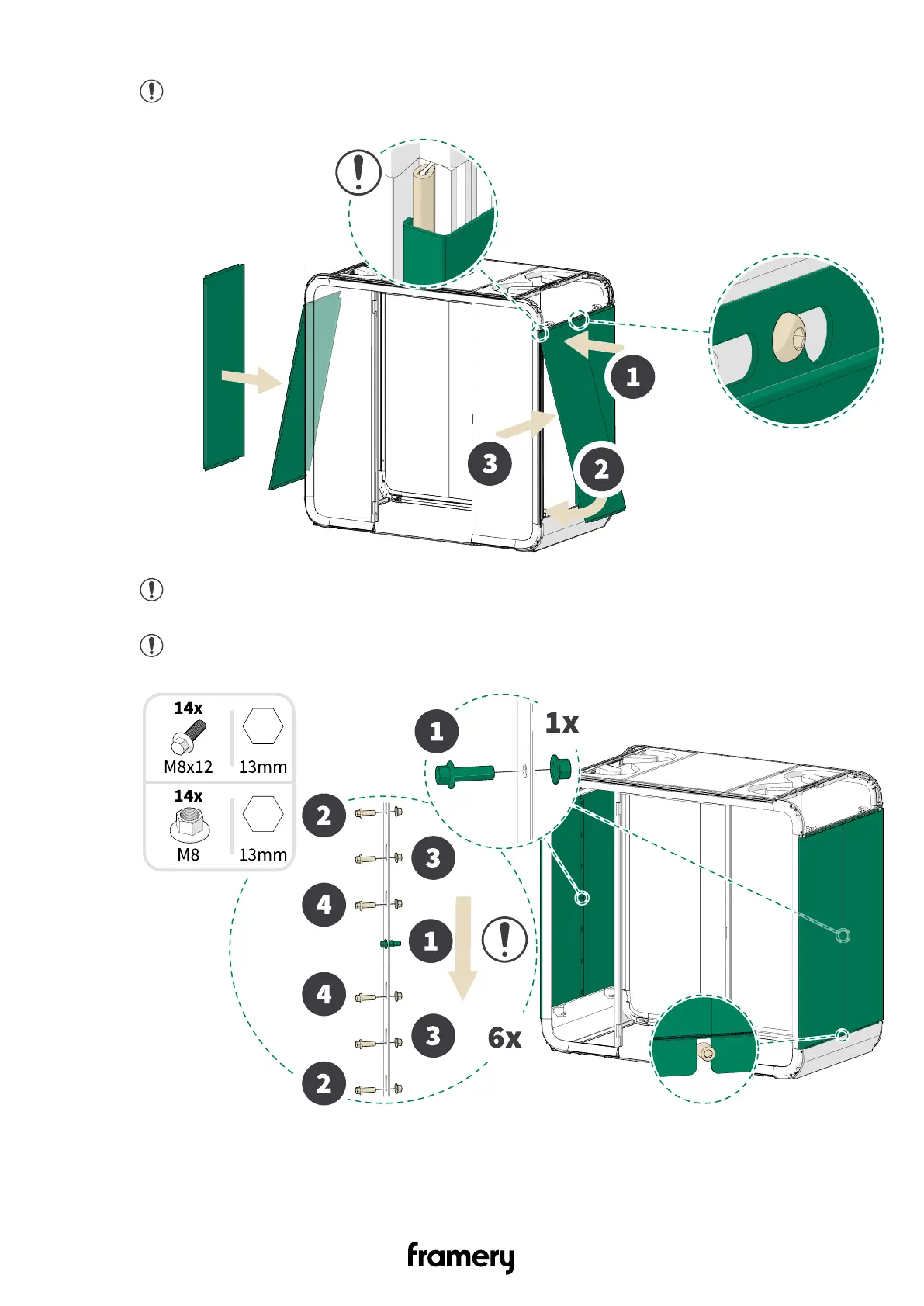

1.
Note: Make sure that the elastic gasket sits firmly under the edge of the
exterior panel.
2.
Note: Before you tighten the bolts, make sure that the panel cuts surround the
pin.
Note: When tightening the screws on the slotted holes, pull down on the screw
to align the exterior panels.
Installation instructions
