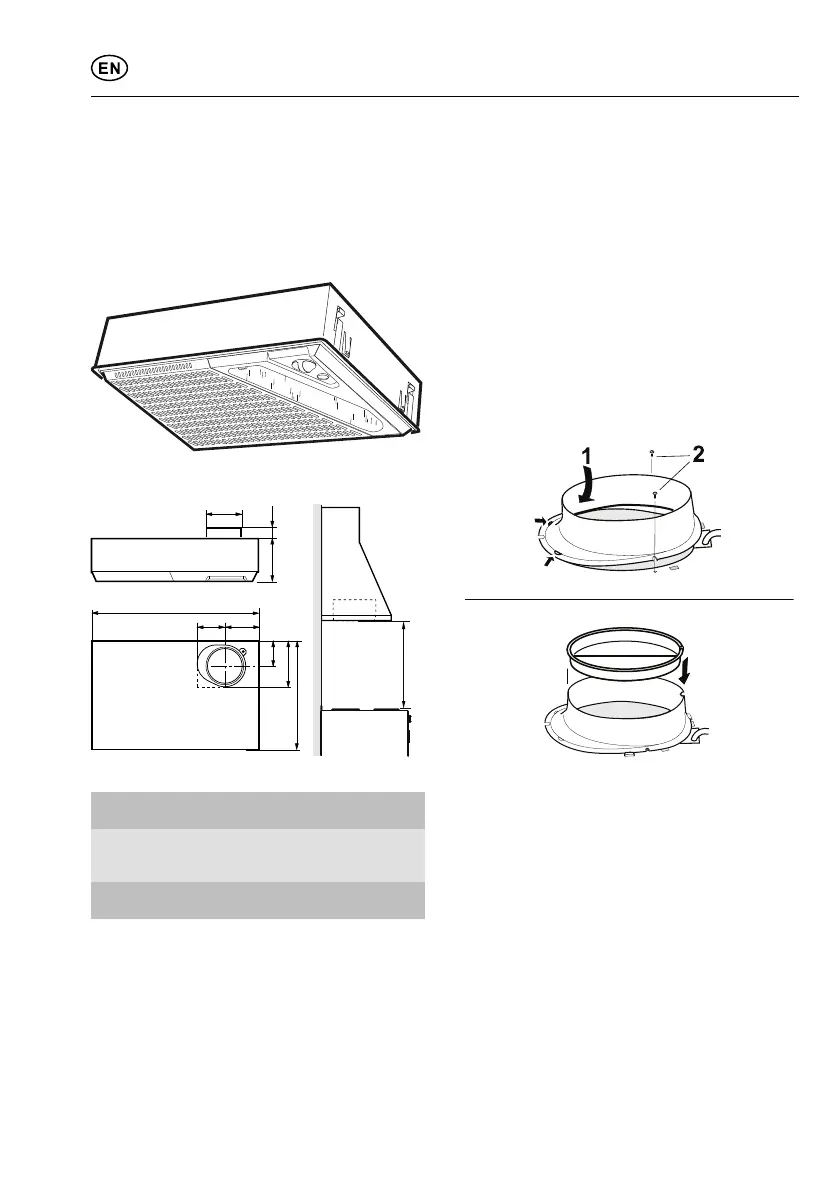

INSTALLATION
The cooker hood is designed for installation
built into cupboards or a dedicated cooker
hood. The cooker hood is equipped with an
LED lamp and a polyester filter. Installation,
use, care, maintenance, etc., are described
in these instructions.
TECHNICAL INFORMATION
min. 400/650
95
104
88
164
442
292
120
40
Ø125
Fig. 1
Measurements see Fig. 1
Electrical
installation
230 V ~ earthed
Lighting LED 8 W, socket E27
OPTIONS
Drum attachment for connection to kitchen
flue. Instructions for connecting of the
drum attachment are included.
INSTALLATION
Attention!
Fixing parts, screws for mounting, etc. are
supplied with the cooker hood.
Electrical installation
The cooker hood is supplied with a cable
and earthed plug for connection to an ear-
thed wall socket. The wall socket should be
accessible after installation is complete.
Assembly of connecting sleeve
coupling
Fig. 2
The connecting sleeve coupling and cold
draught shutter are supplied inside the fan.
Remove the filter.
The cold draught shutter is used to reduce
any back draught when the cooker is not in
use.
Attach the sleeve coupling to the fan Fig.
Fig. 2A. Then place the cold draught shutter
in the sleeve Fig. Fig. 2B
991.0694.921/D000000009064/1802644/2023-01-29 11
