Franke COMPACT T 400 - Page 9

7
11-03-2014 / LSC 178 / Rev. 00
400
T

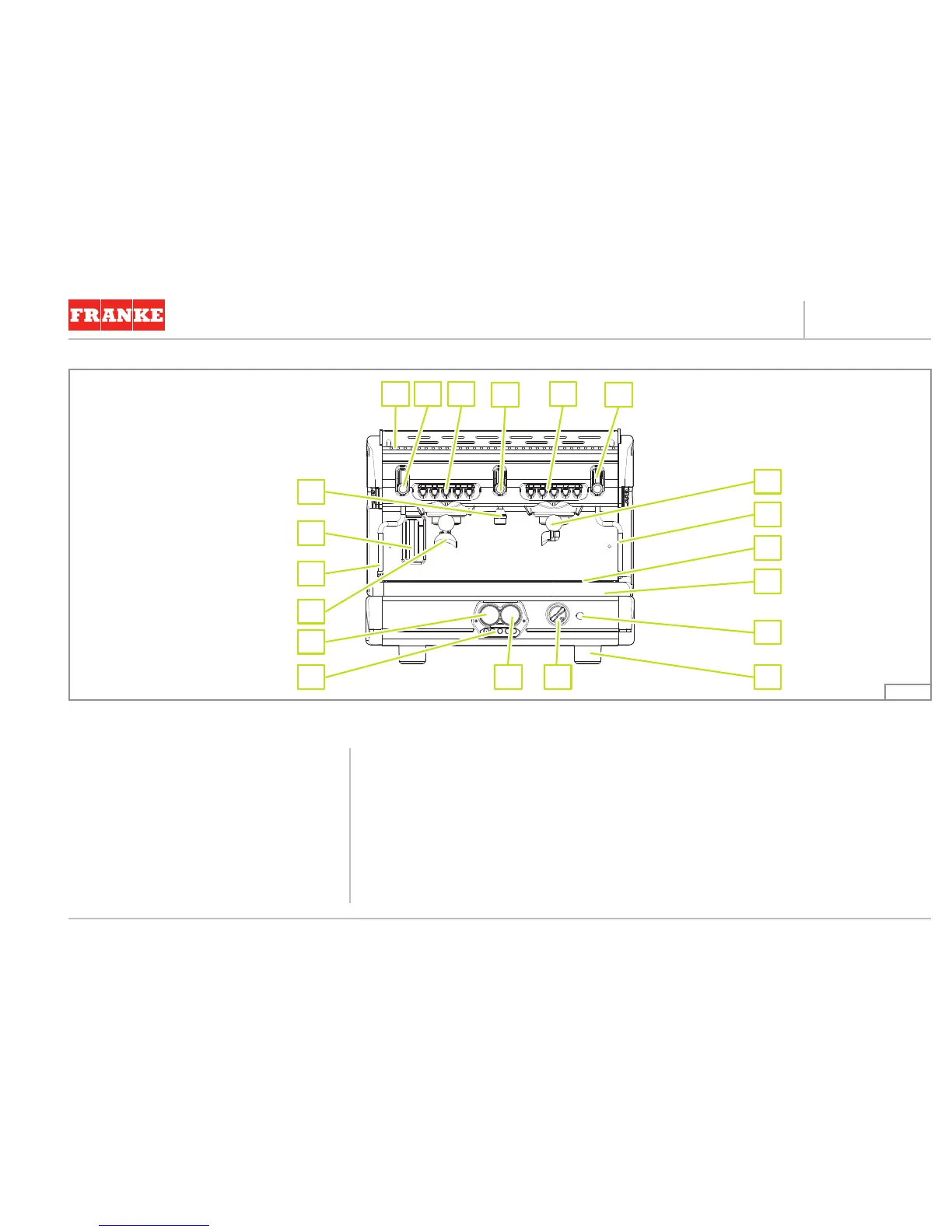

LEGEND
1. Top cup grid
2. Steam tap
3. Hot water tap
4. Touchpad
5. One-cup filter holder
6. Electric cup warmer button (optional)
7. 2-cup filter holder
8. Right steam wand
9. Drip tray grid
10. Water drip tray
11. Boiler pressure gauge
12. Main on/off switch
13. Adjustable foot
14. Water mains gauge
15. Left steam wand
16. Water level glass
17. Hot water output
18. Control panel
Fig. 5
COMPACT T 400
3 2
4 4
1 2
16
17
15
7
14
18
13
6
1211
10
9
8
5
