1.1 CONTROL PANEL DESCRIPTION
LEGEND
a. Technical assistance indicator (optional)
b. Indicator light for electric heating sys-
tem status
c. Temperature indicator lights
d. Cup warmer heating element indicator
light (optional)
e. Stand/by indicator lights
f. ON/OFF button for appliance electric
heating
g. Datum decrease button
h. Datum confirmation button
i. Datum increase button
l. Cup warmer heating element activa-
tion button
m. 1 short coffee preset delivery button
n. 1 long coffee preset delivery button
o. Continuous delivery key
p. 2 short coffee preset delivery button
q. 2 long coffee preset delivery button

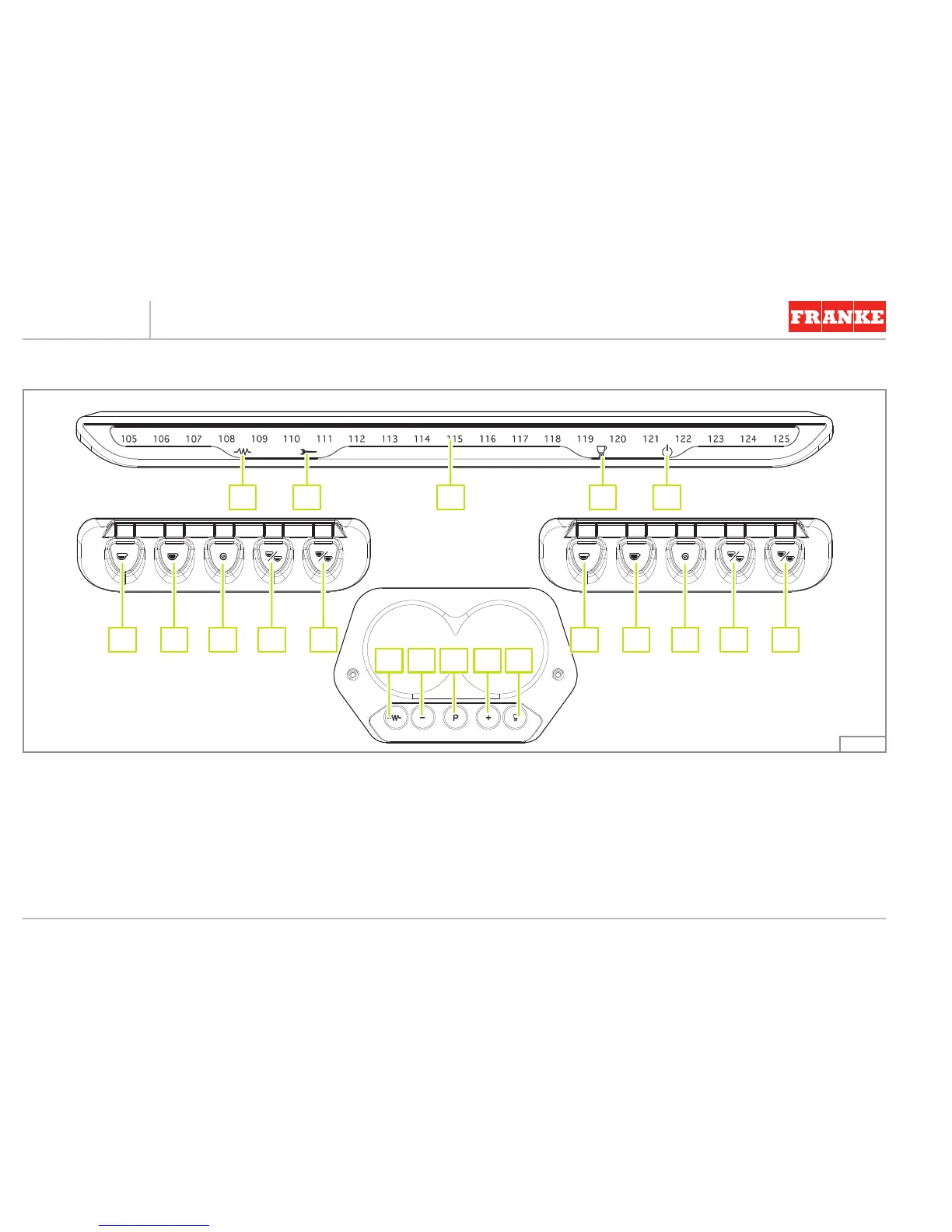

Fig. 6
Model EK
f g h i l
b a c d e
m mn np pq qo o
