Franke COMPACT T 400 - Installation Requirements for the User

11
11-03-2014 / LSC 178 / Rev. 00
400
T
• TheappliancehasIPX2 protection against water and therefore, it cannot be installed in areas where it may be subject to jets of water.
• Theappliancehasclass I protection against electric shocks.
• Thenoiseemittedbytheapplianceduringnormaloperationislessthan70 dB.
Attention!
Failure to comply with the above regulations could jeopardise the correct operation and safety of the appliance as well as its
useful lifetime.
2.2 INSTALLATION REQUIREMENTS FOR THE USER
The appliance must be placed on a flat and stable surface and a
surface height for the appliance of no less than 1.2 metres from
the ground. Check this important requirement, since the manu-
facturer cannot be considered liable for any damage caused by
the instability of the appliance. While preparing the system, take
into account that a hole is needed on the bearing surface in order
to carry out all electric and water connections through the open-
ing below where a water softener will need to be placed, if recom-
mended by the installation engineer.
A hole of 10 x 10 cm is enough in the area (a) as indicated in Pict. 7.
The minimum size of the opening below is:
- height 60 cm.
- width 40 cm.
- depth 40 cm.
Y
XX
A
2
1
3

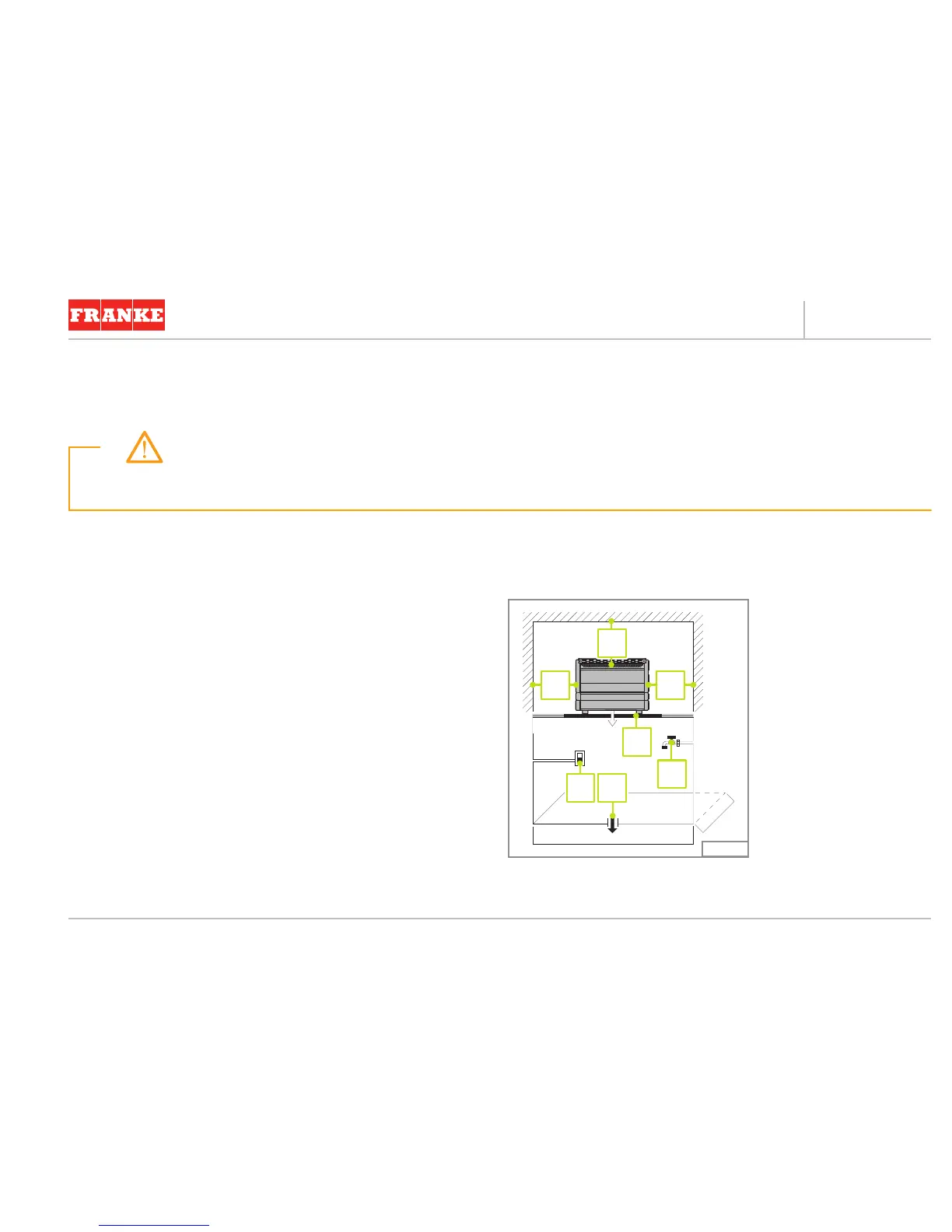

Fig. 7
Legend:
1 multi-pole power
switch with a switch-
contact gap of at
least 3 mm.
2 Water supply tap
3 Drain siphon
X min. 20 cm.
Y min. 40 cm.
Z* min. 10 cm.
*) Distance between the
back of the appliance
and the wall.
