4
1.0
GENERAL OF THE DRYING CABINET
DC-2200 SINGLE DOOR
DC-2200 X DOUBLE DOOR (PASS-THROUGH)
The DC-2200 and DC-2200 X drying cabinets are designed especially for drying of
anaesthetic equipment and hoses, surgical instruments, glassware, bowls, dishes,
bottles etc.
The chamber size is dimensioned for 8 shelves. Deko-2000 washer-disinfector´s
shelves fit directly on the rails and any Deko´s spray racks get air blow through their
tubes.
The micro-processor provides the possibility of having a selection of 5 different
programmes suited for various items.
(See point 5.0 Programming).
2.0 INSTALLATION INSTRUCTIONS
1. Installation
Position the drying cabinet. Adjust it vertically and horizontally by adjusting the four
feet.
The flap for outcoming water is in the middle of the bottom of the drying cabinet (for
possible drip water from the goods).
2. Electrical installation
Electrical installation is semi-fixed.
Installation is allowed to be made only by the authorized professional worker in
accordance with the valid directions.
3. Ventilation

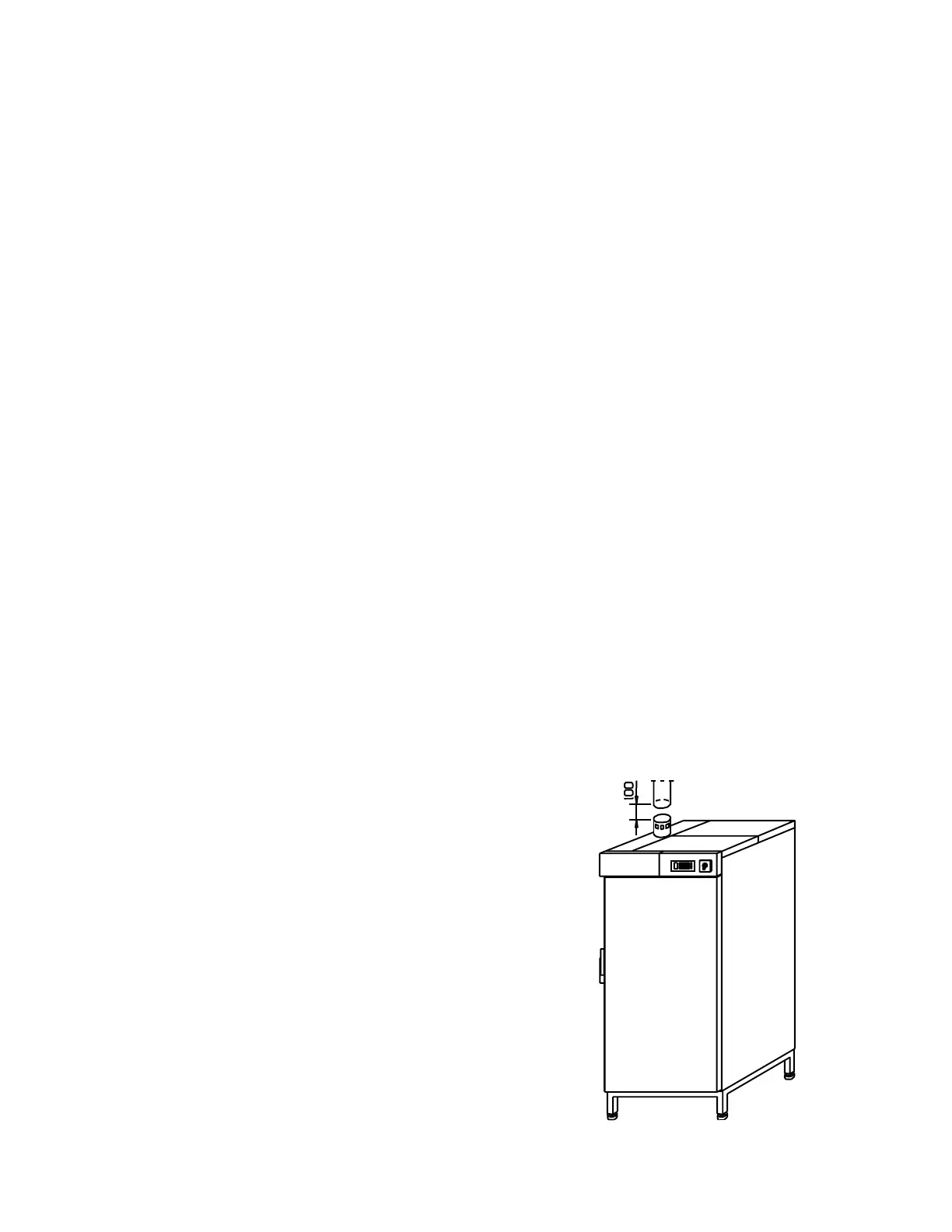

Connection to the ventilation system (drawing)
Distance between the outlet and ventilation duct
must be about 100 mm.
Do not connect the ducts together !
The door can be either left or right-handed
- removable lower hinge
- removable axis of hinge
