Installation and technical data Page 14

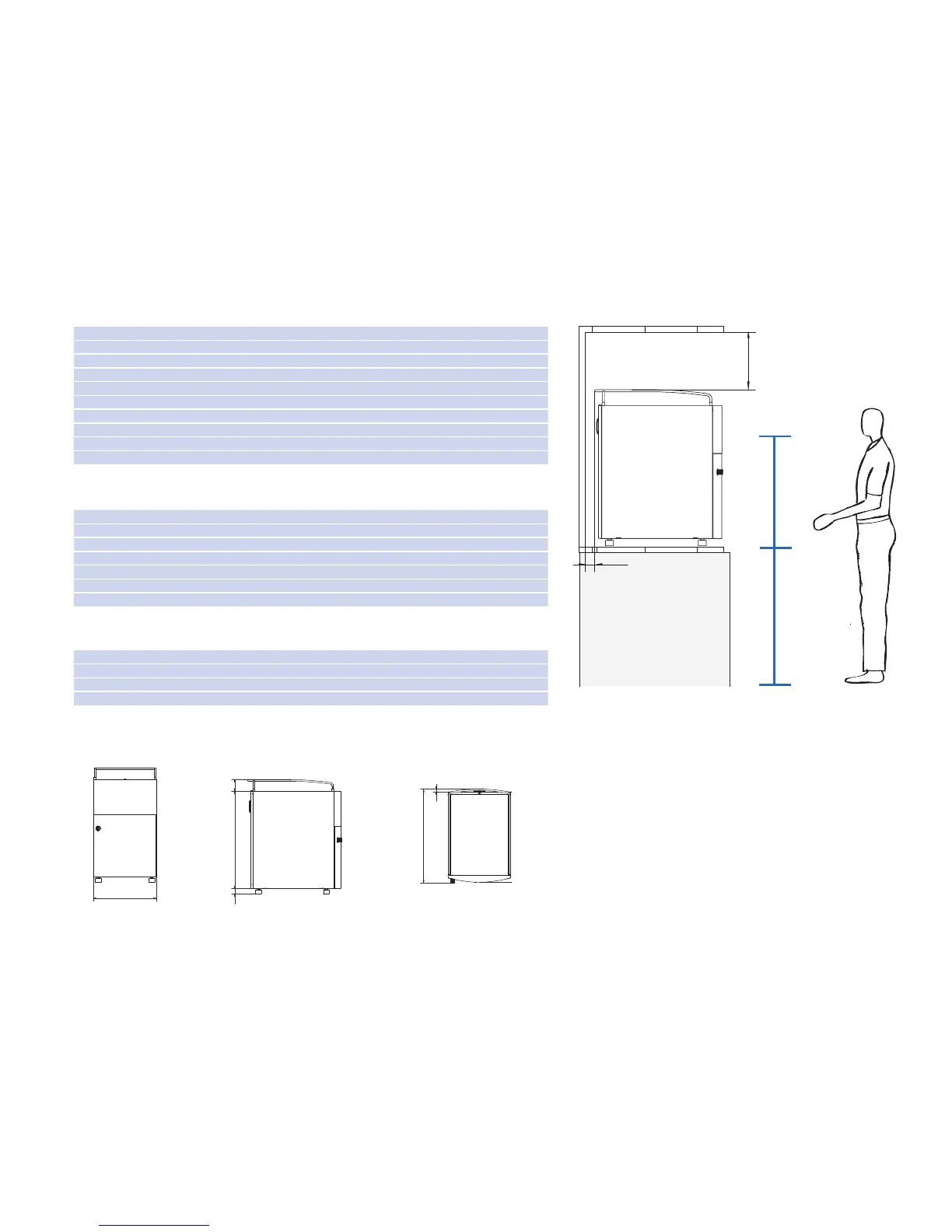

Top viewSide viewFront view
Adjustable feet
(optional)
30 mm (1 ¼") foot 560 mm (22") + 32 mm (1 ¼") = 592 mm (23 ¼")
40 mm (1 ½") foot 560 mm (22") + 45 mm (1 ¾") = 605 mm (23 ¾")
70 mm (2 ¾") foot 560 mm (22") + 70...80 mm (2 ¾"...3 ¼") = 630...640 mm (24 ¾"...25 ¼")
100 mm (4") foot 560 mm (22") + 100...115 mm (4"...4 ½") = 660...675 mm (26"...26 ½")
Technical data for the cup warmer
Capacity up to 80 cups (depending on cup size)
electrical connection 200 - 240 V 1L N PE 140 W 50/60 Hz Fuse: 10 A
Electric cable 2000 mm (78 ¾")
Weight approx. 15 kg (33 lb)
Width
225 mm (8 ¾")
Depth 440 mm (17 ¼")
Height 540 mm (21 ¼")
Technical data for the refrigeration unit
Milk container 10 liters (2.64 gallons)
electrical connection 200 - 240 V 1L N PE 100 W 50/60 Hz Fuse: 10 A
115 V 1L N PE 100 W 50/60 Hz Fuse: 10 A
Electric cable 2000 mm (78 ¾")
Ambient conditions Humidity: max. 80 %
Ambient temperature: 5 - 32 °C (41 - 89.6 °F)
Weight approx. 26 kg (57 lb)
Width
320 mm (12 ½")
Depth 460 mm (18")
Height 500 mm (19 ¾")
Place the optional add-on units in line with the Evolution and at eye
level.
Distance to the wall must be at least 50 mm (2"). Clearance above
the machine must be at least 200 mm (7 ¾").
Adjustable feet can be used to compensate for unevenness or
height dierences.
If optional add-on units are installed, up to an additional 320 mm
(12 ½") may be required per add-on unit.
Installation Dimensions for Add-on units

Franke Evolution Specifications

General

Power Supply	220-240 V
Water Supply	Tank
Water Connection	No
Material	Stainless Steel
Programs	Espresso, Coffee, Cappuccino, Latte Macchiato, Hot Water
Display	Yes
Milk System	Integrated
