INSTALLATION INSTRUCTIONS
_______________________________________________________________________________________________________________________
NOTE: CONNECTION OF THE APPLIANCE TO THE GAS SUPPLY MUST BE IN ACCORDANCE WITH THE REQUIREMENTS
OF ASNZ5601. A ½ INCH BSP CONNECTION AT THE INLET IS RECOMMENDED AND THE GAS SUPPLY LINE TO THE
APPLIANCE MUST BE OF ADEQUATE LENGTH TO ALLOW SUFFICIENT WITHDRAWAL OF APPLIANCE FOR SERVICE
OR DISCONNECTION.
CONNECT USING ANNEALED COPPER PIPE OR A FLEXIBLE HOSE CAN BE USED PROVIDING THAT:
• Assembly acceptable by the local authority and complying with requirements of AS1869, Class B and ASNZ5601
• Length of hose is kept to a minimum.
• The hose connection starts below the protective barrier (where required) installed 60 mm below the appliance.
• The hose is not subject to kinking abrasion or sharp edges.
NOTE: THE COOKER MUST BE INSTALLED WITH PROVISION TO ALLOW THE GAS TO BE TURNED OFF AND
DISCONNECTED FOR SERVICING AND REMOVAL
1. For the LP Gas model the gas supply must be regulated to 2.75kPa; for Natural Gas regulated to 1kPa . A manual shut
off valve must be installed in the gas supply line in an accessible position so that gas supply can be turned off in an
emergency or for service. The cooktop data plate gives details of injector sizes and gas rates.
2. After installing the gas supply ensure that all gas controls are in the off position , then check all connections thoroughly
for leaks
3. Plug the electrical connection in.
Turn each gas control on and adjust to obtain a clear blue flame with no yellow tipping. For adjustments refer to the
attached servicing instructions. The first time you ignite the burners they may not ignite immediately. This is due to air in
the gas lines that should clear within a few seconds. If satisfactory performance cannot be obtained contact the local gas
authority for advice and assistance.
Fill in the warranty model details in this book taking information from the data plate where necessary.
Instruct the owner in safe operation of the appliance and ensure that these instructions are left with the appliance.

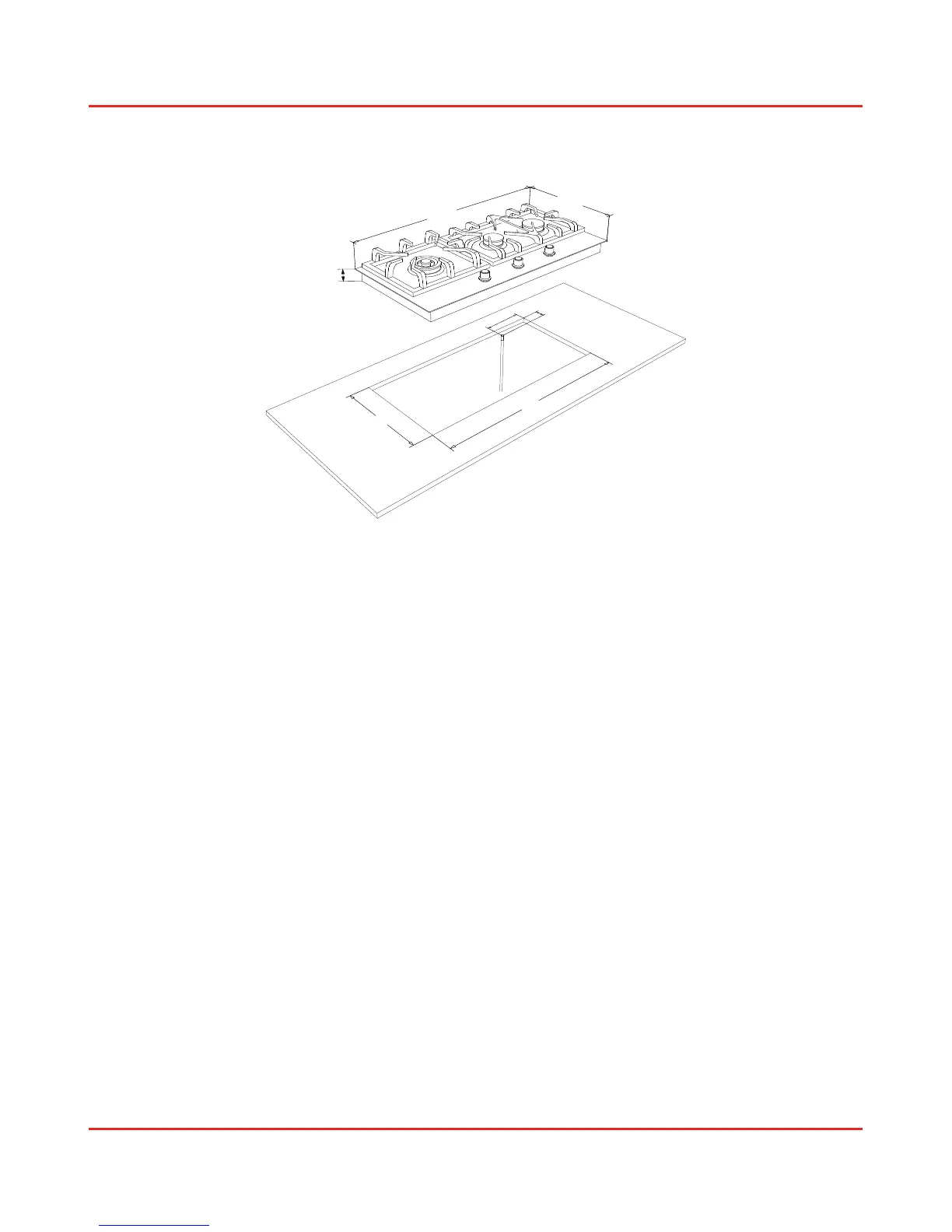

850mm
405mm
378mm
817mm
50mm
60
mm
80mm
