Franke HCWF-28 - Top Brace and Unistrut Installation; Power Cord Connection and Initial Cleaning

– Install four or ve screws to the refrigeration
compartment top brace. Drill pilot holes as
needed. Use No.12 x 2” long [minimum]
wood screws to secure top frame to wall
(Fig. 4).
– Span the unistrut across two ceiling trusses
above the drop ceiling (Fig. 5).
– Screw the all thread into the nut sert
attached at the top of the freezer and behind
the evaporator area (Fig 6)
– Secure the all thread to the unistrut with
supplied hardware (Fig 7).
– Cover the exposed all thread between the
HCWF and the drop ceiling with the split
plastic tube.
– Remove and uncoil the power cord from
refrigeration compartment. Plug it into the
120-volt/60-Hz outlet identied earlier. Any
excess power cord can be coiled inside the
refrigeration compartment, but away from
fan and hot coils. Use plastic wire ties, as
needed.

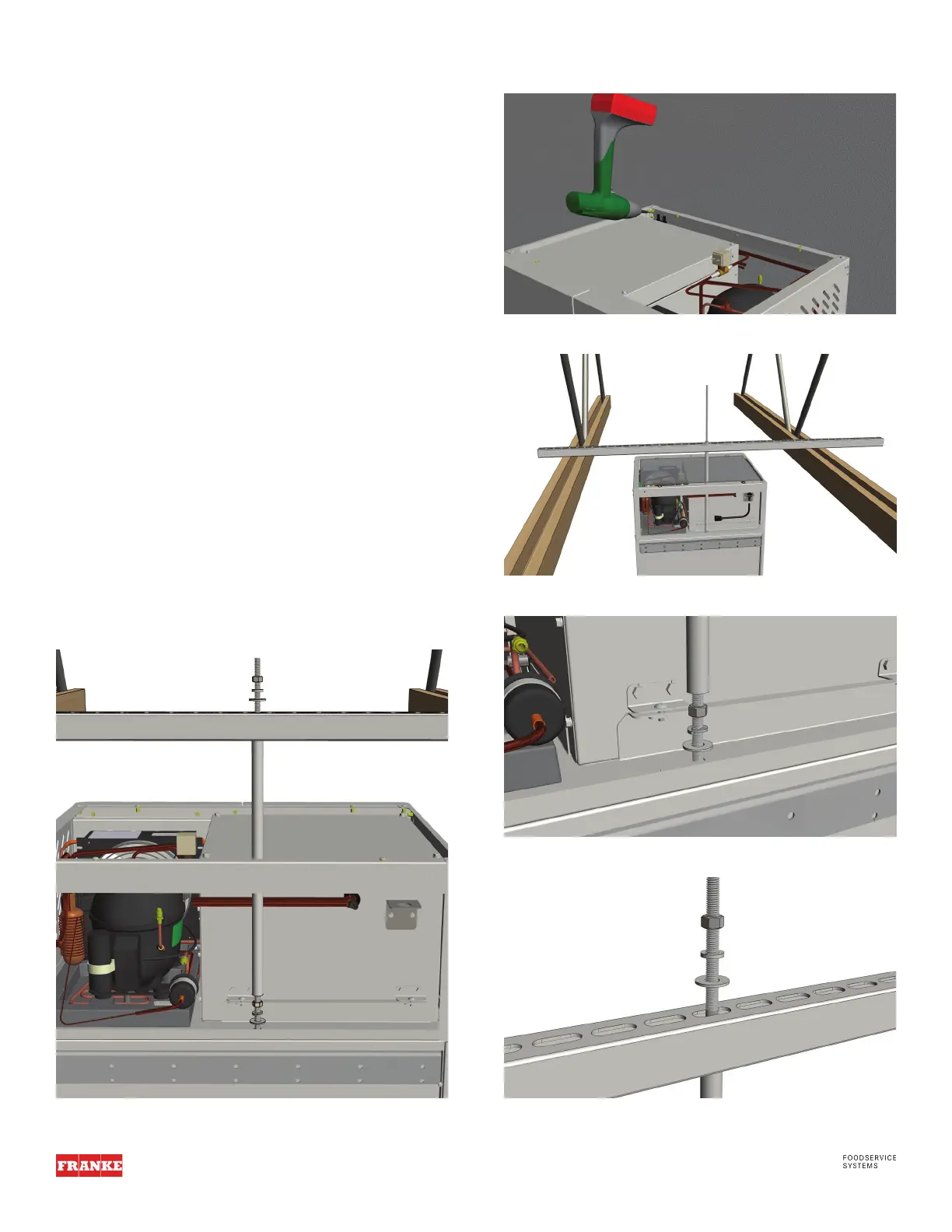

Fig 4. Securing Top Brace
Fig 5. Unistrut Installation
Fig 6. All Thread Installation to HCWF
Fig 7. All Thread Installation to Unistrut
ofPage 187
7. Wall Mounting the Fillet Freezer (Continued)
Fig 8. Complete Assembly Shown for Reference
