aPower
Purposes:
PCS converter: It converts DC power into AC power or AC power to DC power.
External DC power can be converted into AC power to charge the built-in
battery pack, or Internal DC power can be converted into AC power to drive
external loads.
Battery pack: a module to store electrical energy.
20V DC output terminal: to supply power to aGate EMS.
CAN interface: the communication interface between aPower and aGate.
PCS signal input terminal: the signal interface between user PCBA and PCS
converter.
CAN resistor terminal: Controls the current balance on the CAN cable.
aPower AC charging/discharging terminal: An external AC source may be
connected to this terminal to charge the aPower, or aPower may discharge AC
power via this terminal.

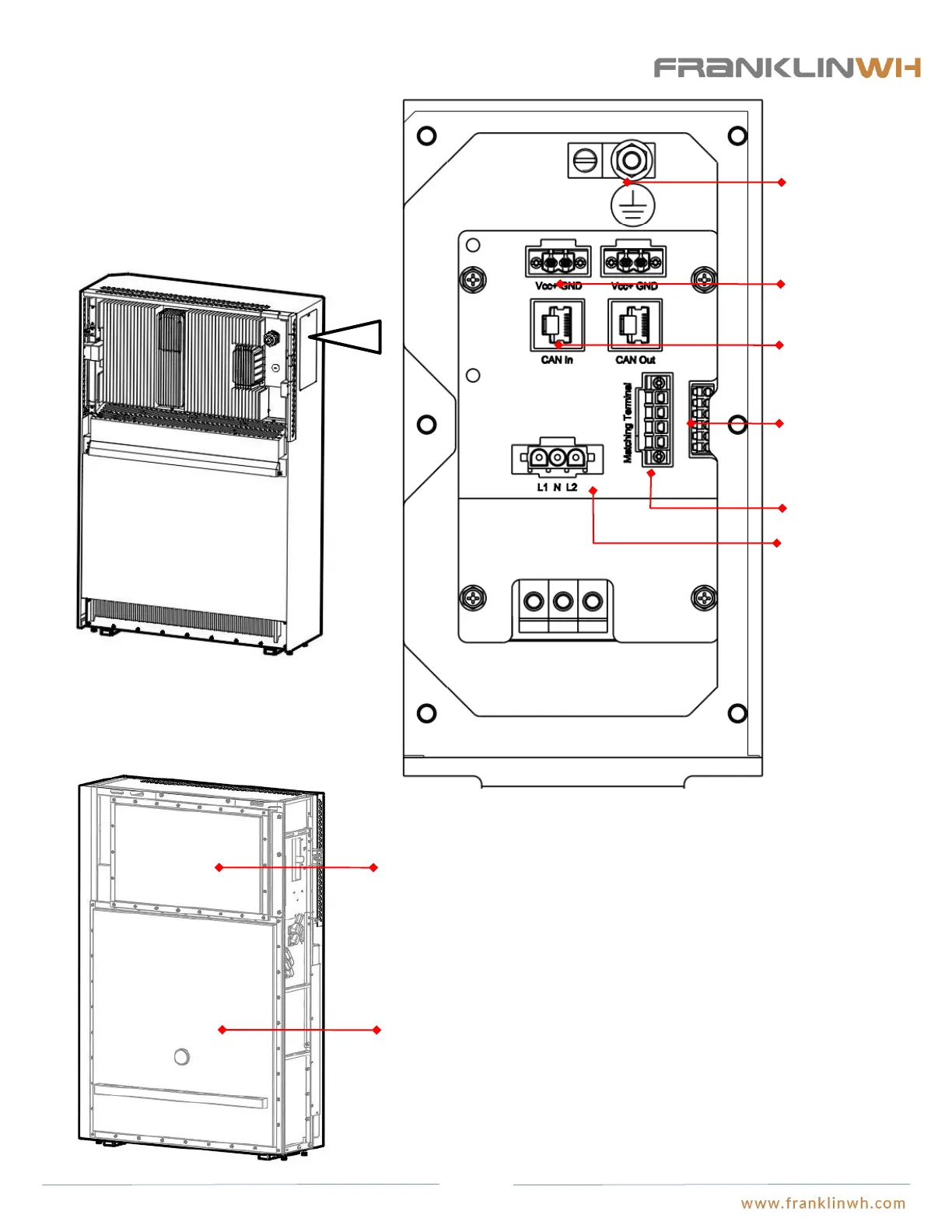

aPower earthing
terminal
20V DC output terminal
CAN interface
aPower AC
charging/discharging
interface
CAN resistor
terminal
PCS signal cable input
terminal
PCS converter
Battery pack
Inside the wiring
compartment
Internal modules
9
