Step 6: Switches and Optional Parts
Install solar switch in aGate

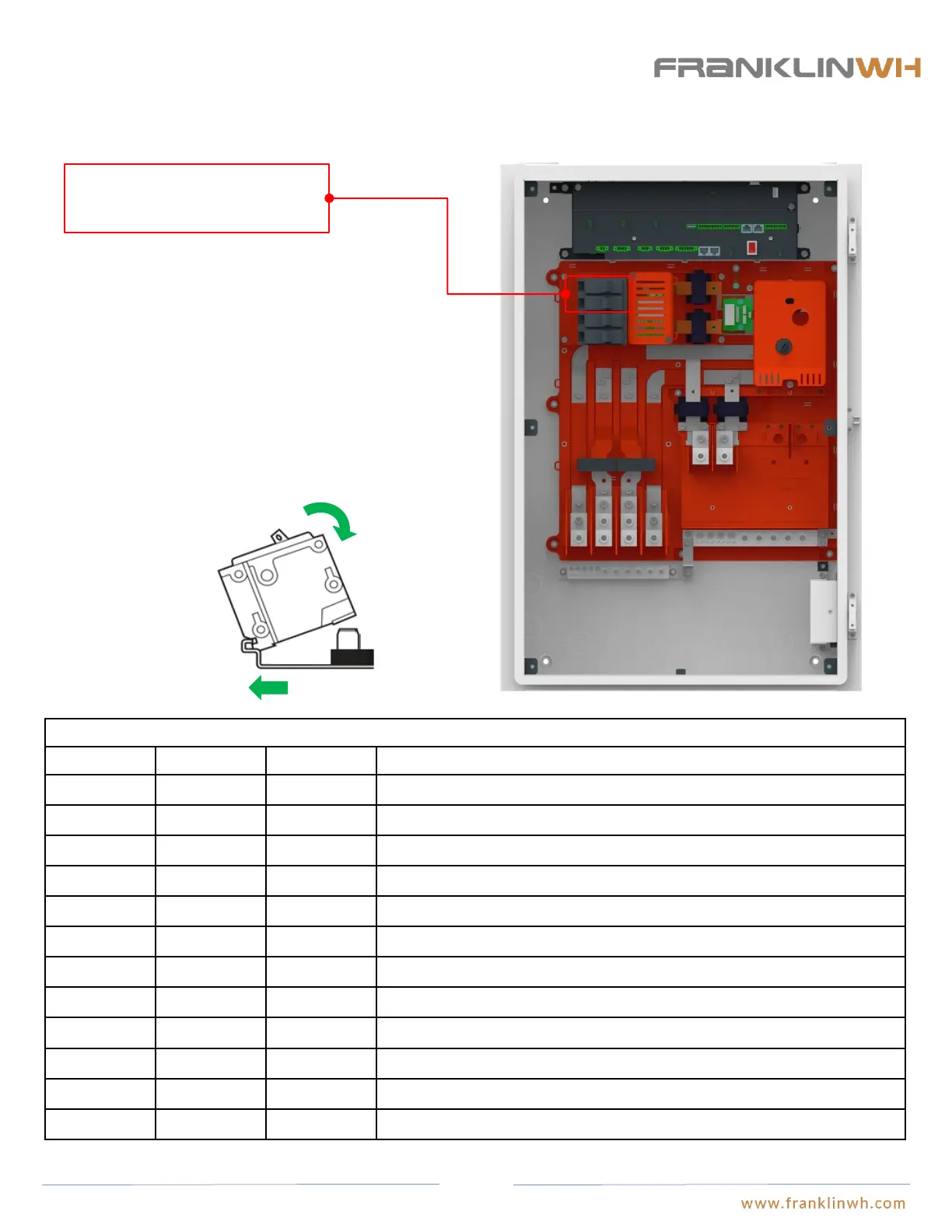

Solar breaker location, solar
generation system available at the
residence.
Installation process of BR series switches:
Table Optional circuit breakers for PV
S/N Model Current Description
1 BR230 30A
Eaton#Circuit Breaker；2-Pole，10kAIC，30A/240V
2 BR240 40A
Eaton#Circuit Breaker；2-Pole，10kAIC，40A/240V
3 BR250 50A
Eaton#Circuit Breaker；2-Pole，10kAIC，50A/240V
4 BR260 60A
Eaton#Circuit Breaker；2-Pole，10kAIC，60A/240V
5 BR270 70A
Eaton#Circuit Breaker；2-Pole，10kAIC，70A/240V
6 BR280 80A
Eaton#Circuit Breaker；2-Pole，10kAIC，80A/240V
7 BRH230 30A
Eaton#Circuit Breaker；2-Pole，22kAIC，30A/240V
8 BRH240 40A
Eaton#Circuit Breaker；2-Pole，22kAIC，40A/240V
9 BRH250 50A
Eaton#Circuit Breaker；2-Pole，22kAIC，50A/240V
10 BRH260 60A
Eaton#Circuit Breaker；2-Pole，22kAIC，60A/240V
11 BRH270 70A
Eaton#Circuit Breaker；2-Pole，22kAIC，70A/240V
12 BRH280 80A
Eaton#Circuit Breaker；2-Pole，22kAIC，80A/240V
