FRANKLINWH AGate - Install Grid Power Supply Switch

Step 6: Switches and Optional Parts

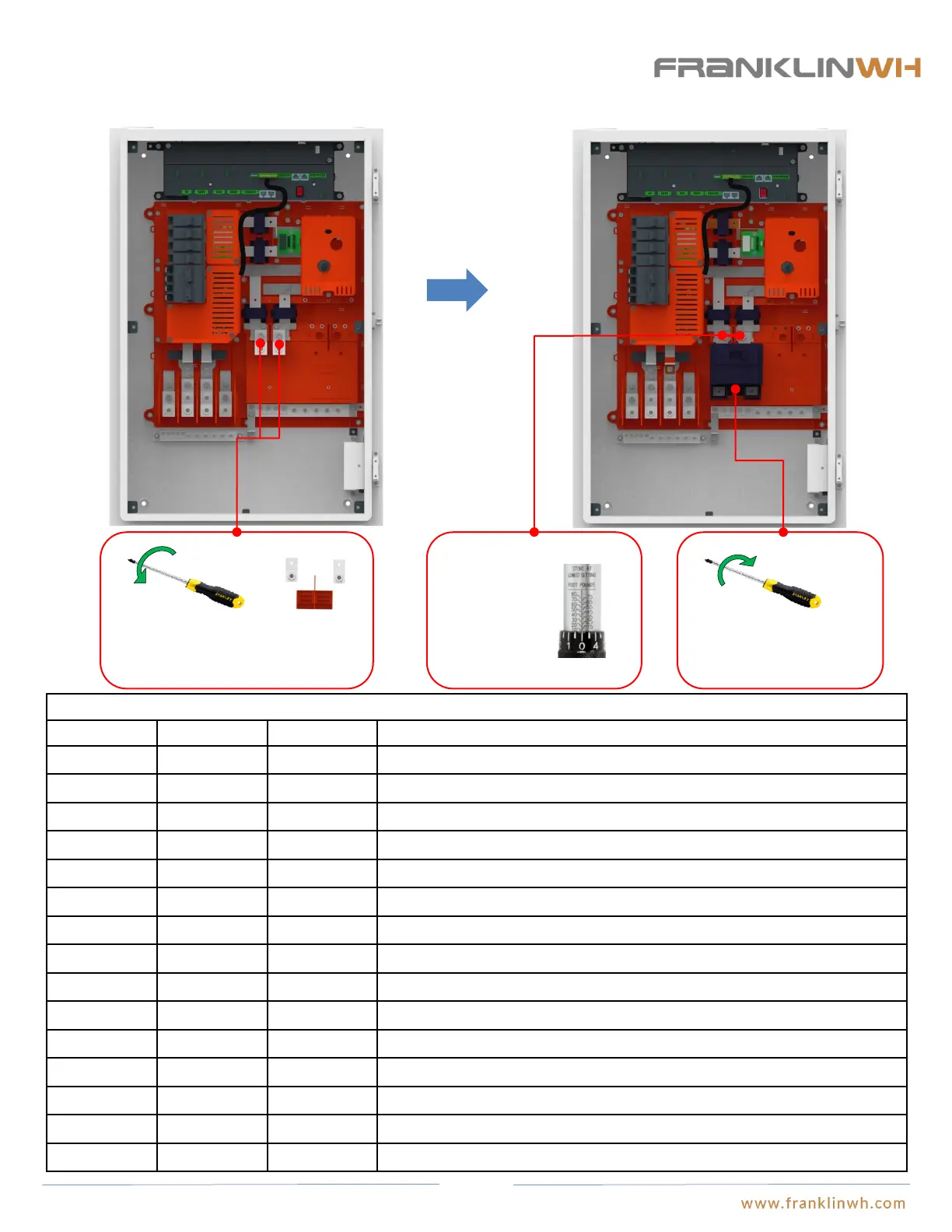

Install grid power supply switch in aGate
Table Optional circuit breakers for inputs of grid
S/N Model Current Description
1 CSR2100 100A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 100A/240V
2 CSR2125N 125A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 125A/240V
3 CSR2150N 150A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 150A/240V
4 CSR2175N 175A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 175A/240V
5 CSR2200N 200A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 200A/240V
6 BW2100 100A Eaton#Circuit Breaker; 2-Pole, 10kAIC, 100A/240V
7 BW2125 125A Eaton#Circuit Breaker; 2-Pole, 10kAIC, 125A/240V
8 BW2150 150A Eaton#Circuit Breaker; 2-Pole, 10kAIC, 150A/240V
9 BW2175 175A Eaton#Circuit Breaker; 2-Pole, 10kAIC, 175A/240V
10 BW2200 200A Eaton#Circuit Breaker; 2-Pole, 10kAIC, 200A/240V
11 BWH2100N 100A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 100A/240V
12 BWH2125N 125A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 125A/240V
13 BWH2150N 150A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 150A/240V
14 BWH2175N 175A
Eaton#Circuit Breaker; 2-Pole，25kAIC，175A/240V
15 BWH2200N 200A Eaton#Circuit Breaker; 2-Pole, 25kAIC, 200A/240V
Loosen the (2) M6x16 combination bolts by
turning counterclockwise using a #3X4”Phillips
head cross screwdriver until the screw is
completely removed.
Torque batch
4.63 lbf.ft or 56 in.-lbs.
Tighten the 2
M6x16
combination bolts
by turning
clockwise
using a torque
batch.
Tighten the (1) M4x12
combination bolt by turning
clockwise using a #3X4” Phillips
head cross screwdriver.
