Components

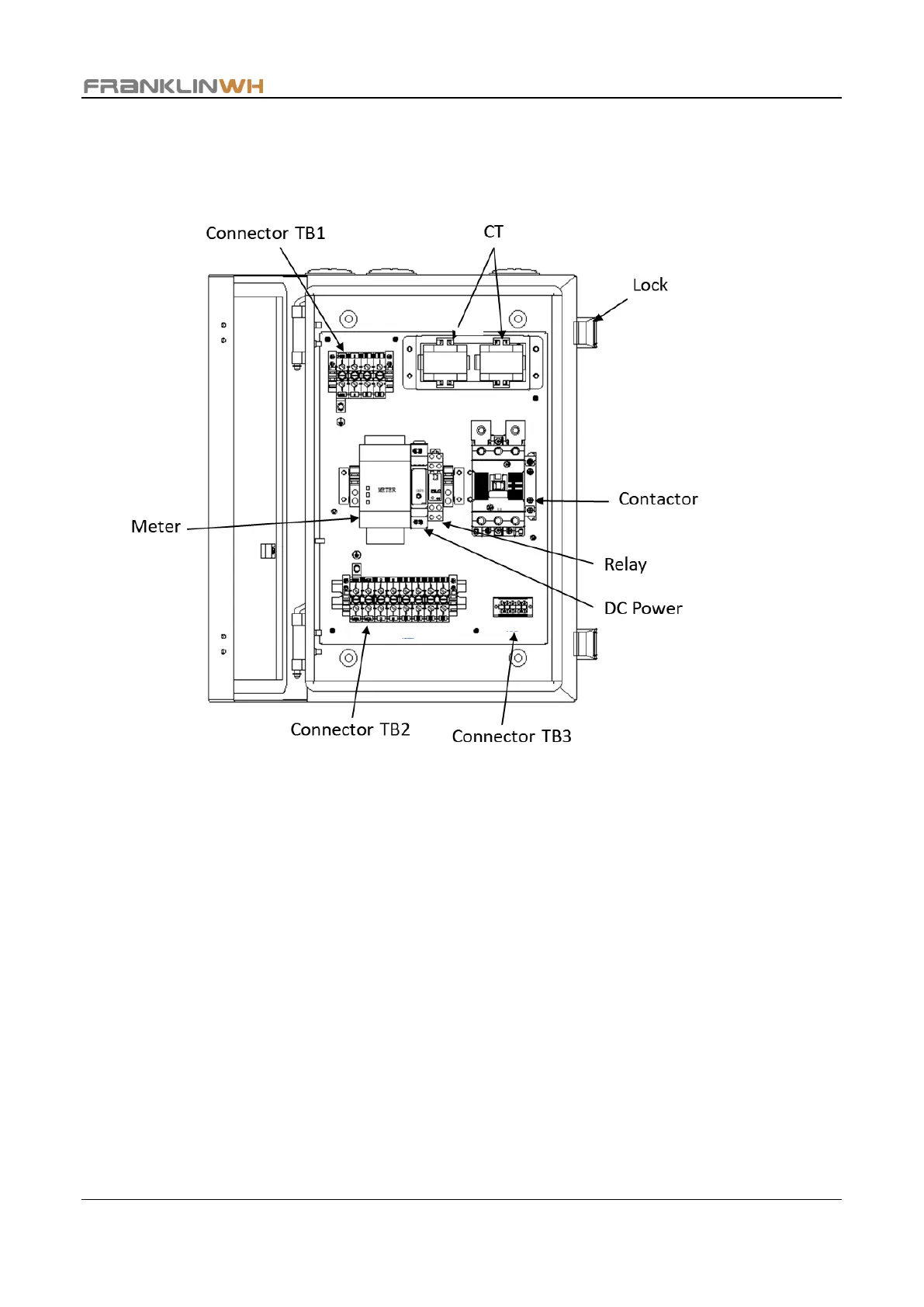

The RC65 includes the following components and features.
• Control System: Consisting of a DC Power, a relay and a contactor, executing the
command from the aGate that allows the RC65 to disconnect from or reconnect to the
PV system.
• Metering System: Metering the PV production by a built-in meter and CTs. The CTs
collect current data from the PV system and forward that data to the meter for
analysis and reporting to aGate.
• Connectors: The wiring connector including TB1, TB2 and TB3. TB1 is connected to
the grid (or an equivalent AC power). TB2 is connected to the PV system and TB3 is
connected to the aGate for communication.
