PV on the line side of the FHP
Installation of an RM65 is recommended when the PV system is directly connected to the
grid, to monitor the generation of the PV system and provide data to the FHP system.
NOTE
When there is a grid outage, the separated PV system will disconnect from the
grid and shut down.

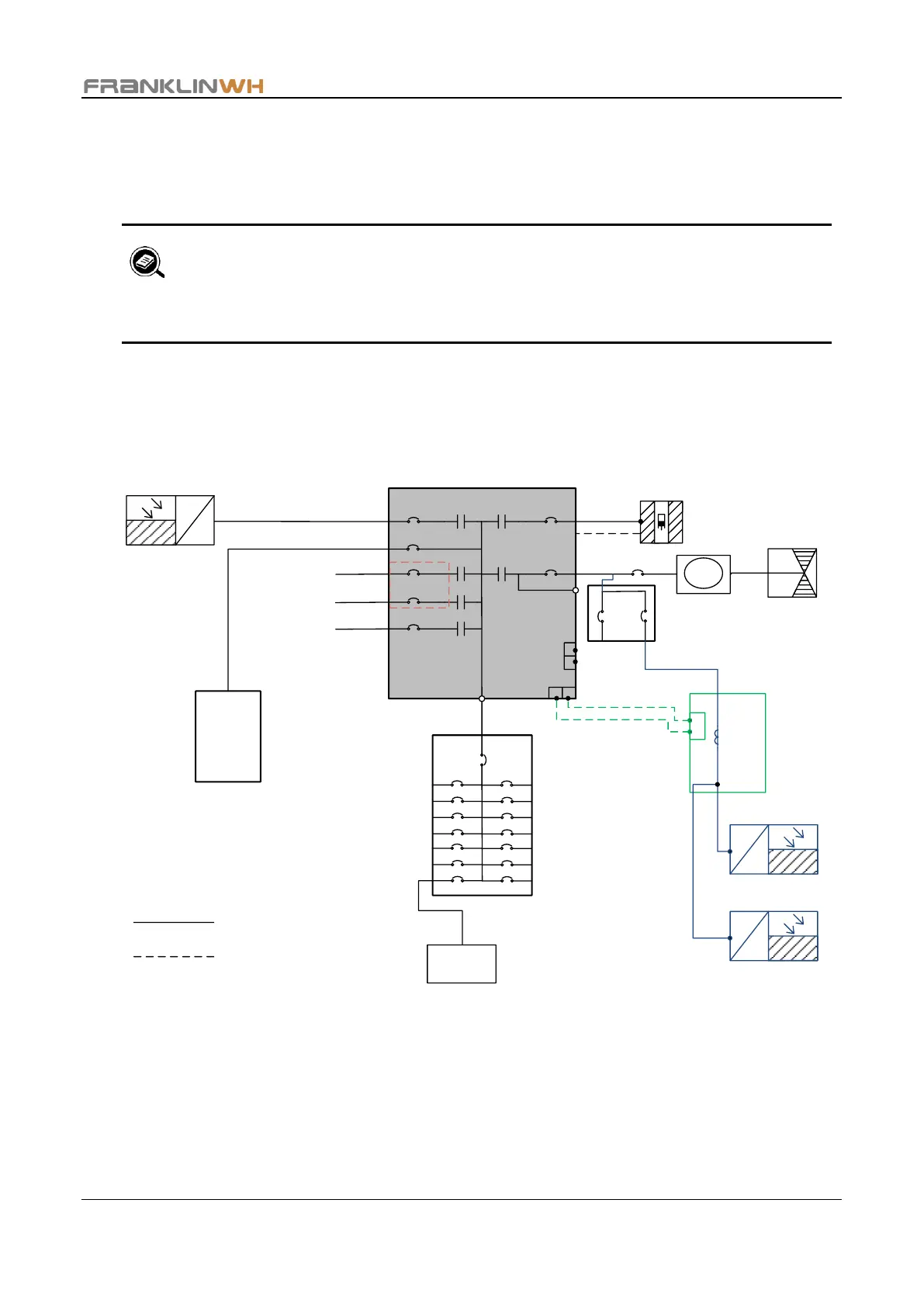

The example site layout is shown in the following figure.
PV Breaker
1# PV
~
=
Backup Panel
Generator
aPower
aGate
Power Cable
Signal Cable
2# PV
~
=
3# PV
~
=
Essential
Loads
CO
NO
DO
485A485B
aPbox
M
CT
M
Meter
Utility Grid
Backup Port
Smart Circuit 1
Smart Circuit 2
Smart Circuit 3
