INSTALLATION
When the governor is programmed at the factory there is a label on the governor
that species the engine type. If there is no label the engine type must be veried and/
or programmed.
Install Control Module
1. Measure and mark mounting location for control module panel cutout and
mounting screw holes. Make sure there is clearance behind the panel for
the module and cables before cutting holes. Refer to Figure 2 for layout and
dimensions.
2. Cut out a 9 3/4 by 4 1/4 inch hole and drill four holes for mounting screws.
3. Place control module in position and secure with four screws (10-32 mounting
hardware is recommended).
4. Connect cables at rear of the control module. (Refer to Wiring Section.)

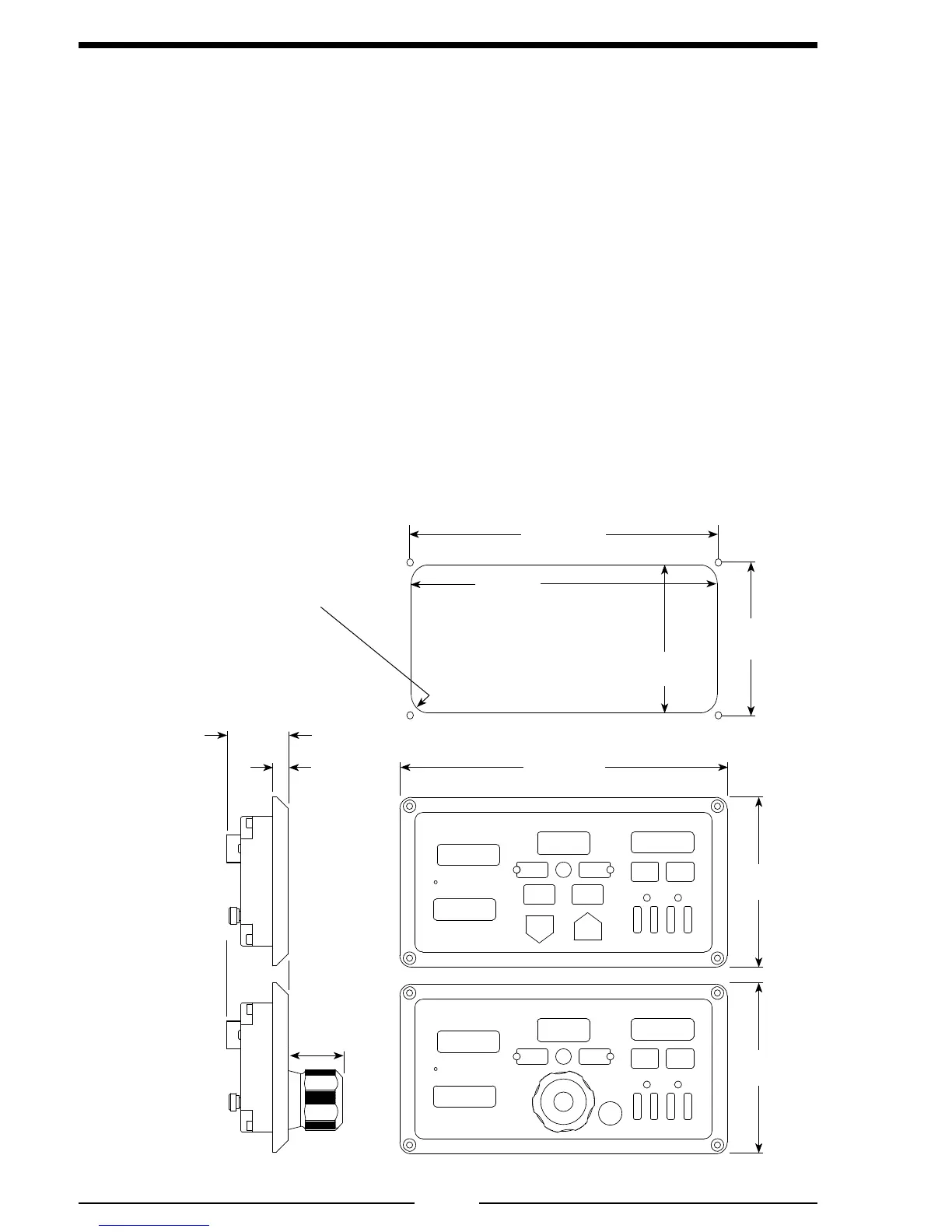

Figure 2. Control Module Mounting Dimensions
Mounting holes are
clearance or tapped
for 10-32 screws.
4 7/8"
4 1/4"
9 3/4"
9 7/8"
Panel
Cutout
Maximum
Radius
1/4"
10 1/2"
5 1/2"
5 1/2"
1/2"
2"
1 3/4"
TGA300
TGA400
