FRC InControl TGA300 - IVECO Harness Connections; IVECO CAN Bus Control Wiring

TGA300 Rev180405
46
CAN Bus Control
4
6
(–)
(+)
Pin 9 Black Wire
Pin 10 Red Wire
12-Pin
Connector
(Refer to
Figure 4)
IVECO Harness Connections
Interface Information
The vehicles shall be ordered with EM w/ CANopen (OPT0384) and FMS
(OPT14569). The CANopen XDC needs to be downloaded. This service is available
from the ofcial IVECO TeleService tool-chain worldwide. Also an adapter cable
needs to be installed to connect Controller to the CAN Bus. This option is currently
available only for EUROCARGO-V.
Note: Refer to Figure 5 (in the Product Manual) for the Connector
Wiring for Power and Interlock wire connections.

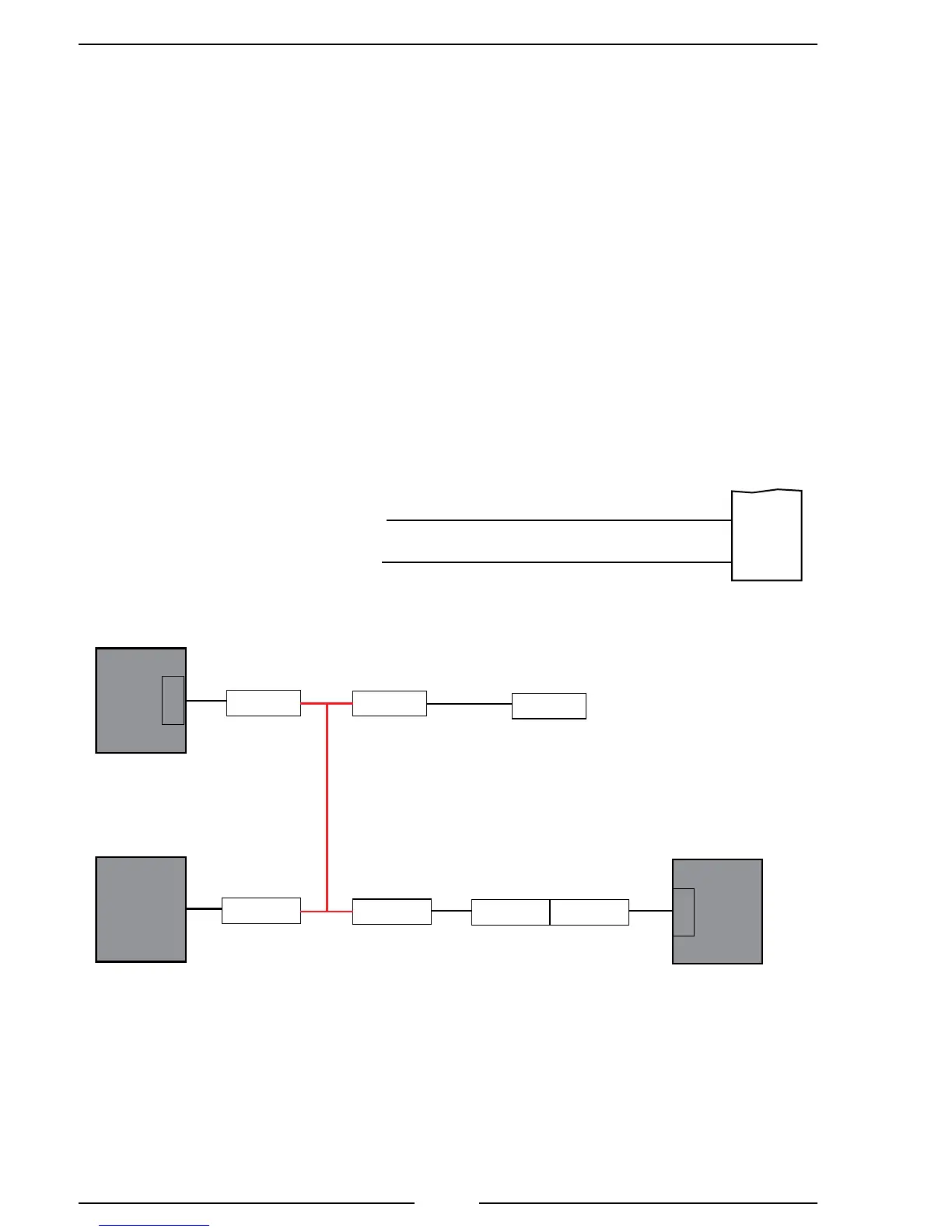

Wiring with TGA300 device
VCM
EM
120Ω
120Ω
ST13
ST72072C
ST72072C
ST72072CST72072D
ST72070
ST13
TGA300
Vehicle Interface Harness
9 Pin 72072C Connector
Pin 4 +
Pin 6 –
Adapter
NOTE: Contact IVECO dealer for
information regarding the Adapter
Figure 21. IVECO TGA326/426 Wiring
