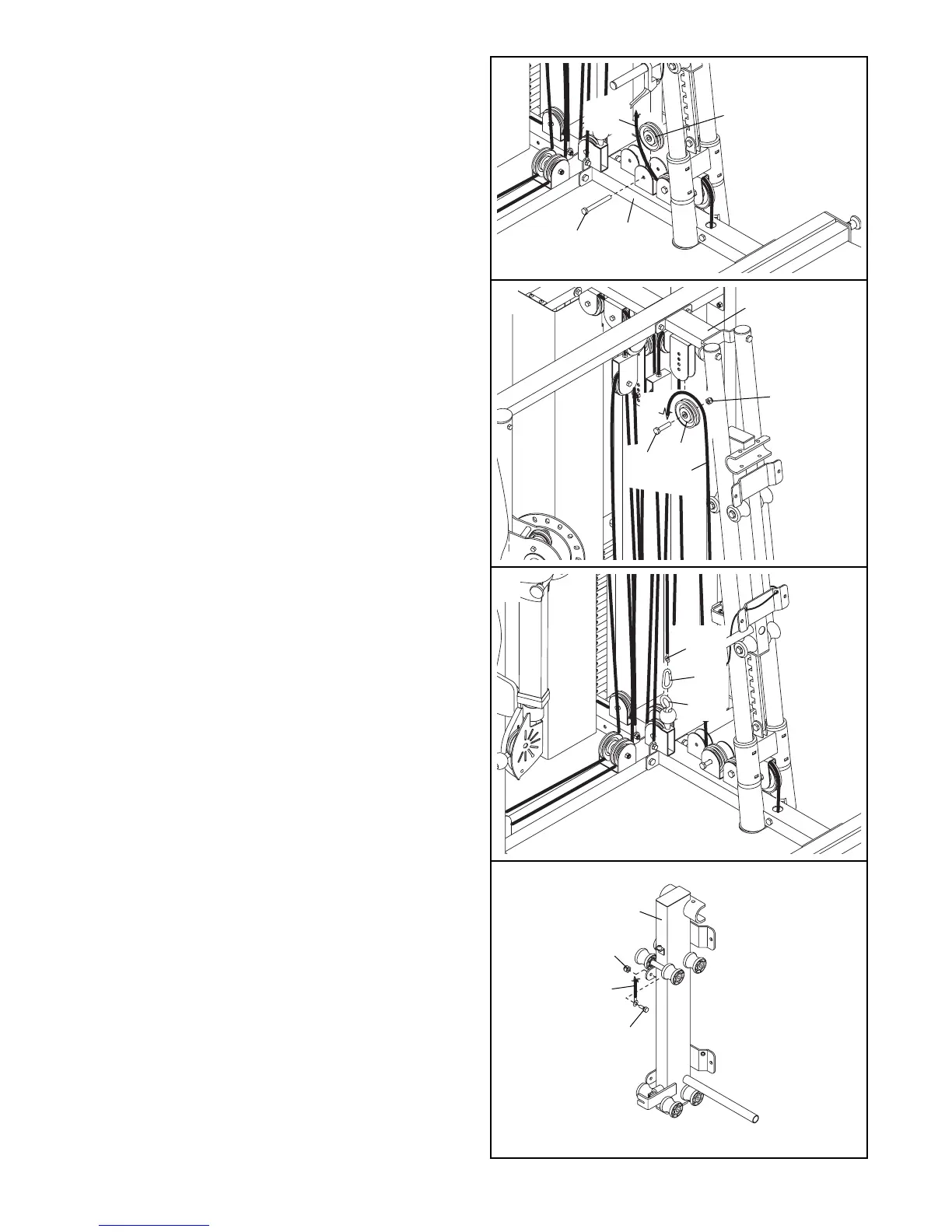

39. Wrap the Hack Squat Cable (139) over a 3 1/2”
Pulley (56) in the direction shown. Attach the
Pulley to the second set of holes from the bottom
of the indicated bracket on the Hack Squat Top
Frame (116) with an M10 x 46mm Button Bolt (76)
and an M10 Nylon Locknut (101).
38. Wrap the Hack Squat Cable (139) under a 3 1/2”
Pulley (56). Attach the Pulley to the indicated
bracket on the Hack Squat Base (111) with an
M10 x 78mm Button Bolt (79). Do not attach a
locknut yet.
38
79
116
56
111
39
101
40. Attach the Hack Squat Cable (139) to the Eyebolt
(42) with a Spring Clip (110).
40
42
110
139
76
139
56
41. Note: For clarity, the Hack Squat Backrest
Frame (118) is shown from the rear and sepa-
rate.
Locate the Short Cable (141). Attach the Cable
to the Hack Squat Backrest Frame (118) with an
M8 x 19mm Button Shoulder Bolt (85) and an M8
Nylon Locknut (102).
41
141
102
85
118
139
