FREE MOTION S83 - Page 15

15
34
41
56
76
62
101
35
1
85
102

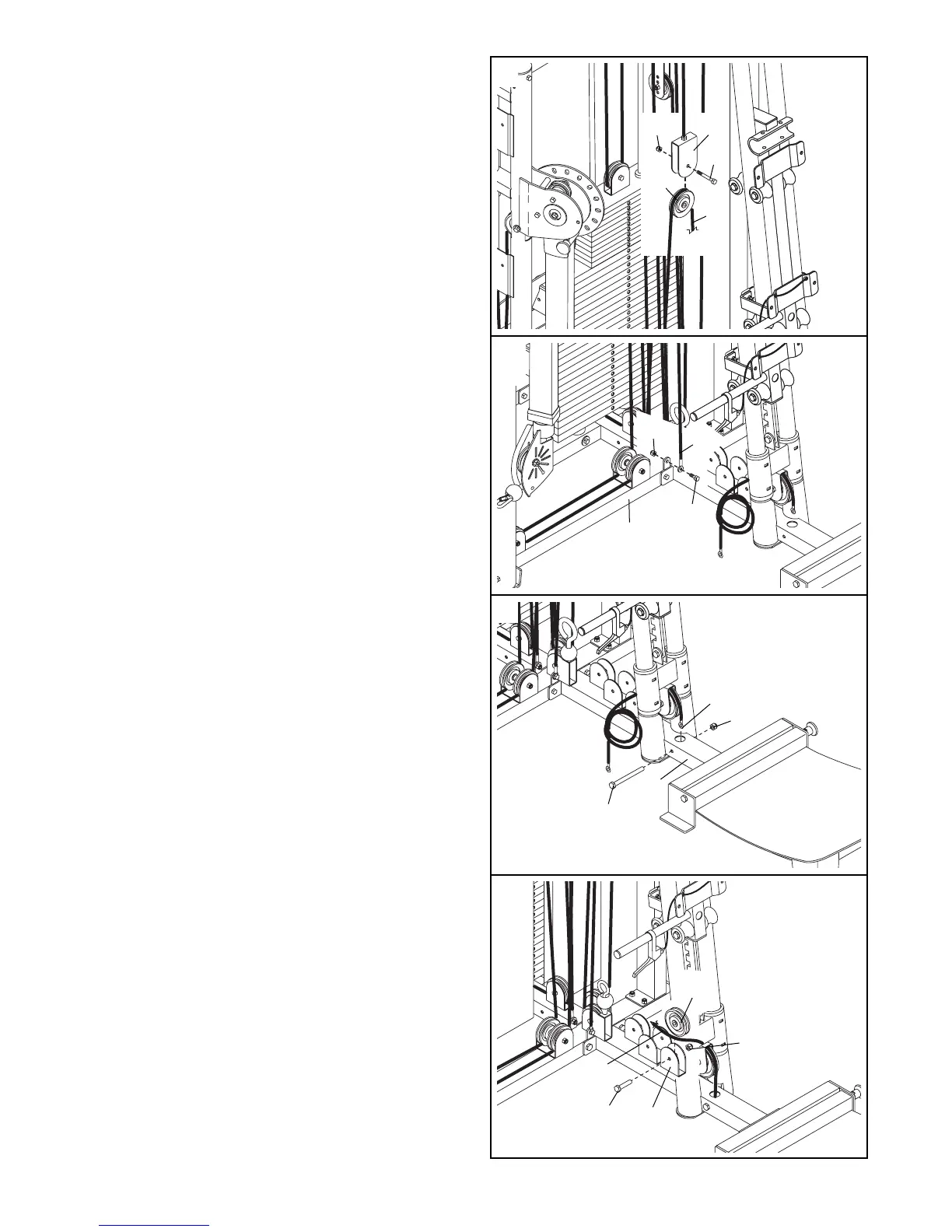

35. Attach the end of the Press Cable (41) to the indi-
cated bracket on the Base (1) with an M8 x
19mm Button Shoulder Bolt (85) and an M8
Nylon Locknut (102).
34. Wrap the Press Cable (41) over a 3 1/2” Pulley
(56). Attach the Pulley to the left “U”-bracket (62)
with an M10 x 46mm Button Bolt (76) and an M10
Nylon Locknut (101).
36. Remove the ties from the Hack Squat Cable
(139). Attach the indicated end of the Cable to
the Hack Squat Base (111) with an M10 x 88mm
Button Bolt (80) and an M10 Nylon Locknut (101).
36
139
101
111
80
37. Wrap the Hack Squat Cable (139) under a 3 1/2”
Pulley (56). Attach the Pulley to the indicated
bracket on the Hack Squat Base (111) with an
M10 x 46mm Button Bolt (76) and an M10 Nylon
Locknut (101).
37
111
76
101
139
41
56
