FREE MOTION S83 - Page 9

9

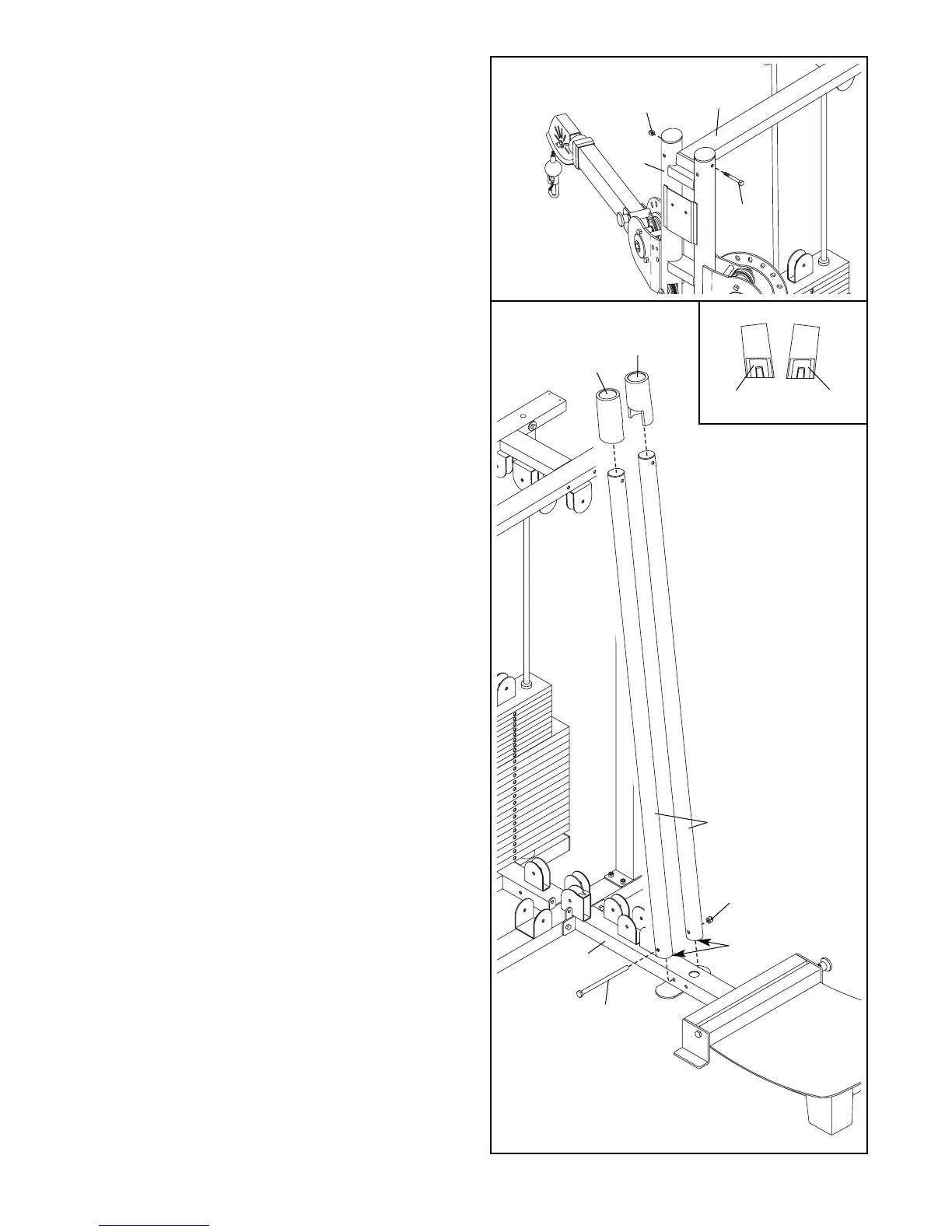

10. Attach the Top Frame (5) to the Backrest Frame
(6) with an M10 x 217mm Button Bolt (75) and an
M10 Nylon Locknut (101).
10
101
5
6
75
111
150
149
115
131
134
131
134
11. Remove the Hack Squat Uprights (115) from the
Squat Backrest Frame (not shown). Attach the
Hack Squat Uprights, with the angled ends at the
bottom, to the Hack Squat Base (111) with an
M10 x 186mm Button Bolt (149) and an M10
Jamnut (150). Do not tighten the Jamnuts yet.
Identify the Right and Left Plastic Covers (131,
134) (see the inset drawing). Orient the Plastic
Covers as shown, and slide them onto the Hack
Squat Uprights (115).
11
Angled
End
