1
A
2
B
C
3
DD
4
E
1. Use a servo tester or radio to center the
servo.
2.Use glue to attach the speed brake set (A) to both sides of the fuselage.
3.Use glue to attach servo(B) to the servo mount(C).
When installing, please note:
4.Ensure the servo and fuselage extension cables are properly attached and secure.
5.Insert the pushrod into the bolt of servo arm.
4.Keep the air brakes in the closed position, and tighten the screw of the bolt.
5.Test the system to make sure it is operating properly. Use glue to attach the servo
box cover in order to protect servo.
move forward toward the nose
EN

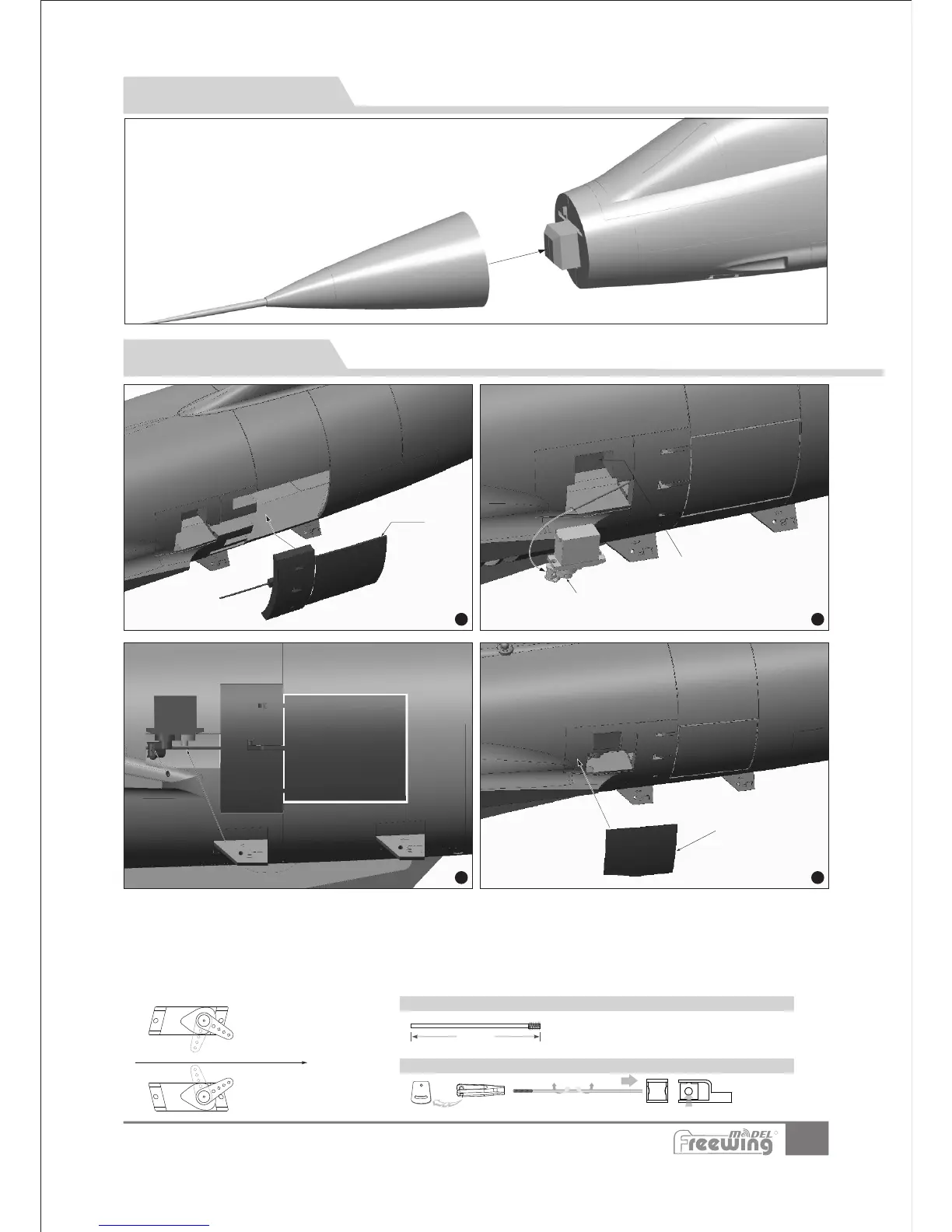

Air-Brake Installation
Step Step
StepStep
(1.97in)
50mm
Rotating the pushrod,will increase
or reduce it's length.
Air-brake pushrod size
Air-brake pushrod mounting hole
Pushrod diameter:Ø1.5mm
A-
B-16g Servo
C-Servo hard point.
Air-brake set
E-Servo cover
D-Pushrod
EN
Nose Cone Installation
Since a magnet is used to secure the nose cone, all you
need to do is to put it in place.
R
