Freewing T-45 Goshawk - Rudder and Nose Cone Installation; Rudder Installation; Nose Cone Installation

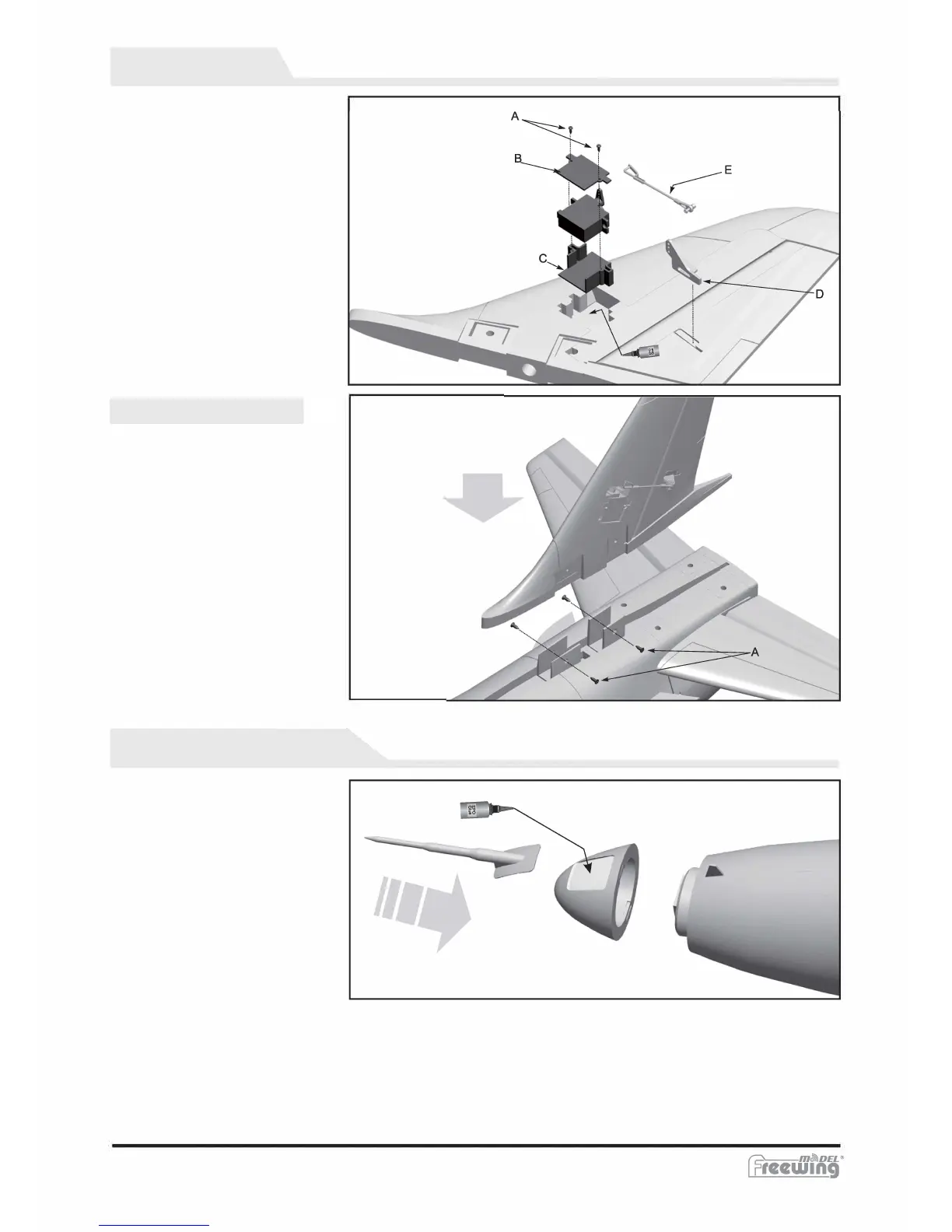

Rudder Installat i on
A- Screws (FA3x6mm 4pcs)
1.Use the 4 "Screws(A)" to attach
the rudder.
1. Use glue to attach the pitot tube to the
nose cone.
2.Nose cone and fuselage are connected
with magnets.
T-45 Goshawk
 
  
EN
-
-

-5-
Elevator Installation
A-Screws (PWA1.7x5mm 2pcs)
B - 17g servo cover
C - 17g servo box
D - Rudder control horn
E - Rudder push rod
1. Use a servo tester or radio to center
the servo.
2. Use glue to attach the "17g servo
box(C)" to the Vertical stabilizer and
the "Rudder horn(D)"to the rudder.
3. Place the 17g servo in the "17g servo
box(C)", then put the "17g servo
cover(B)"in place and secure it using
2 "Screws(A)".
4. Feed the open end of the pushrod
into the servo arm and lock it into
place with the provided lock.
5. Snap the clevis onto the ball link in
the "Rudder control horn(D)".
Nose Cone Installation
Refer to the photo on the right
Refer to the photo on the right
