40–01 Wheel Nut Check
IMPORTANT: After a wheel has been installed,
the wheel nut torque must be rechecked after
50 to 100 miles (80 to 160 km) of operation.
NOTICE
Insufficient wheel nut (rim nut) torque can cause
wheel shimmy, resulting in wheel damage, stud
breakage, and extreme tire tread wear. Excessive
wheel nut torque can break studs, damage
threads, and crack discs in the stud hole area.
Follow the tightening sequence shown in
Fig. 1,
using the recommended torque values in
Table 1.
Disc Wheel Fastener Torques
Description Nut Size Wheel Manufacturer Torque: lbf·ft (N·m)
10-Hole and 8-Hole Hub-Piloted Disc Wheel With Two-Piece Flange Nuts
*
Front and Rear Wheel Nut M22 x 1.5 All 450–500 (610–678)
*
Torque values for hub-piloted wheels are given for lubricated threads. Lubricate threads with SAE 30W engine oil. Do not apply thread lubricant to ball seats
of the nuts and wheels. Wipe it off if it is applied accidentally.
Table 1, Disc Wheel Fastener Torques
40–02 Tire Check
Tires should be inspected closely during the first
3000 to 10,000 miles (5000 to 16 000 km) for abnor-
mal wear.
Maintain the proper pressures for carried loads, per
the tire manufacturers’ recommendations, or the tire
pressure label on the driver’s door.
Have the wheel alignment checked after the first
10,000 miles (16 000 km), then every 40,000 miles
(60 000 km) thereafter.
Do not continue to drive the vehicle if tires develop
any of the following:
• blisters;
• cuts or punctures that reach to the cord;
• a nail, screw, rock, or other puncturing object;
• flat spots or irregular wear;
• tread worn to a minimum depth;
• inability to maintain proper tire pressure.
09/18/2001
AB
f400164
1
10
8
63
54
9
2
7
1
2
4
6
7
5
83
A. 8-Stud Disc Wheel B. 10-Stud Disc Wheel

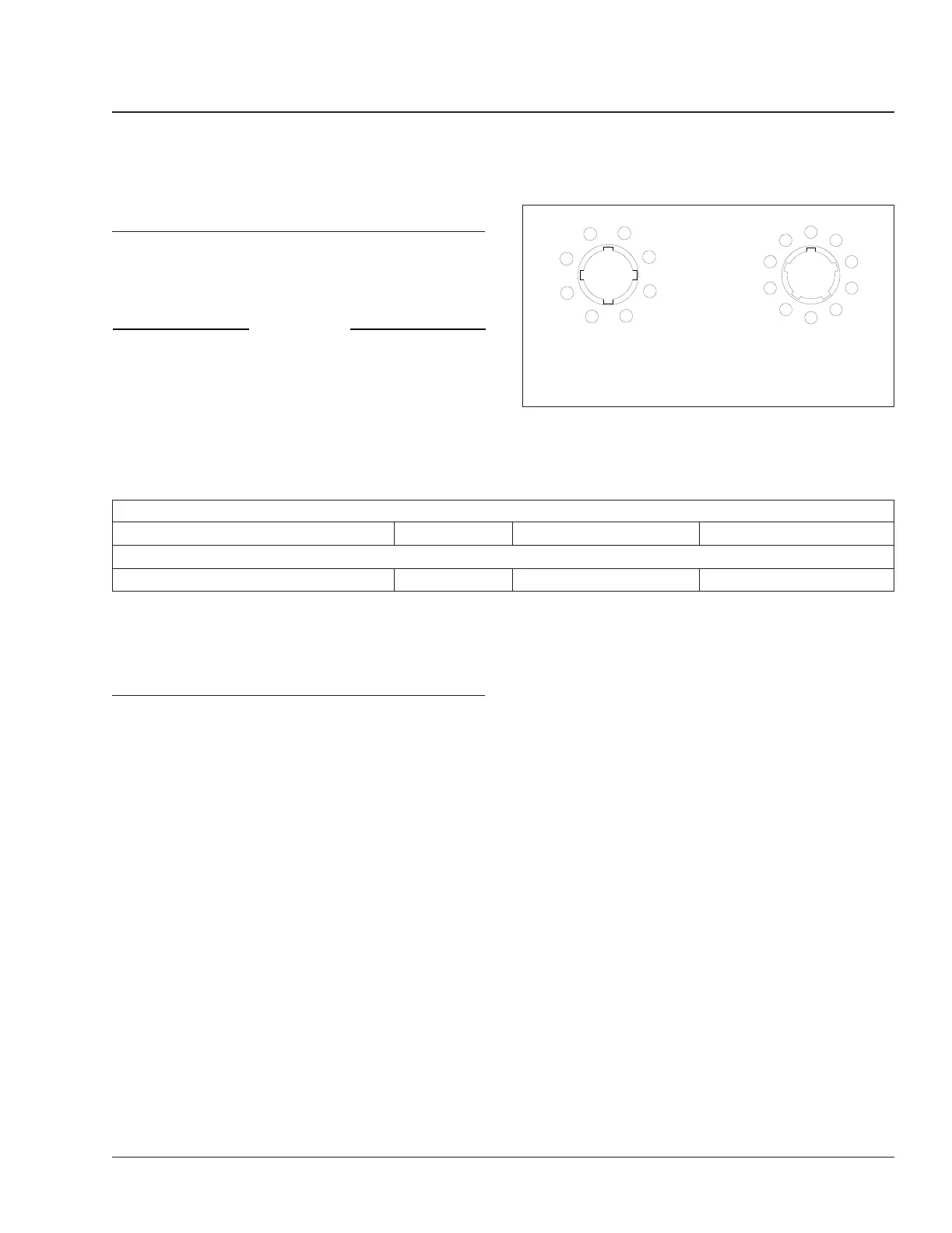

Fig. 1, Wheel Nut Tightening Sequence
Wheels and Tires 40
108SD and 114SD Maintenance Manual, December 2015 40/1
