5. Pull the filter out of the HVAC assembly.
6. Install a new filter in the HVAC assembly. Be
sure that the arrow on the filter is pointing toward
the evaporator. See
Fig. 2.
7. Remove the condensate seal from the
evaporator service cover and install a new
condensate seal on the cover.
8. Using capscrews, attach the evaporator service
cover to the HVAC assembly.
9. Connect the wiring harness to the evaporator
probe.
10. Attach the lower HVAC cover to the dash panel.
For instructions, see Group 60 of the Business
Class M2 Plus Workshop Manual.
11. Remove the chocks from the tires.
12/21/2001
f543878
1
2
3
4
1. Fan Cycling Switch
2. Moisture Indicator
3. Binary Switch
4. Receiver-Drier

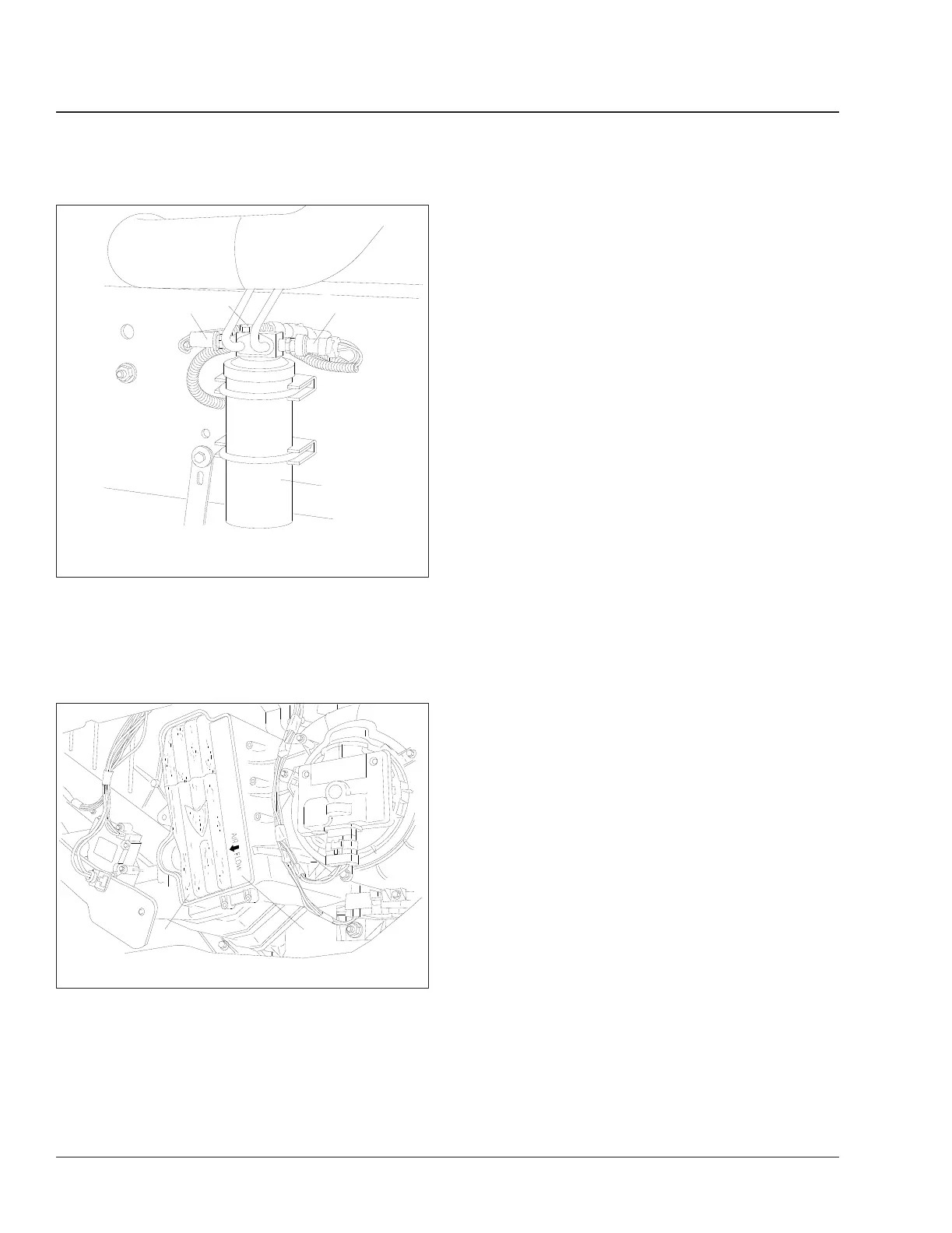

Fig. 1, Receiver-Drier
10/04/2001
f543921
2
1
1. Evaporator 2. Filter
Fig. 2, HVAC Assembly Filter
Heater and Air Conditioner83
Business Class M2 Plus Maintenance Manual, 02/10/202383/2
