Service door installation

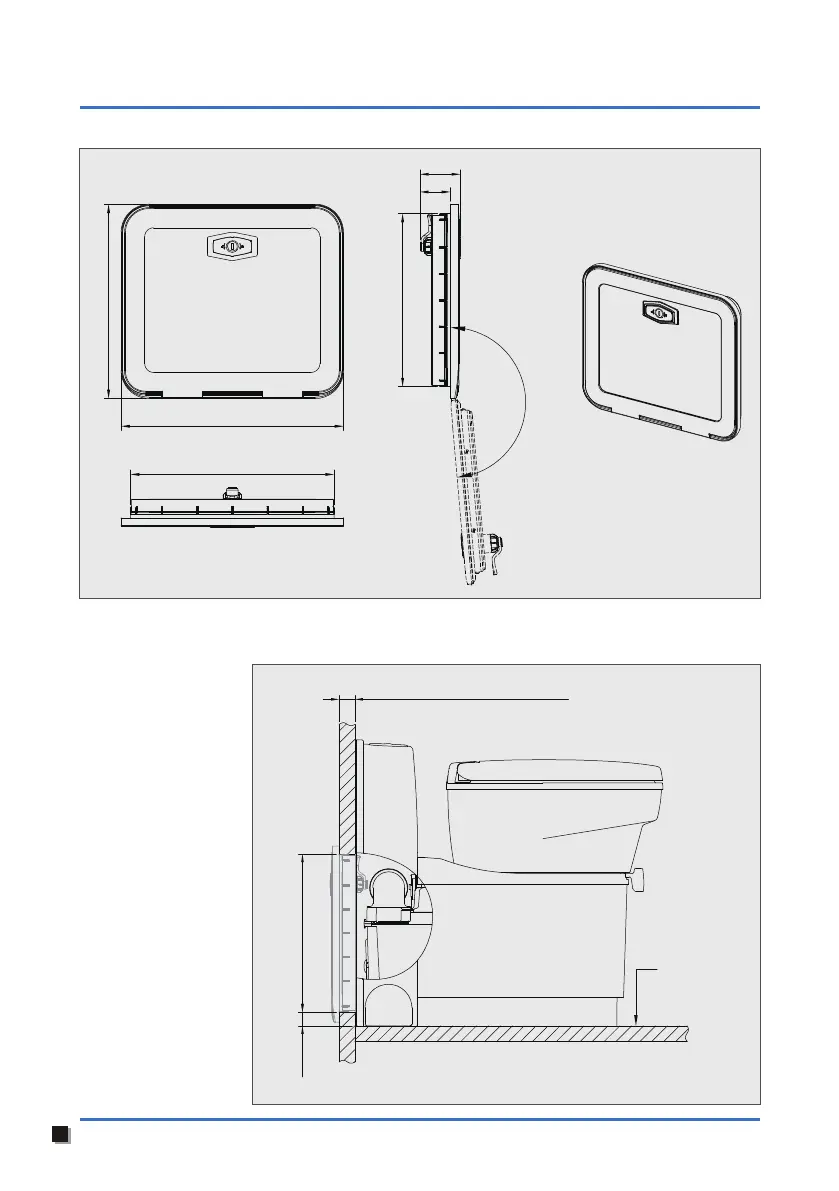

1. Door dimensions.

2. Opening position

Suitable wall thickness30-50mm

Interior ﬂoor

Opening height:297mm

26mm

11

295

69

175°

52

331.2

379

347

Unit: mm
