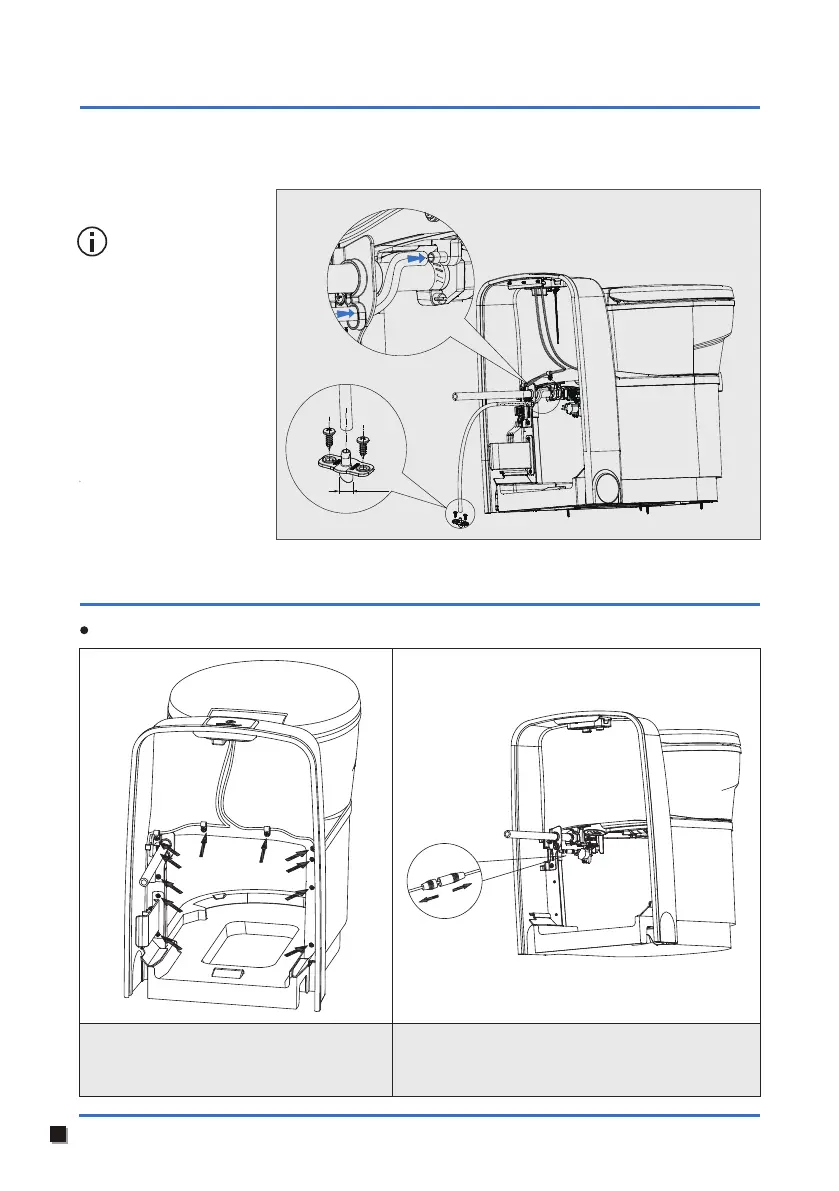

Install the vent hose & flange
Insert the vent hose through the limit hole on the fuse pressing plate, and then into the support
frame joint, connect the vent joint at the other end. Drill a 9mm hole at a suitable position on the
vehicle ground or side wall, and fix the vent joint on the hole with two ST4.2*13mm self-tapping
screws.
17
Console removal
Remove the W5000 console as follows:
1. Remove all the screws that secure the
backboard and keep them properly.
2. Remove the waterproof connector of solenoid
valve.
The installation
should avoid to
affect the loading
and unloading of
tank.
Ø9mm
To Next Page
