Connecting electricity
2. Use the following parameters to connect the power supply correctly.

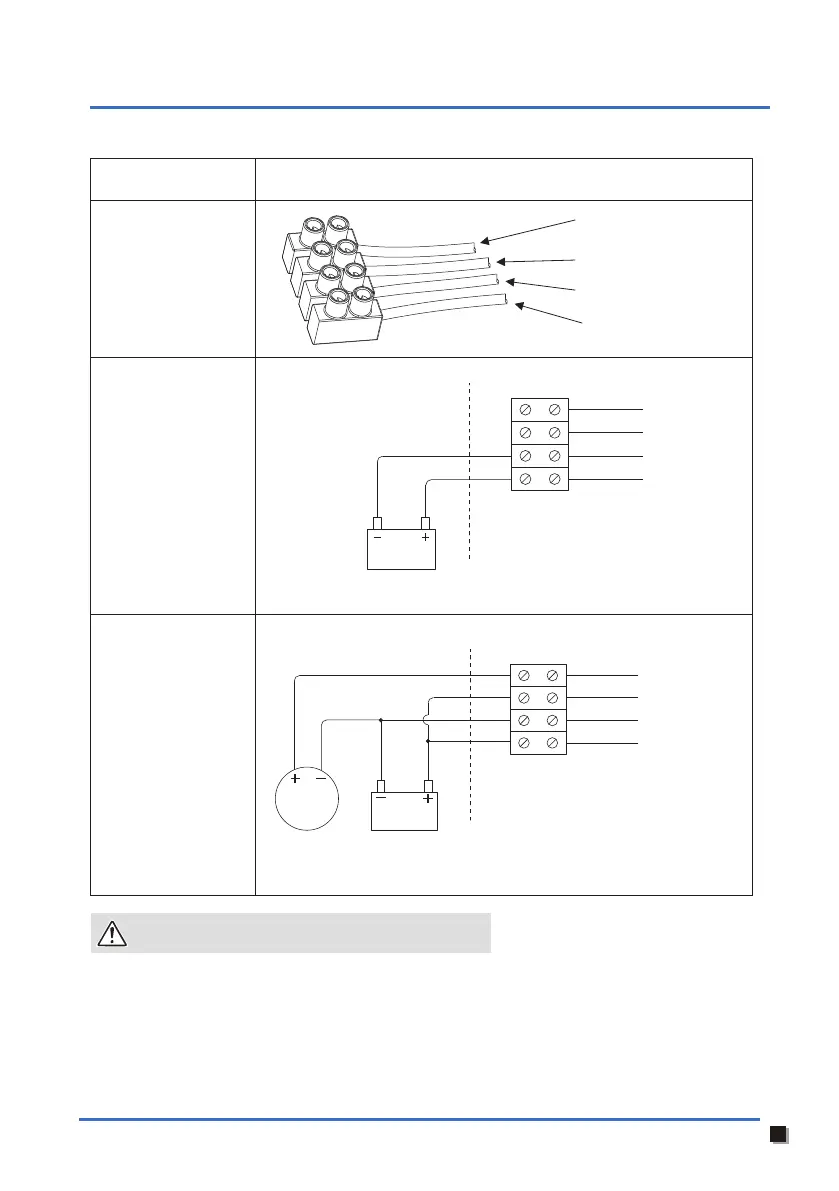

Position wiring
Cable connections
when the toilet is
connected to a
pressure system
The power supply specifications: 12V DC.
4 terminal blocks
12V DC
12V DC power supply
The red cable is positive.
The black cable is negative.
The brown cable is positive.
Connect the blue cable to the positive
connection of the pump.
The red cable is positive.
The black cable is negative.
4 terminal blocks
12V DC
P
12V DC power
supply
External
flush pump
Connector 4 terminal blocks
Blue
Brown
Black
Red
Blue
Brown
Black
Red
Blue
Brown
Black
Red
Cable connections
when the toilet is
connected to a
non-pressure
system
