FRICK QUANTUM™ CONDENSER/VESSEL CONTROL PANEL S90-555 M
MAINTENANCE Page 17

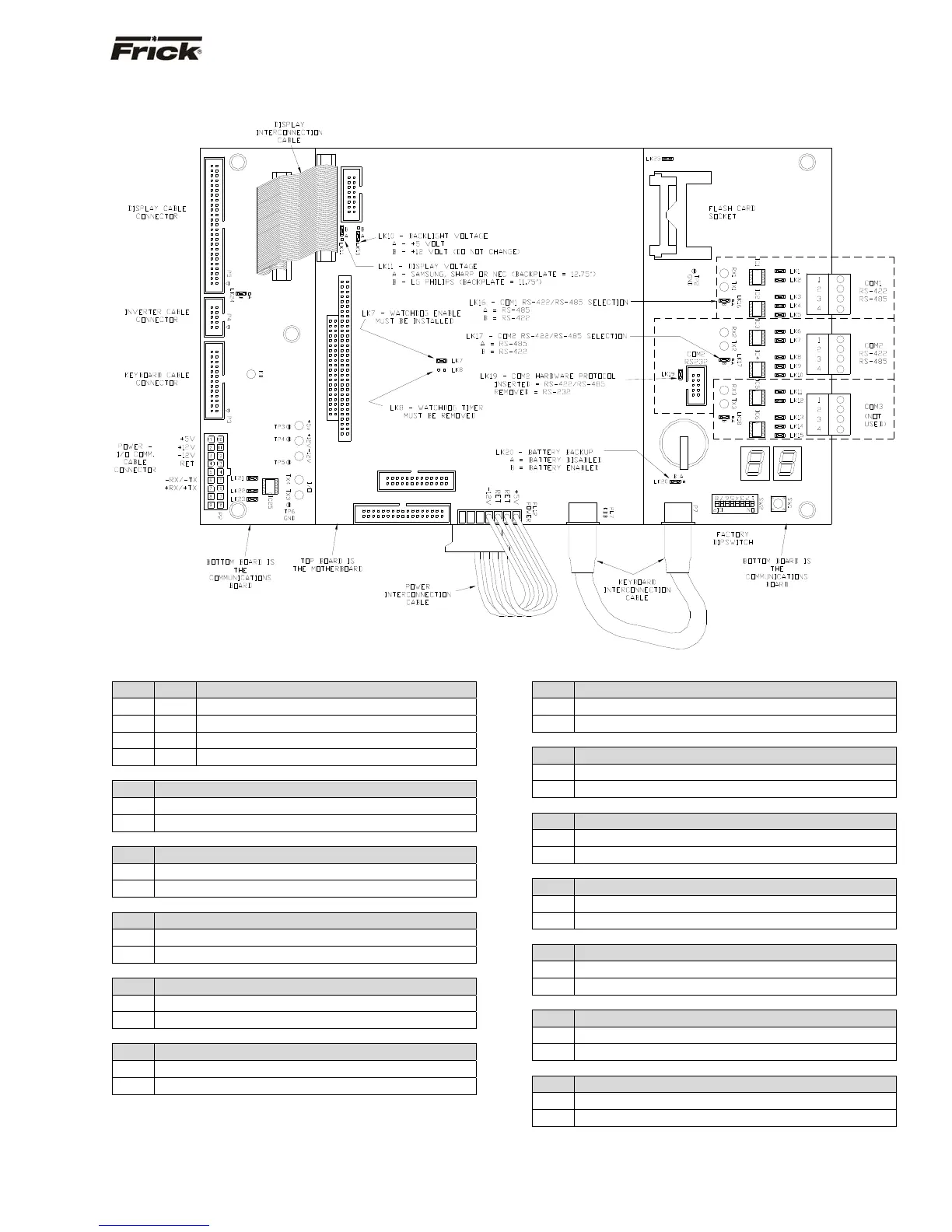

QUANTUM™ 3 MAIN PROCESSOR BOARD
Quantum™ 3 Motherboard Jumpers
LK1-1 LK1-2 COM3 IRQ Routing (DO NOT MODIFY)
A * A * RS-232 Interface Selected
A B Not Valid Combination
B A Not Valid Combination
B B Touchscreen Controller Interface Selected
LK2 COM3 IRQ Routing (DO NOT MODIFY)
A IRQ4
B * IRQ11
LK3 COM4 IRQ Routing (DO NOT MODIFY)
A IRQ3
B * IRQ10
LK4 RS-422 Termination (DO NOT MODIFY)
In * RS-422 Terminated
Out RS-422 Terminated
LK5 RS-485 Receiver (DO NOT MODIFY)
In RS-485 Receiver Enabled
Out * RS-485 Receiver Disabled
LK6 RS-485 Termination (DO NOT MODIFY)
In * RS-485 Terminated
Out RS-485 Not Terminated
* Standard Setting
LK7 Watchdog Timer Enable
In Enabled
Out * Disabled
LK8 Watchdog timer Enable
In 2 second timeout
Out * 8 second timeout
LK9 Clear CMOS/Battery Disable (DO NOT MODIFY)
A Battery Backup Enabled
B * Battery Backup Disabled (CMOS RAM Cleared)
LK10 LCD Backlight Voltage Supply Voltage
A +5V Backlight
B * +12V Backlight
LK11 LCD Panel Power Supply Voltage
A * +5V Supply (Samsung, NEC or Sharp Displays)
B +3.3V Supply (LG Phillips Display)
LK12 User Application Link (DO NOT MODIFY)
In * Bit 1 of 259H "Logic 1"
Out Bit 1 of 259H "Logic 0"
LK13 User Application Link (DO NOT MODIFY)
In * Bit 2 of 259H "Logic 1"
Out Bit 2 of 259H "Logic 0"
