S90-555 M FRICK QUANTUM™ CONDENSER/VESSEL CONTROL PANEL
Page 22 MAINTENANCE

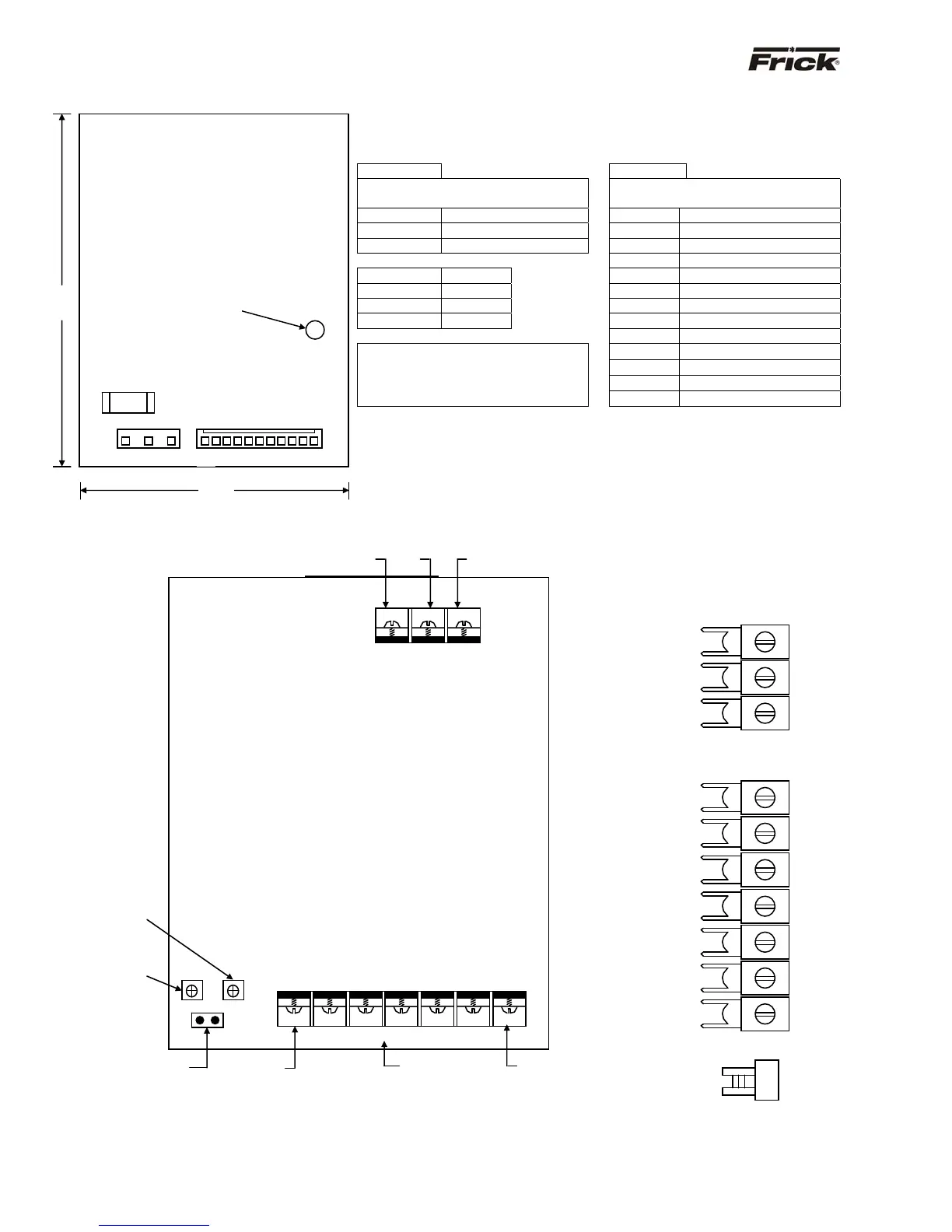

QUANTUM™ PANEL DC POWER SUPPLY DIAGRAM (CONDOR)
INPUT: J1 INPUT: J2
AMP P/N: 640445-5
.312 CTR CONNECTOR, 3 CIRCUITS
AMP P/N: 1-640445-3
.156 CTR CONNECTOR, 13 CIRCUITS
Pin 1 AC GROUND PIN 1 OUTPUT #1
Pin 3 AC NEUTRAL PIN 2 OUTPUT #1
PIN 5 AC LINE PIN 3 OUTPUT #1
PIN 4 COMMON
OUTPUT 1 +5.1V PIN 5 COMMON
OUTPUT 2 +24V PIN 6 COMMON
OUTPUT 3 -12V PIN 7 COMMON
OUTPUT 4 12V PIN 8 OUTPUT #2
PIN 9 OUTPUT #2
MATING CONNECTORS: MOLEX
HOUSING CONTACT
INPUT 26-03-4050 08-52-0113
OUTPUT 26-03-4131 08-52-0113
PIN 10 POWER FAIL
PIN 11 OUTPUT #3
PIN 12 COMMON
PIN 13 OUTPUT #4
QUANTUM™ PANEL D.C. POWER SUPPLY DIAGRAM (POWER-ONE)
7.25
Replacement Part # 640C0022G01
R51
+5V ADJ
3.15
F1
5
1
J1
1
13
J2
4.50
7
1
3
1
Pin 3 TB1 Pin 1
Replacement Part # 640C0022G11
V2
(+12V) ADJ
V1
(+5V) ADJ
Pin 7 J1
Pin 1
TB1
GND
NEUTRAL
Pin 3
HOT
Pin 1
V4 (+12)
TB2
V3 (-12V)
V2 (+12V)
GND
GND
V1 (+5V)
V1 (+5V)
Pin 7
J1
POWER FAILURE
SIGNAL
GND
TB2 Pin 1
