Frick SGC 1913 - Page 12

070.650-IOM (AUG 2015)
Page 12
SGC ROTARY SCREW COMPRESSOR
INSTALLATION
SE-1: SLIDE STOP
LINEAR TRANSMITTER
SE-2: SLIDE VALVE
LINEAR
TRANSMITTER
DISCHARGE
PORT
10" CLASS 300
FLANGE
SC-7: SEAL
WEEPAGE

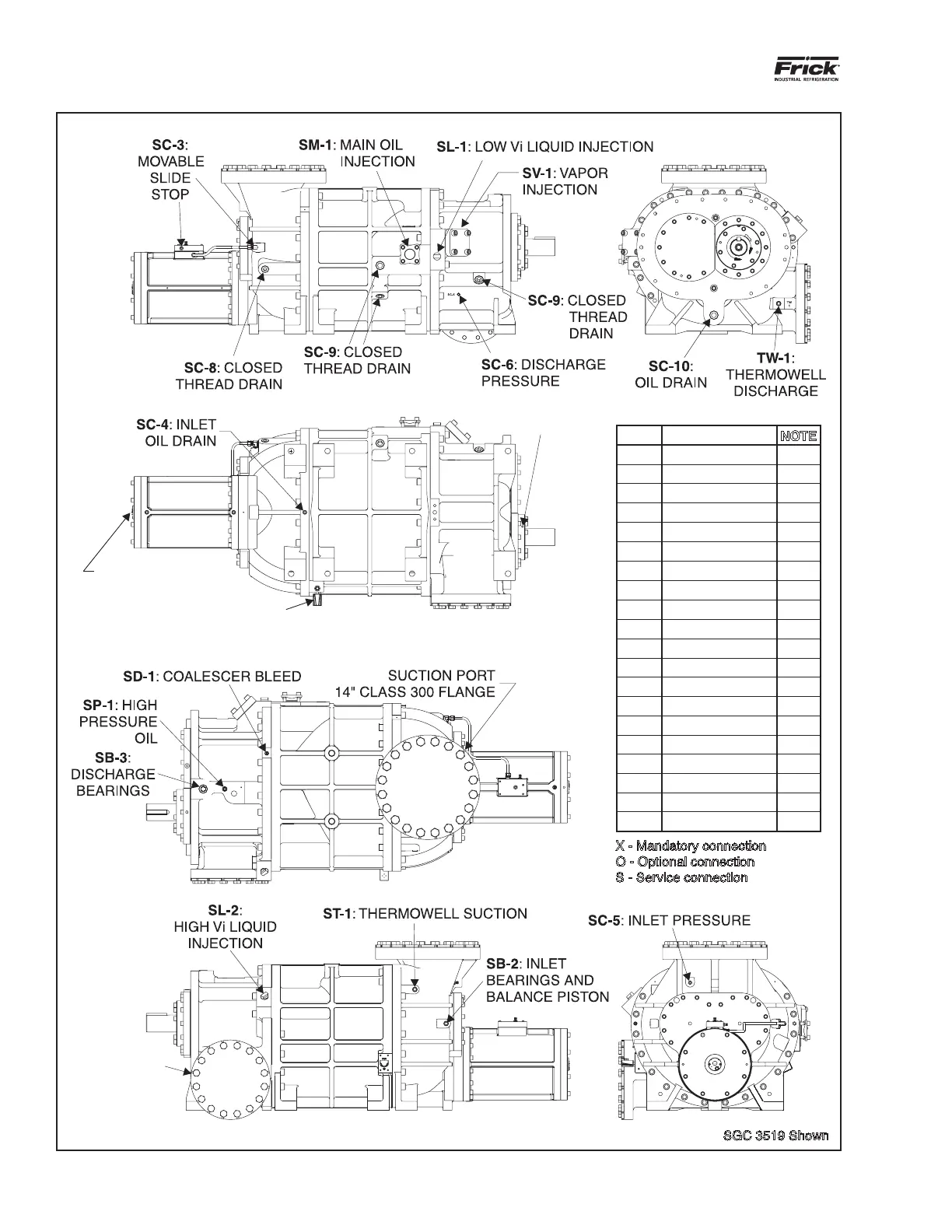

Figure 7. Port Locations, SGC 3511/3515/3519
SGC 3519 Shown
PORT THREAD SIZE NOTE
SB-2
³\₄ - 14 NPTF
X
SB-3
1 Z\₂ 11Z\₂ NPTF
X
SC-3
Z\₂ - 14 NPTF
X
SC-4
Z\₂ - 14 NPTF
S
SC-5
³\₈ - 18 NPTF
O
SC-6
³\₈ - 18 NPTF
O
SC-7
Z\₈ - 27 NPTF
O
SC-8
1 Z\₄ 11Z\₂ NPTF
S
SC-9
1 Z\₂ 11Z\₂ NPTF
S
SC-10
1 Z\₂ 11Z\₂ NPTF
S
SD-1
Z\₂ - 14 NPTF
O
SE-1 DIN Connector X
SE-2 DIN Connector X
SL-1
1 Z\₄ 11Z\₂ NPTF
O
SL-2
1 Z\₄ 11Z\₂ NPTF
O
SM-1 2" Square Flange X
ST-1
³\₄ - 14 NPTF
O
SV-1 3" Square Flange O
TW-1
³\₄ - 14 NPTF
O
SP-1
³\₄ - 14 NPTF
X
X - Mandatory connection
O - Optional connection
S - Service connection
