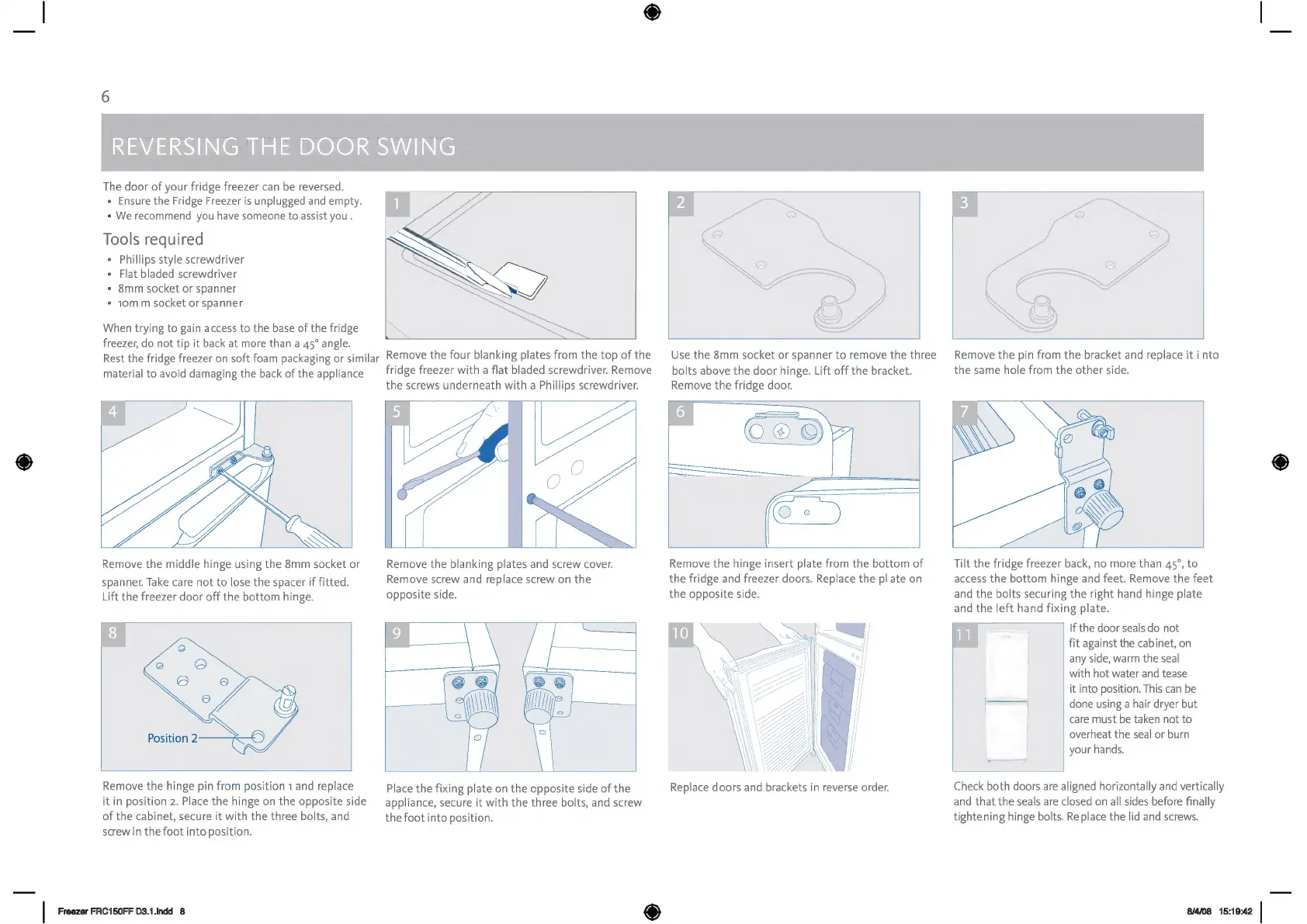

REVERSING THE DOOR SWING
The door of your fridge freezer can be reversed.
e Ensure the Fridge Freezer is unplugged and empty.
e We recommend you have someone to assist you .
Tools required
e Phillips style screwdriver
e Flat bladed screwdriver
* 8mm socket or spanner
e 10mm socket or spanner
When trying to gain access to the base of the fridge
freezer, do not tip it back at more than a 45° angle.
Rest the fridge freezer on soft foam packaging or similar Remove the four blanking plates from the top of the Use the 8mm socket or spanner to remove the three Remove the pin from the bracket and replace it i nto
material to avoid damaging the back of the appliance fridge freezer with a flat bladed screwdriver. Remove bolts above the door hinge. Lift off the bracket. the same hole from the other side.
the screws underneath with a Phillips screwdriver. Remove the fridge door.
a ==
\
Z
xC
k
6
al
©
Remove the middle hinge using the 8mm socket or Remove the blanking plates and screw cover. Remove the hinge insert plate from the bottom of Tilt the fridge freezer back, no more than 45°, to
spanner. Take care not to lose the spacer if fitted. Remove screw and replace screw on the the fridge and freezer doors. Replace the pl ate on access the bottom hinge and feet. Remove the feet
Lift the freezer door off the bottom hinge. opposite side. the opposite side. and the bolts securing the right hand hinge plate
and the left hand fixing plate.
11 on If the door seals do not
| fit against the cabinet, on
| any side, warm the seal
with hot water and tease
it into position. This can be
gees done using a hair dryer but
care must be taken not to
overheat the seal or burn
Wi | ty I your hands.
\ \\ \ || —
N) \
Remove the hinge pin from position 1 and replace Place the fixing plate on the opposite side of the Replace doors and brackets in reverse order. Check both doors are aligned horizontally and vertically
it in position 2. Place the hinge on the opposite side appliance, secure it with the three bolts, and screw and that the seals are closed on all sides before finally
of the cabinet, secure it with the three bolts, and the foot into position. tightening hinge bolts. Replace the lid and screws.
screw in the foot into position.
