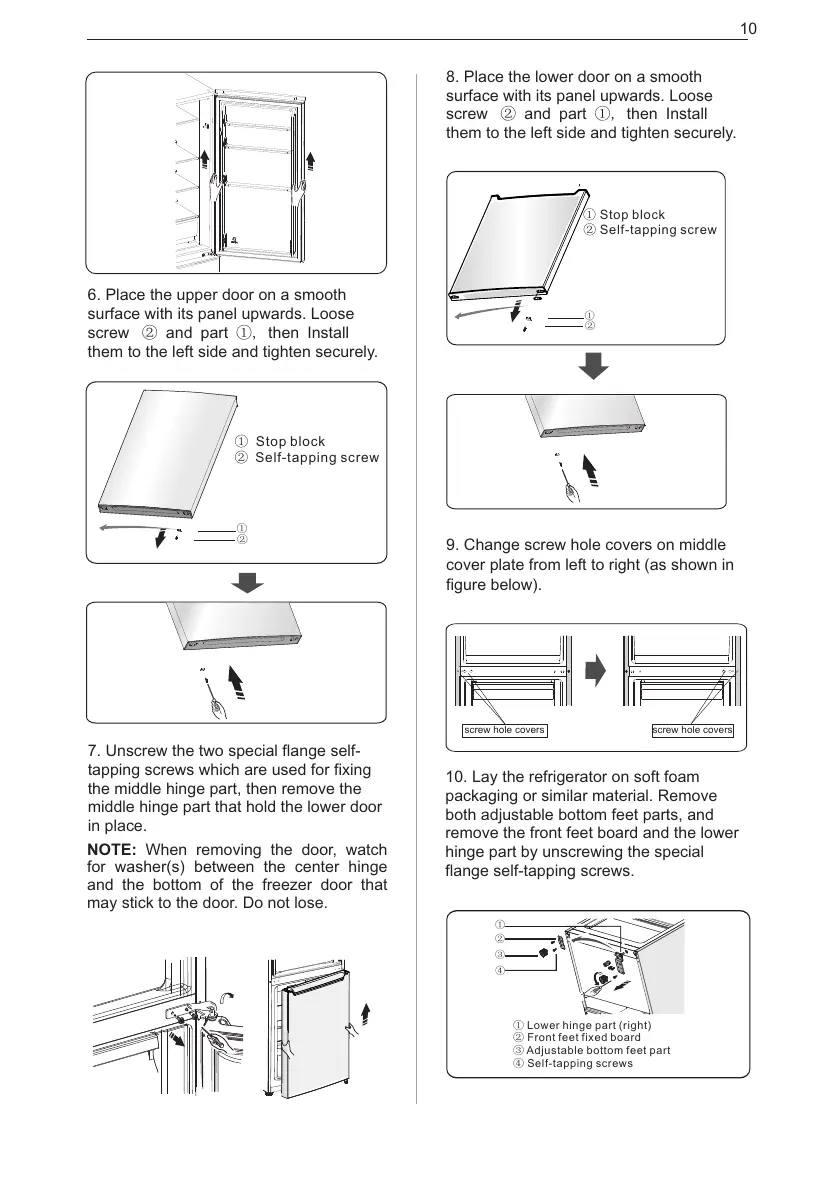

Fridgemaster MC55264A - Page 10

①
① Lowerhingepart(right)
② Frontfeetfixedboard
②
④
④ Self-tappingscrews
③
③ Adjustablebottomfeetpart
10
6.Placetheupperdooronasmooth
surfacewithitspanelupwards.Loose
screw and part then Install
themtotheleftsideandtightensecurely.
② ①,
7.Unscrewthetwospecialflangeself-
tappingscrewswhichareusedforfixing
themiddlehingepart,thenremovethe
middlehingepartthatholdthelowerdoor
inplace.
NOTE: When removing the door, watch
for washer(s) between the center hinge
and the bottom of the freezer door that
maysticktothedoor.Donotlose.
8.Placethelowerdooronasmooth
surfacewithitspanelupwards.Loose
screw and part then Install
themtotheleftsideandtightensecurely.
② ①,
9.Changescrewholecoversonmiddle
coverplatefromlefttoright(asshownin
figurebelow).
screwholecovers
screwholecovers
10.Laytherefrigeratoronsoftfoam
packagingorsimilarmaterial.Remove
bothadjustablebottomfeetparts,and
removethefrontfeetboardandthelower
hingepartbyunscrewingthespecial
flangeself-tappingscrews.
① Stopblock
①
②
②
Self-tappingscrew
① Stopblock
② Self-tappingscrew
①
②
