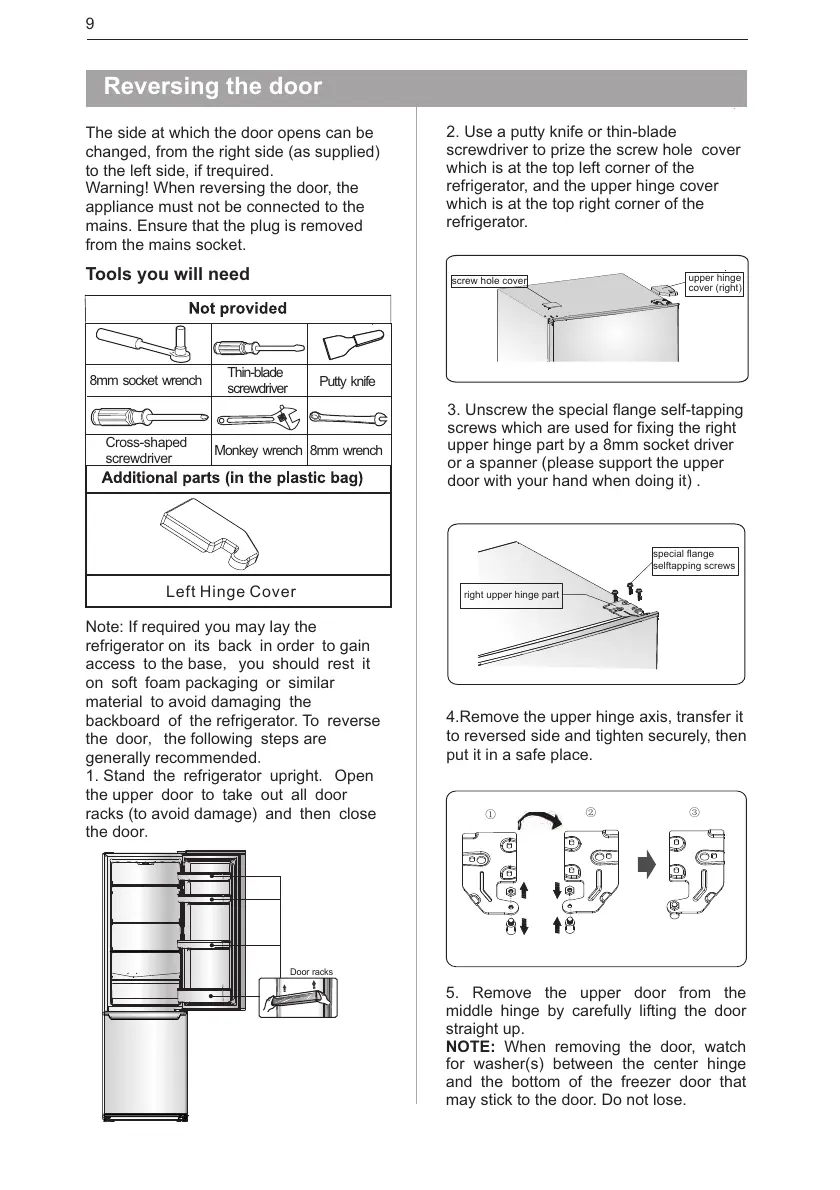

Fridgemaster MC55264A - Reversing the Door

Thesideatwhichthedooropenscanbe
changed,fromtherightside(assupplied)
totheleftside,iftrequired.
Warning!Whenreversingthedoor,the
appliancemustnotbeconnectedtothe
mains.Ensurethattheplugisremoved
fromthemainssocket.
Toolsyouwillneed
LeftHingeCover
8mmwrench
8mmsocketwrench
Monkeywrench
Thin-blade
screwdriver
Cross-shaped
screwdriver
2.Useaputtyknifeorthin-blade
screwdrivertoprizethescrewholecover
whichisatthetopleftcornerofthe
refrigerator,andtheupperhingecover
whichisatthetoprightcornerofthe
refrigerator.
Reversingthedoor
Note:Ifrequiredyoumaylaythe
refrigeratoron its back inorder togain
access tothebase you should rest it
on soft foampackaging or similar
material toavoiddamaging the
backboard of therefrigerator. To reverse
the door thefollowing steps
,
, are
generallyrecommended
1.Stand the refrigerator upright Open
theupper door to take out all door
racks(toavoiddamage) and then close
thedoor
.
.
.
Puttyknife
3.Unscrewthespecialflangeself-tapping
screwswhichareusedforfixingtheright
upperhingepartbya8mmsocketdriver
oraspanner(pleasesupporttheupper
doorwithyourhandwhendoingit).
rightupperhingepart
specialflange
selftappingscrews
4.Removetheupperhingeaxis,transferit
toreversedsideandtightensecurely,then
putitinasafeplace.
①
② ③
5. Remove the upper door from the
middle hinge by carefully lifting the door
straightup.
When removing the door, watch
for washer(s) between the center hinge
and the bottom of the freezer door that
maysticktothedoor.Donotlose.
NOTE:
Reversingthedoor
9
upperhinge
cover(right)
screwholecover
Doorracks
