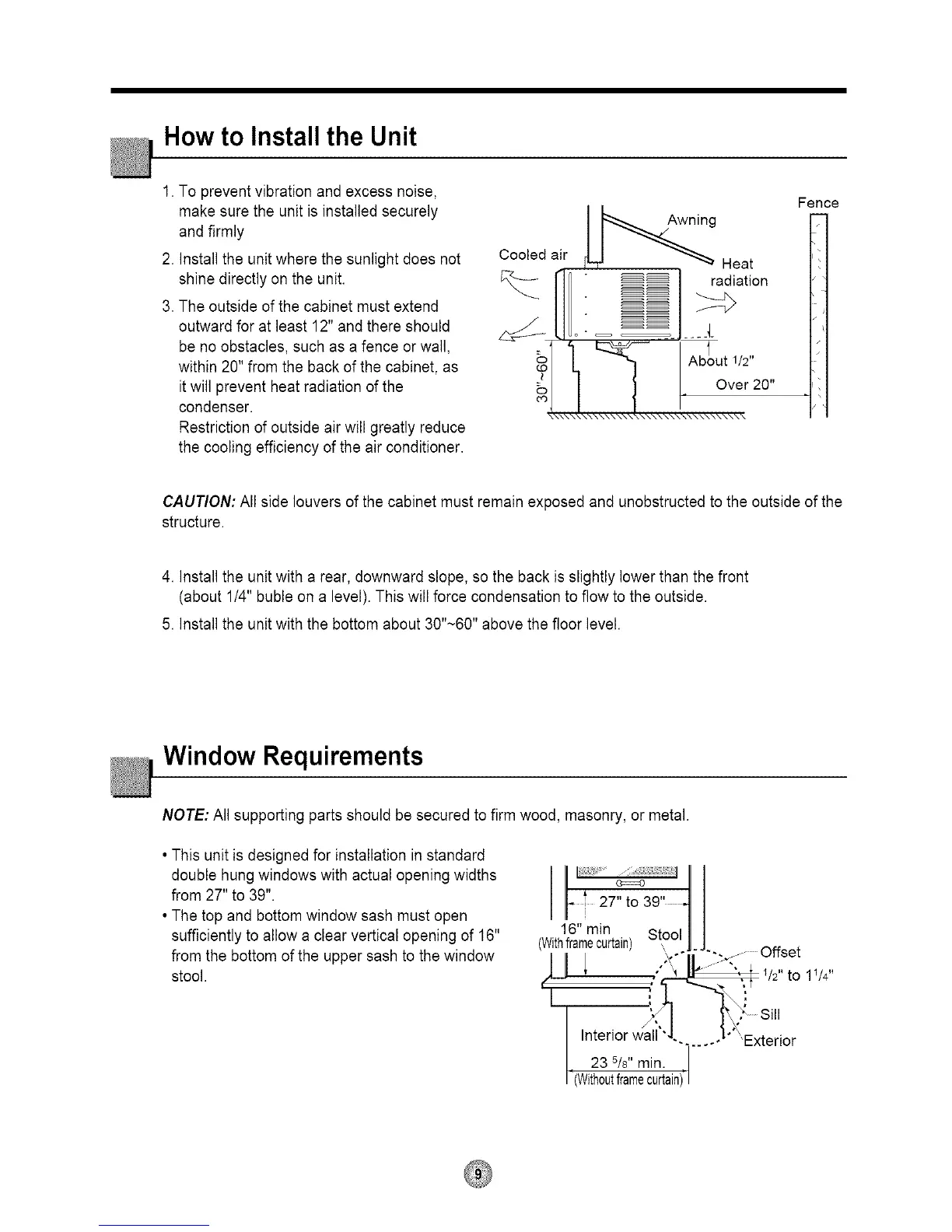

How to Install the Unit
1.To prevent vibration and excess noise,
make sure the unitis installed securely
and firmly
2. Install the unitwhere the sunlight does not
shinedirectly on the unit.
3.The outside of the cabinet must extend
outward for at least 12" and there should
be no obstacles, such as a fence or wall,
within 20" from the back of the cabinet, as
itwill prevent heat radiation of the
condenser.
Restriction ofoutside air will greatly reduce
the cooling efficiencyof the air conditioner.
Cooled air
Awning
Heat
Fence
CAUTION: All side louvers of the cabinet must remain exposed and unobstructed to the outside of the
structure.
4. Install the unitwith a rear, downward slope, so the back is slightly lower than the front
(about 114"buble on a level). This will force condensation to flow to the outside.
5. Install the unitwith the bottom about 30"~60'' above the floor level.
Window Requirements
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
• This unit is designedfor installation in standard
double hung windows with actual opening widths
from 27" to 39".
• The top and bottom window sash must open
sufficiently to allow a clear vertical opening of 16"
from the bottom ofthe upper sash to thewindow
stool.
ili27,,to39,,...........
. 16 min . Stool
/w@Tramecur_an) ,, Jl............ Offset
I iL"i\ :
5,1
Interior wall ".]" .... L"X,Exterior
, 23 5/8 min. ,/
I (Withoutframecurtain)/
To Next Page
