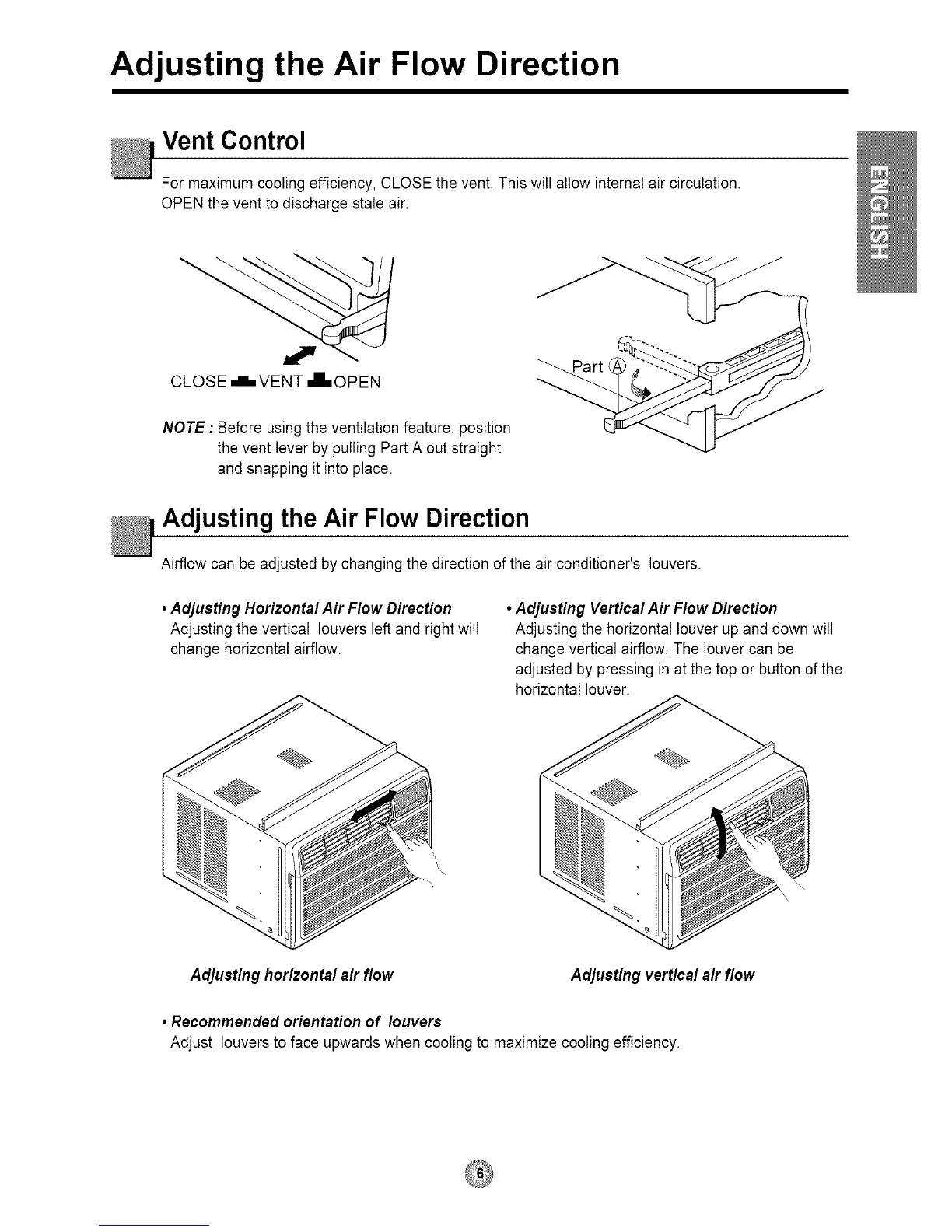

Adjusting the Air Flow Direction
Vent Control
Formaximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.
OPEN the vent to discharge stale air.
NOTE : Before usingthe ventilation feature, position
the vent lever by pulling PartA out straight
and snapping it into place.
*.uJ_'qp. -.
Part "" :_::--'.'."
Adjusting the Air Flow Direction
Airflow canbe adjustedby changing the directionoftheair conditioner's louvers.
•Adjusting Horizontal Air Flow Direction
Adjusting the vertical louvers left and right will
change horizontal airflow.
• Adjusting VerticalAir Flow Direction
Adjusting the horizontal louverup and down will
change vertical airflow. The louver can be
adjusted by pressing in at the top or button of the
horizontal louver.
\
\
Adjusting horizontal air flow Adjusting vertical air flow
• Recommended orientation of louvers
Adjust louvers to face upwards when cooling to maximize cooling efficiency.
