20 PB
MENU RETURN
MENU RETURN
OPERATION
User Interface
The TM Menu (Timer)

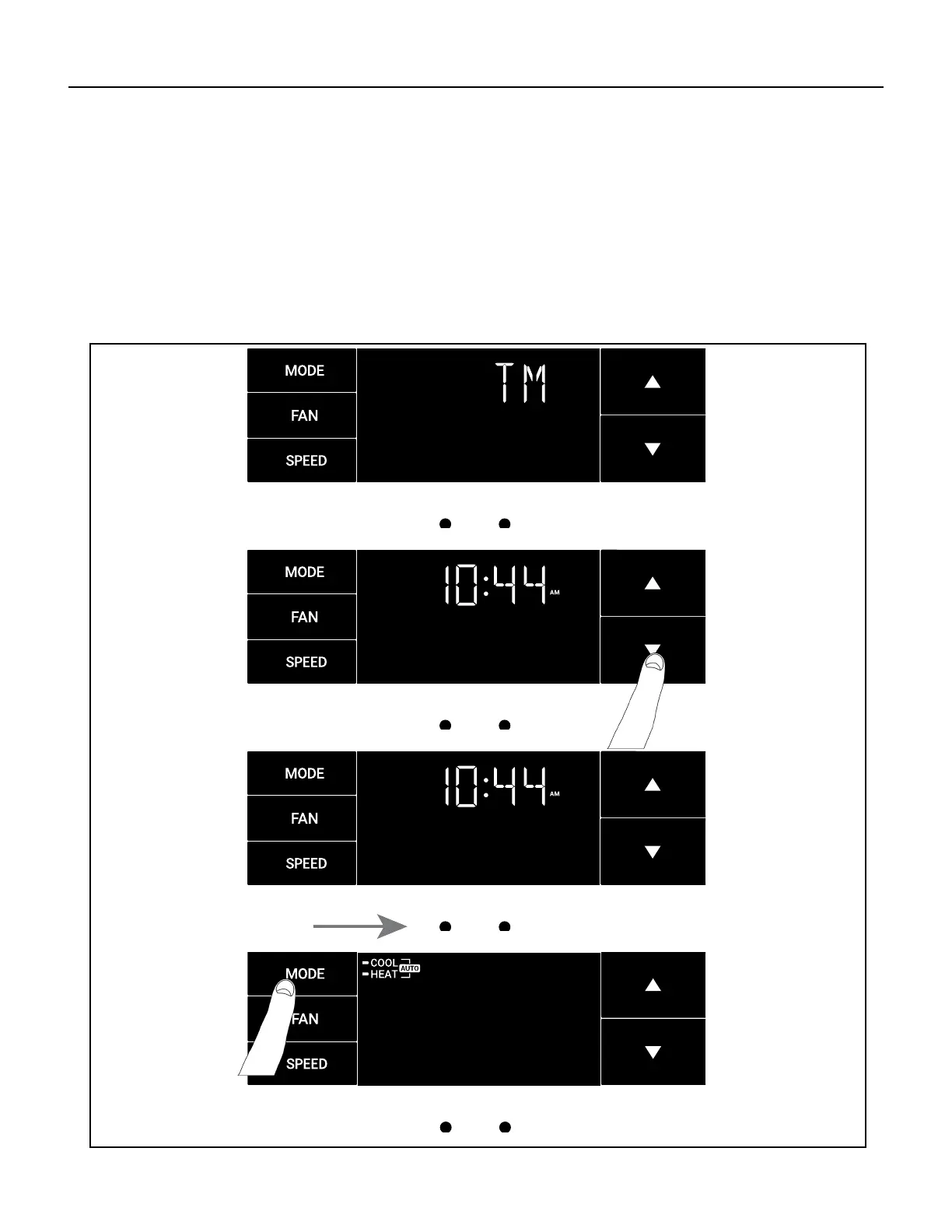

This is the TM menu used to set a timer. See Figure 313.
In the menu, you set the current time using the arrow buttons. See Figure 314. (Note: These two “set clock” steps will be
skipped if the unit is already connected to Wi-Fi.)
First, set the hour.
Using the MENU button, you switch to the minutes and complete setting the time. See Figure 315.
You select your mode. Either cool, heat, or auto. Toggle these using the mode button. See Figure 316. (Note: cooling-only mod-
els skip this step.)
The process is the same for all three modes. Auto mode will be shown as the example.
Figure 313
MENU
RETURN
Figure 314
MENU RETURN
Figure 315
Figure 316
To Next Page
