18
C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)
OPTIONAL: The factory assembles the supply cord so that it exits the left side
of the unit at the bottom. At the consumer’s discretion, pull the supply
cord taut through the loops (refer to Cord Routing Change, Section
C.6) and route the cord down.
STEP 14. To attach and prevent damage to the front grille, align the cord notch
over the cord and center the fresh air lever, then align and tighten the
four (4) captive screws as indicated by the arrows in Figure C.4.16.
(prefered tool is a 1/4” nut driver) Before closing the front panel, be
sure the lter is in place. Make sure curtains do not block the side
air intakes.
STEP 15. Refer to the Control Panel Operation section for instructions.
You are now to control the comfort level of the room.

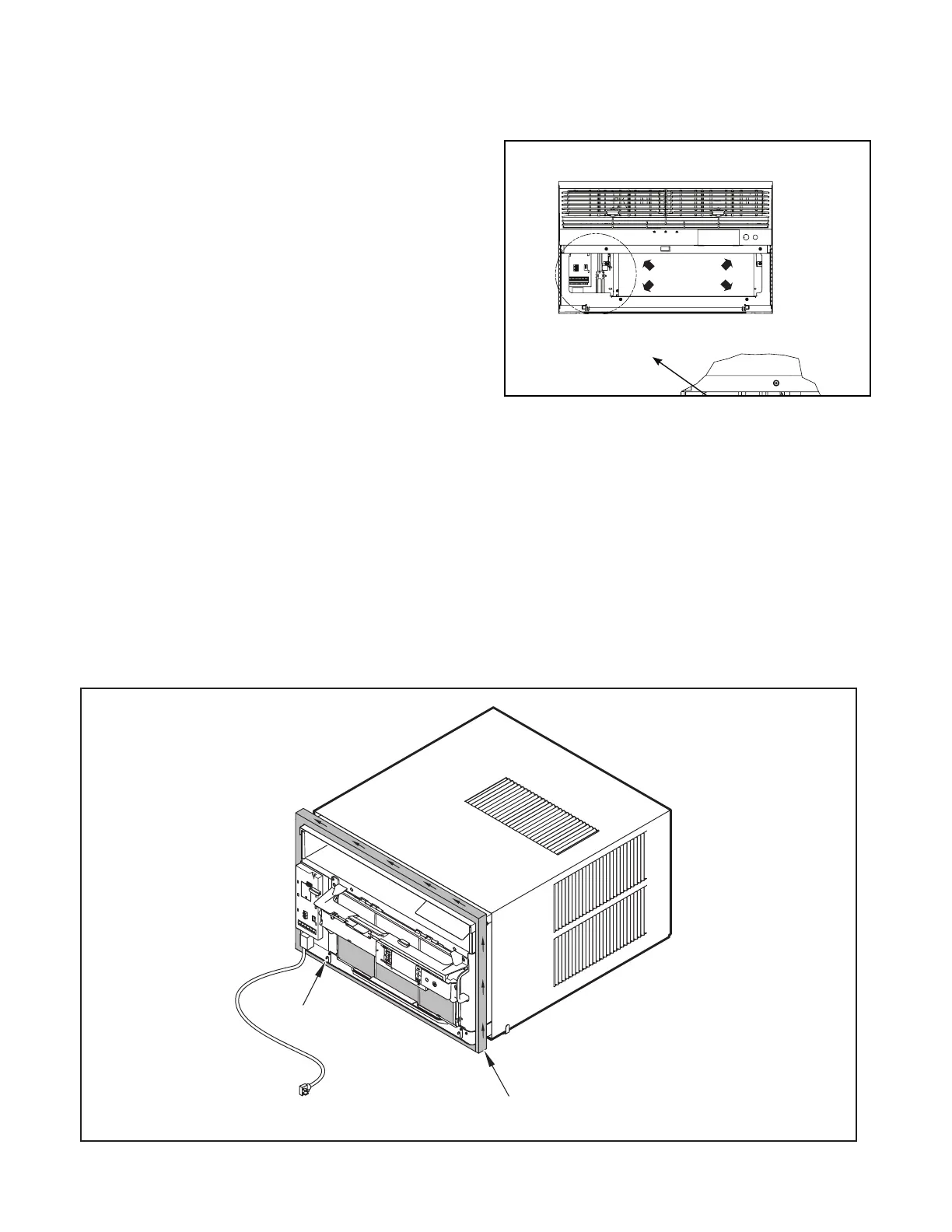

Figure C.4.15
POWER CORD CLIP
NOTE: WHEN INSTALLING THE CHASSIS
SEAL GASKET, BEGIN AT EITHER BOTTOM
CORNER AND GO UP THE SIDE & ACROSS
THE TOP & DOWN THE OPPOSITE SIDE.
CHASSIS SEAL GASKET (ITEM 13)
B
Figure C.4.16
use hand
tools do not
overtighten
