J. STARTUP AND OPERATION
J.3 Control Panel Operation
MENU RETURN

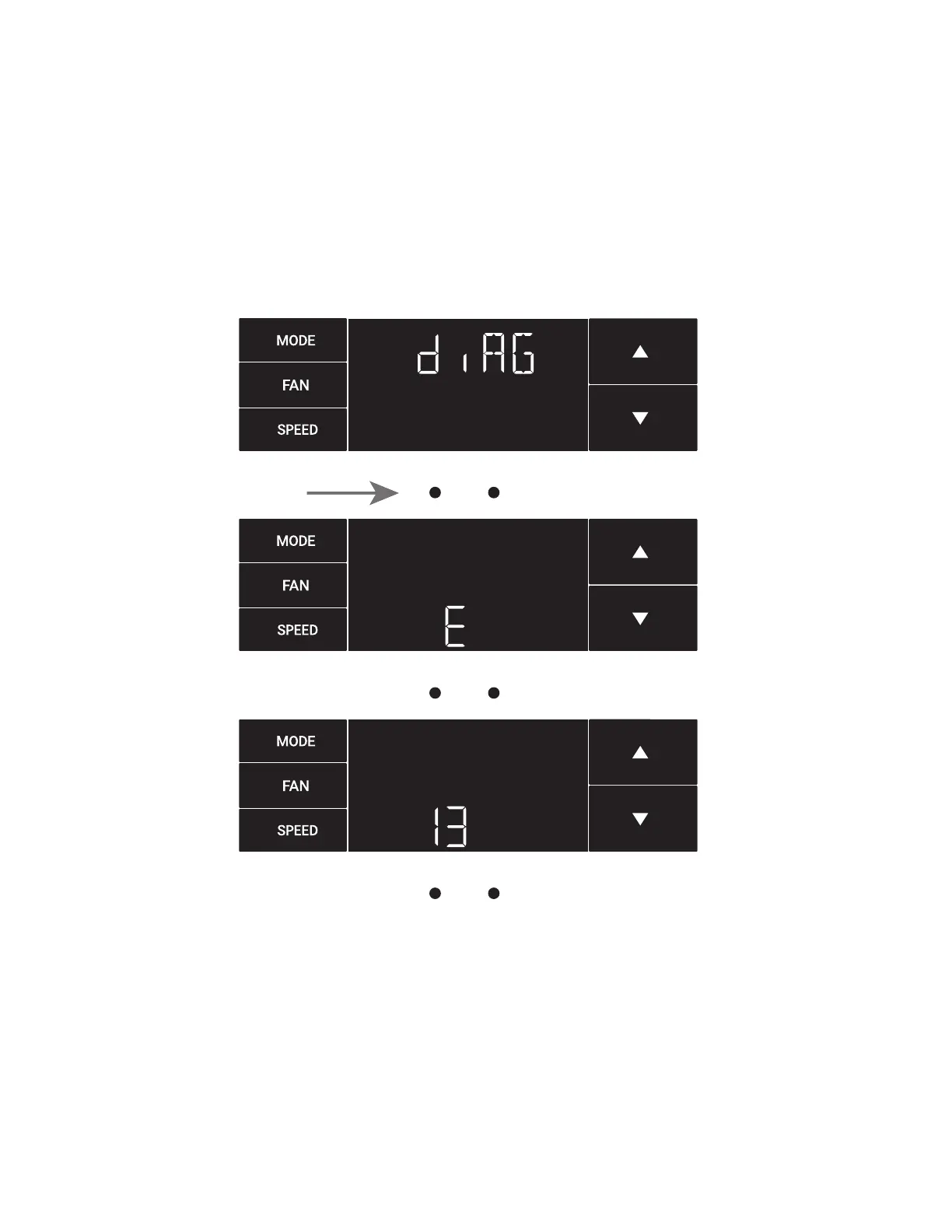

The diAG Menu
This menu is used to access the diagnostic codes. See Figure J.3.40.
Selecting this sub-menu shows the E that represents “Error.”
See Figure J.3.41
Toggle through the error codes using the arrow keys. See Figure J.3.42
Figure
J.3.40
MENU RETURN
Figure
J.3.41
MENU RETURN
Figure
J.3.42
