Friedrich MRM09Y1J Service Manual


Installation and Maintenance
6HUYLFH0DQXDO
 0DOIXQFWLRQRI%ORFNHG3URWHFWLRQRI,'8)DQ0RWRU+
Measure the voltage of this foot to neutral
wire on the mainboard

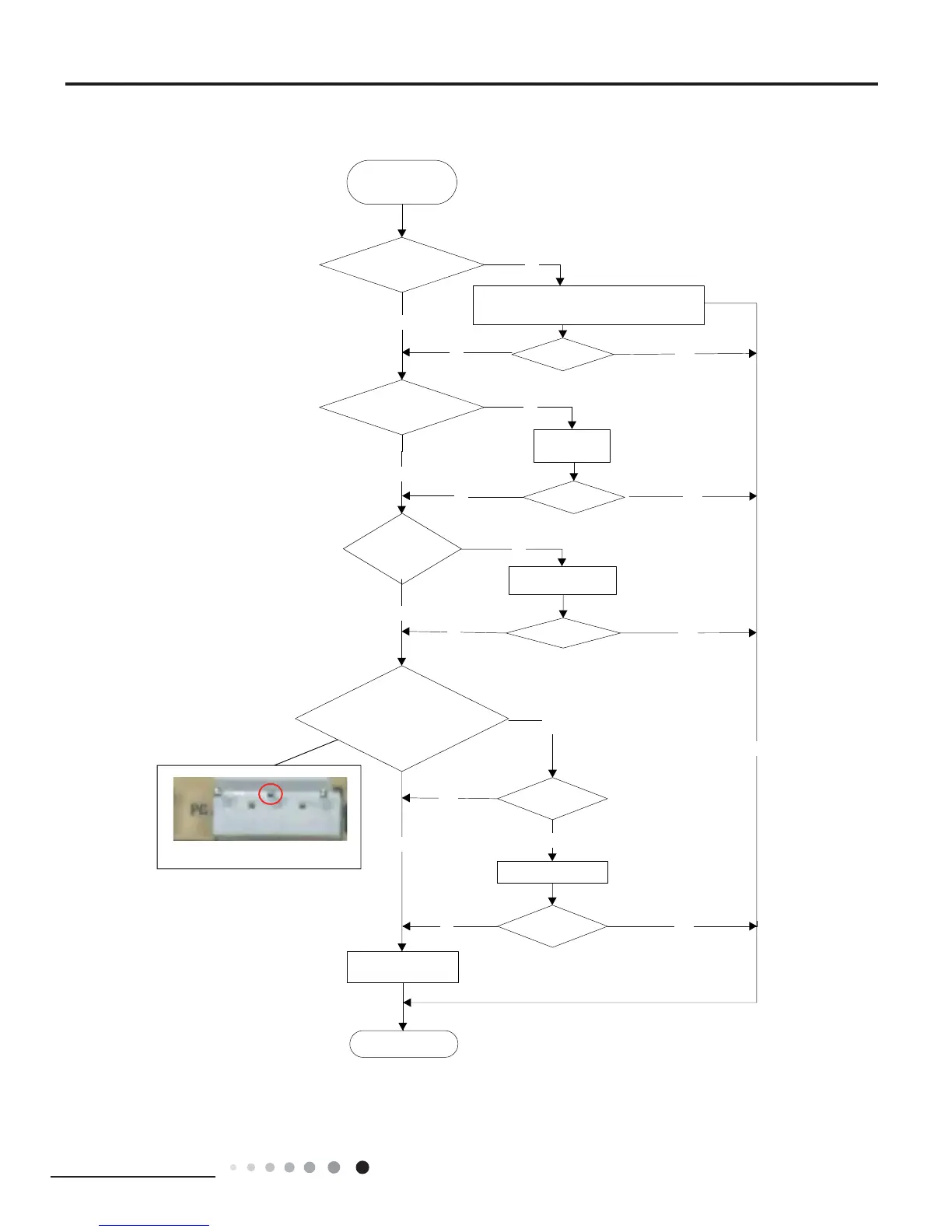

Troubleshooting for
H6 malfunction
Stir the blade
with a tool to see whether
the blade rotates
smoothly
Replace PG motor
End
yes
no
Is malfunction
eliminated
yes
no
Insert the control
ter minal of PG
motor tightly
no
no
Reinstall the blade and
motor correctly
Is malfuncti on
elim inated
no
no
yes
yes
Turn on the
unit again ; measure whether the output
voltage on control term inal for PG m otor
is more than 50V within 1 min after the
louvers ar e opened
no
yes
yes
Is the motor
started up
no
Is malfuncti on
elim inated
yes
yes
yesno
yes
Is malfunction
elim inated
Tighten the screw; reassemble the blade, motor
and shaft bearing rubber base sub-assy to make
sure there is no foreign object between them
Replace the mainboard
with the same model.
Check if the connection of PG
motor feedback terminal is firm.
Check if the connection
of PG motor control
terminal is firm.

Friedrich MRM09Y1J Specifications

General

Brand	Friedrich
Model	MRM09Y1J
Category	Air Conditioner
Language	English
