Installation and Maintenance
6HUYLFH0DQXDO
6WHSV
3URFHGXUH
3RLQWV

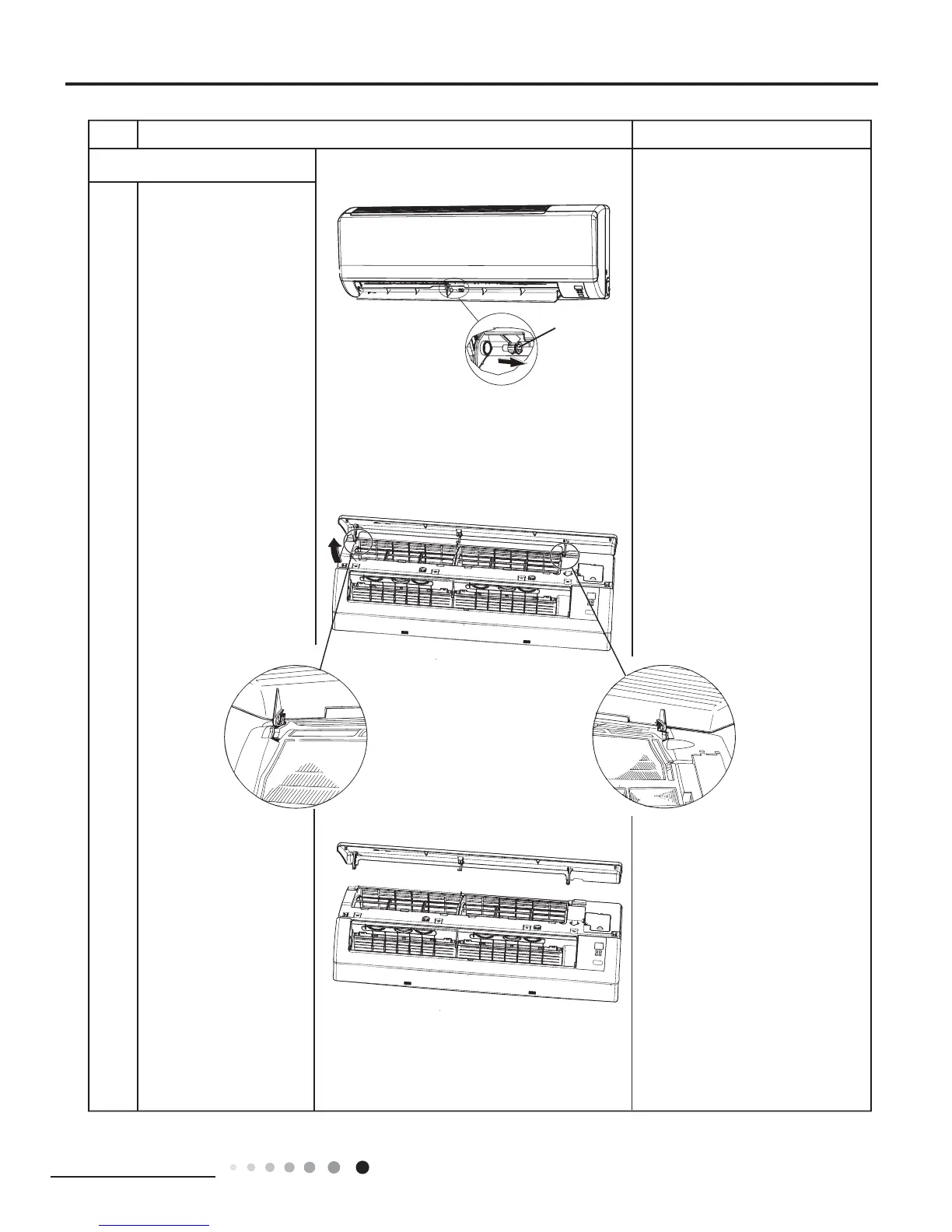

2SHQLQJDQGVKXWWLQJIURQWSDQHO
Support the front panel by one
hand, while remove the rotation
axis at the upper center by the
other hand.
■
Draw out the axial bush.
Bend the horizontal louver
slightly and then remove it.
a
Left and right filters are
interchangeable.
■
To re-install, insert air filter
along the guide.
■
Hook a finger onto the
projection part provided
on the both sides of the
units panel and open
up the panel to the
position higher than it
will stop.
b
Remove the front panel
from the unit.
c
Guide Louver
Axial bush
To Next Page
