14 _ Wall mounted

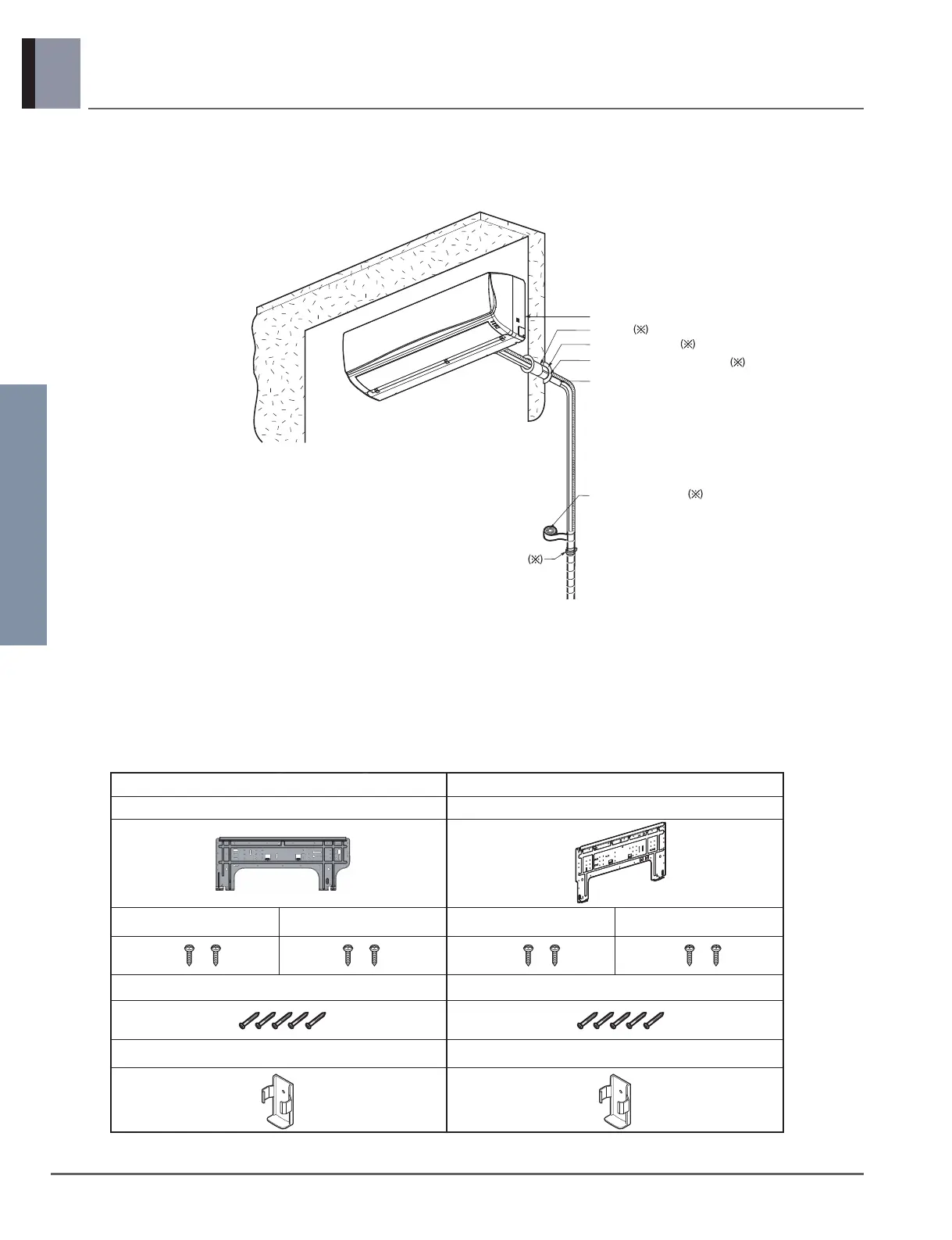

10. Installation
Part 2 Product data_Indoor units
[Wall-mounted Type]
Type “A” screw Type “A” screw
Type "B" screw Type "C" screw Type "B" screw Type "C" screw
Remote control holderRemote control holder
Type 1 Type 2
Installation plate Installation plate
10.1 Accessories
The following accessories are included with your unit.
1) Standard accessories
• Please read the instruction sheets completely before installing the product.
• When the power cord is damaged, replacement work shall be performed by authorized personnel only.
• Installation work must be performed in accordance with the national wiring standards by authorized personnel only.
Vinyl tape (Wide)
• Apply after carrying out a
drainage test.
• To carry out the drainage
test, remove the air filters
and pour water into the heat
exchanger.
Saddle
Installation plate
Sleeve
Bushing-Sleeve
Putty(Gum Type Sealant)
Bend the pipe as closely
on the wall as possible,
but be careful that it
doesn't break.
To Next Page
