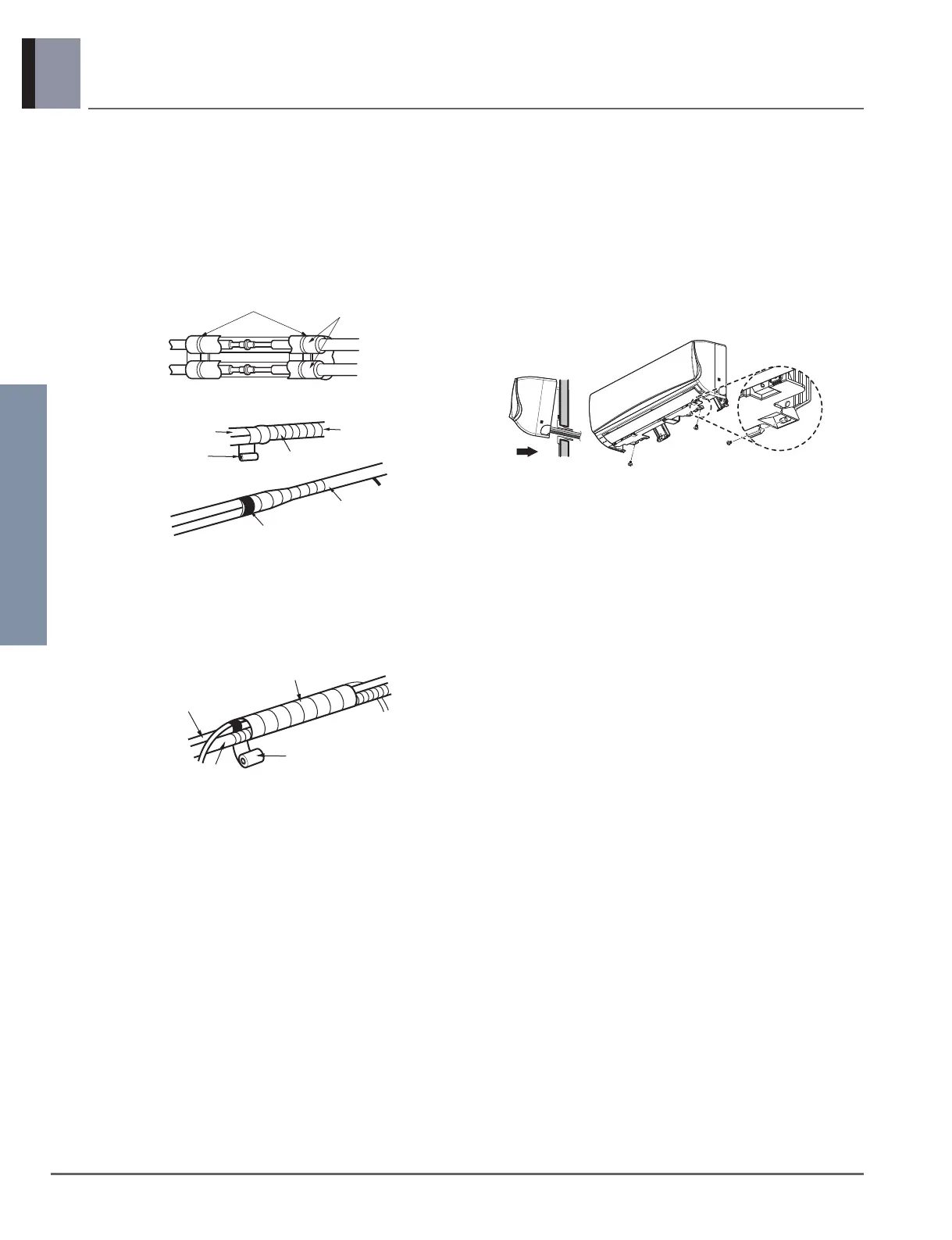

3) Wrap the insulation material around the
connecting portion.
① Overlap the connection pipe heat insulation and the
indoor unit pipe heat insulation material. Bind them
together with vinyl tape so that there is no gap.
② Wrap the area which accommodates the rear piping
housing section with vinyl tape.
③ Bundle the piping and drain hose together by wrapping
them with cloth tape over the section within which they fit
into the rear piping housing section.
4) Finishing the indoor unit installation
①
Mount the tubing holder in the original positon.
②
Ensure that the hooks are properly seated on the instal-
lation plate by moving it left and right.
③
Press the lower left and right sides of the unit against the
installation plate until the hooks engage into their slots
(clicking sound).
④
Finish the assembly by screwing the unit to the installa-
tion plate by using two pieces of type "C" screws. Then
assemble the chassis cover.
