Friedrich MULTI ZONE MR24DY3JMA - Page 92

12 _ Multiple piping type
MULTI ZONEMULTI ZONE
Part 2 Product data_Outdoor units

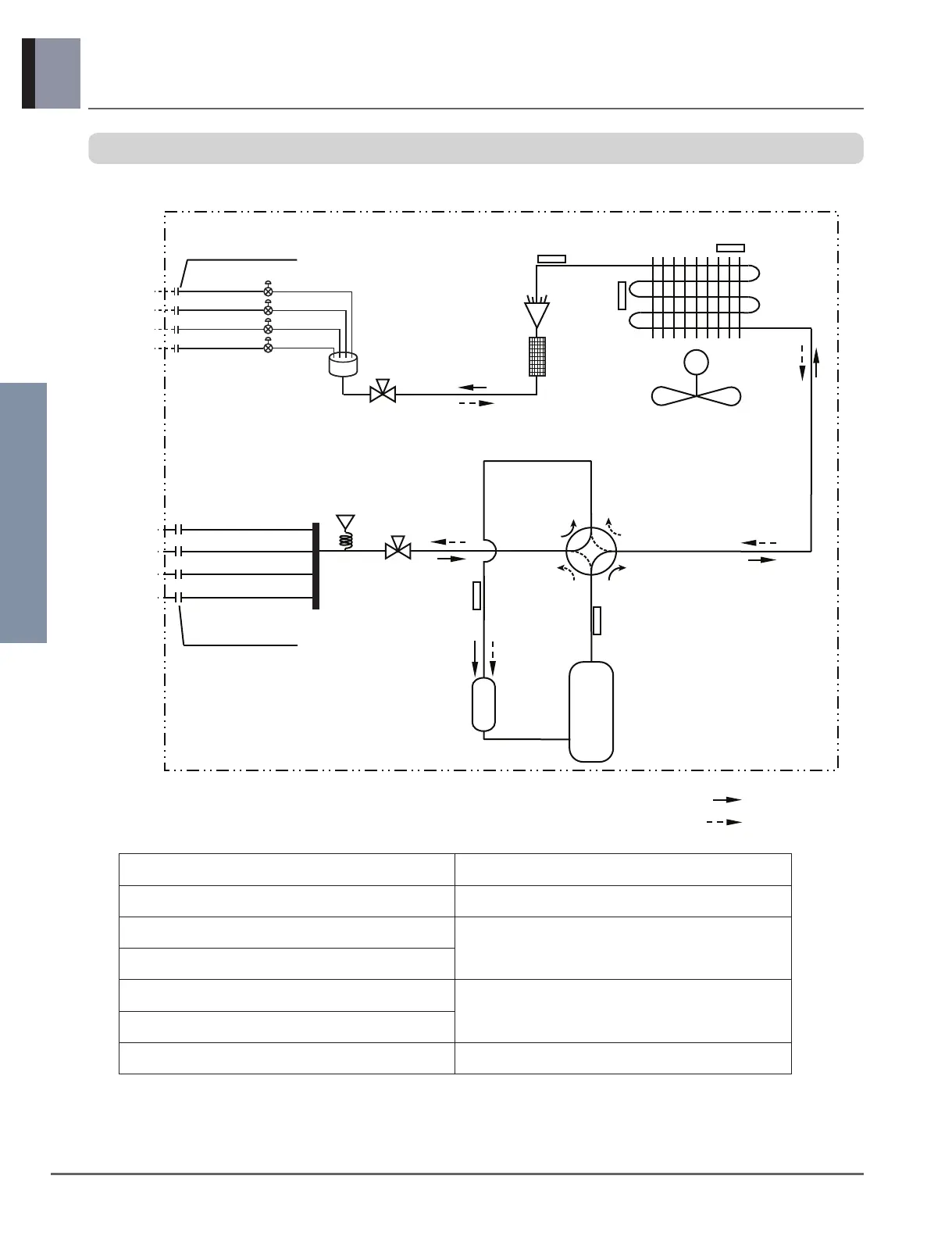

5. Piping diagrams
Models : MR36TQY3JMA
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Accumulator
Compressor
Strainer
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Flare Connection
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM B
: Cooling
: Heating
Main SVC V/V
ROOM C
ROOM D
Main SVC V/V
Pressure
Sensor
Room A
Room B
Room C
Room D
Electronic
Expansion Valve-C
Electronic
Expansion Valve-B
Electronic
Expansion Valve-A
Electronic
Expansion Valve-D
Description PCB Connector
Condensing temperature Thermistor CN_TH4
Condenser out temperature Thermistor
CN_TH2
Inlet air temperature Thermistor
Discharge temperature Thermistor
CN_TH3
Suction temperature Thermistor
Pressure Sensor CN_TH1
