Friedrich WallMaster WCT16 - Control Panel: LIM Menu

17
J. STARTUP AND OPERATION
J.3 Control Panel Operation
MENU
RETURN

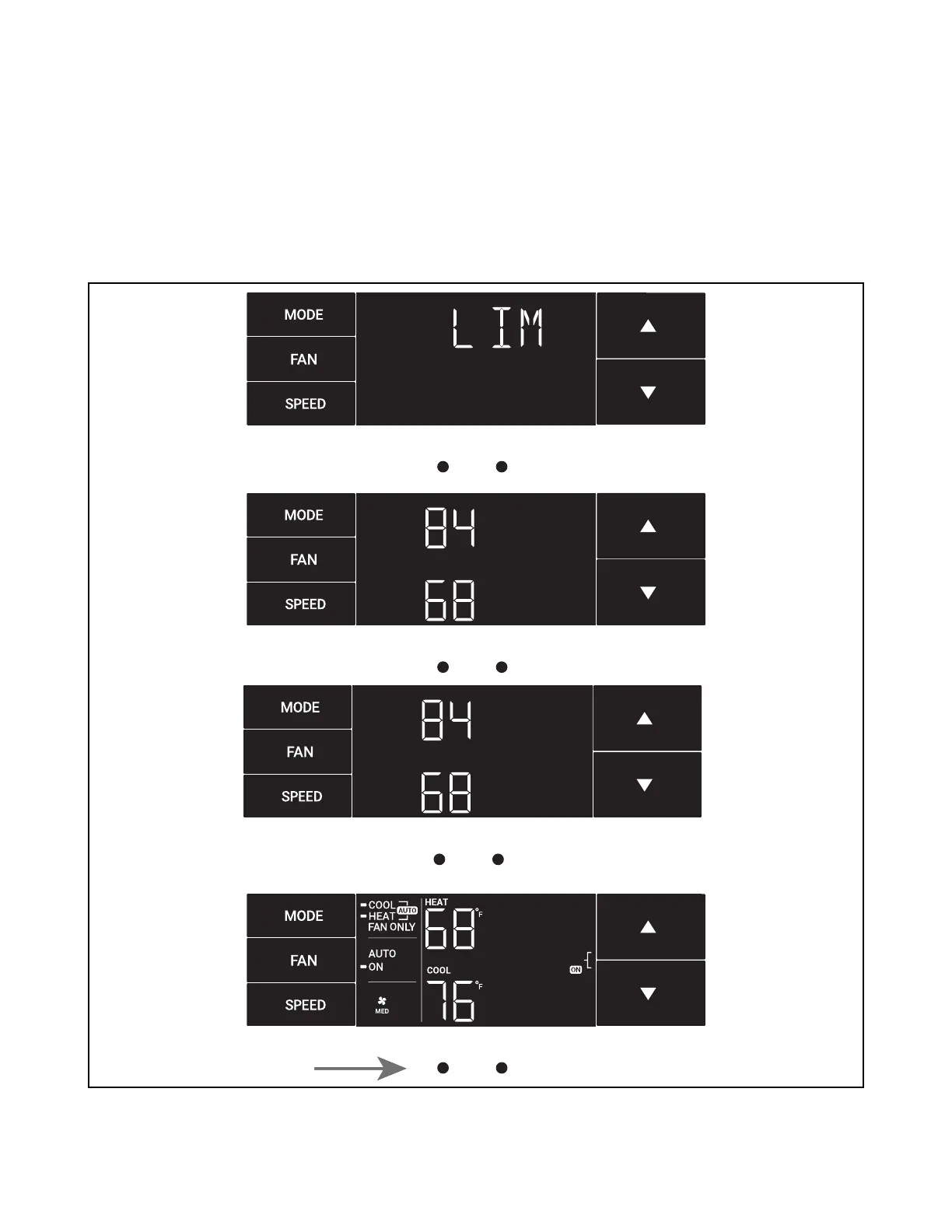

The LIM Menu
This is the limit menu. See Figure J.3.8.
Upon entering the menu, the rst option will be to set the lower setpoint
limit using the arrow buttons. See Figure J.3.9.
Figure
J.3.8
MENU RETURN
Figure
J.3.9
MENU RETURN
Figure
J.3.10
Figure
J.3.11
Then you can set the higher setpoint limit using the arrow buttons.
See Figure J.3.10.
Pressing the menu button completes the limit setting. See Figure J.3.11.
MENU RETURN
