Friedrich WallMaster WCT16 - Control Panel: diAG Menu

26
J. STARTUP AND OPERATION
J.3 Control Panel Operation
MENU RETURN
The diAG Menu

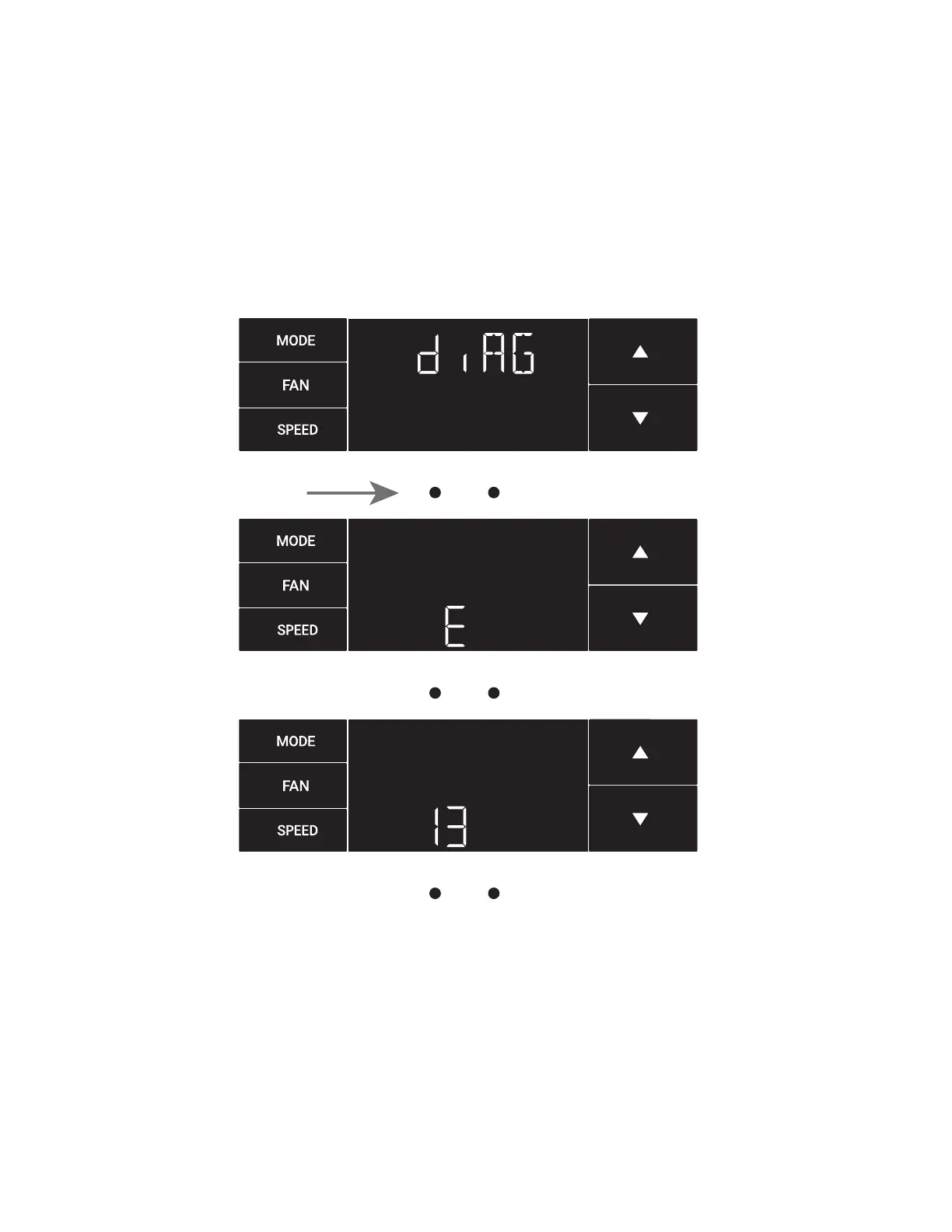

This menu is used to access the diagnostic codes. See Figure J.3.40.
Selecting this sub-menu shows the E that represents “Error.”
See Figure J.3.41
Toggle through the error codes using the arrow keys. See Figure J.3.42
Figure
J.3.40
MENU RETURN
Figure
J.3.41
MENU RETURN
Figure
J.3.42
