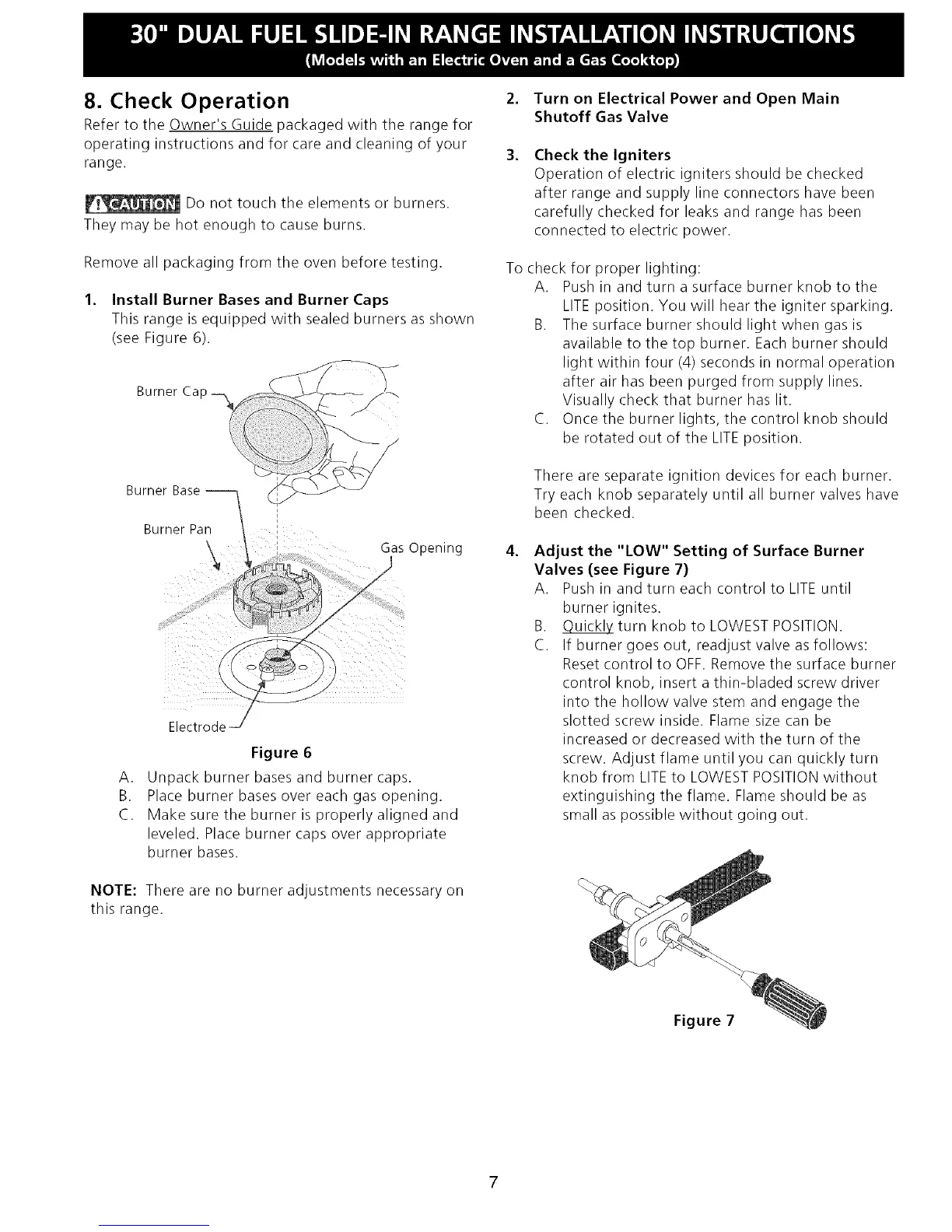

8. Check Operation
Refer to the Owner's Guide packaged with the range for
operating instructions and for care and cleaning of your
range.
Do not touch the elements or burners.
They may be hot enough to cause burns.
Remove all packaging from the oven before testing.
1. Install Burner Bases and Burner Caps
This range is equipped with sealed burners as shown
(see Figure 6).
Burner Cap_
Burner Base-- d
Burner Pan
Gas Opening
A.
B.
C.
Electrode
Figure 6
Unpack burner bases and burner caps.
Place burner bases over each gas opening.
Make sure the burner is properly aligned and
leveled. Place burner caps over appropriate
burner bases.
NOTE: There are no burner adjustments necessary on
this range.
2. Turn on Electrical Power and Open Main
Shutoff Gas Valve
,
Check the Igniters
Operation of electric igniters should be checked
after range and supply line connectors have been
carefully checked for leaks and range has been
connected to electric power.
To check for proper lighting:
A. Push in and turn a surface burner knob to the
LITEposition. You will hear the igniter sparking.
B. The surface burner should light when gas is
available to the top burner. Each burner should
light within four (4) seconds in normal operation
after air has been purged from supply lines.
Visually check that burner has lit.
C. Once the burner lights, the control knob should
be rotated out of the LITEposition.
There are separate ignition devices for each burner.
Try each knob separately until all burner valves have
been checked.
,
Adjust the "LOW" Setting of Surface Burner
Valves (see Figure 7)
A. Push in and turn each control to LITEuntil
burner ignites.
B. Quickly turn knob to LOWEST POSITION.
C. If burner goes out, readjust valve asfollows:
Reset control to OFF. Remove the surface burner
control knob, insert a thin-bladed screw driver
into the hollow valve stem and engage the
slotted screw inside. Flame size can be
increased or decreased with the turn of the
screw. Adjust flame until you can quickly turn
knob from LITEto LOWEST POSITION without
extinguishing the flame. Flame should be as
small as possible without going out.
Figure 7 _%
