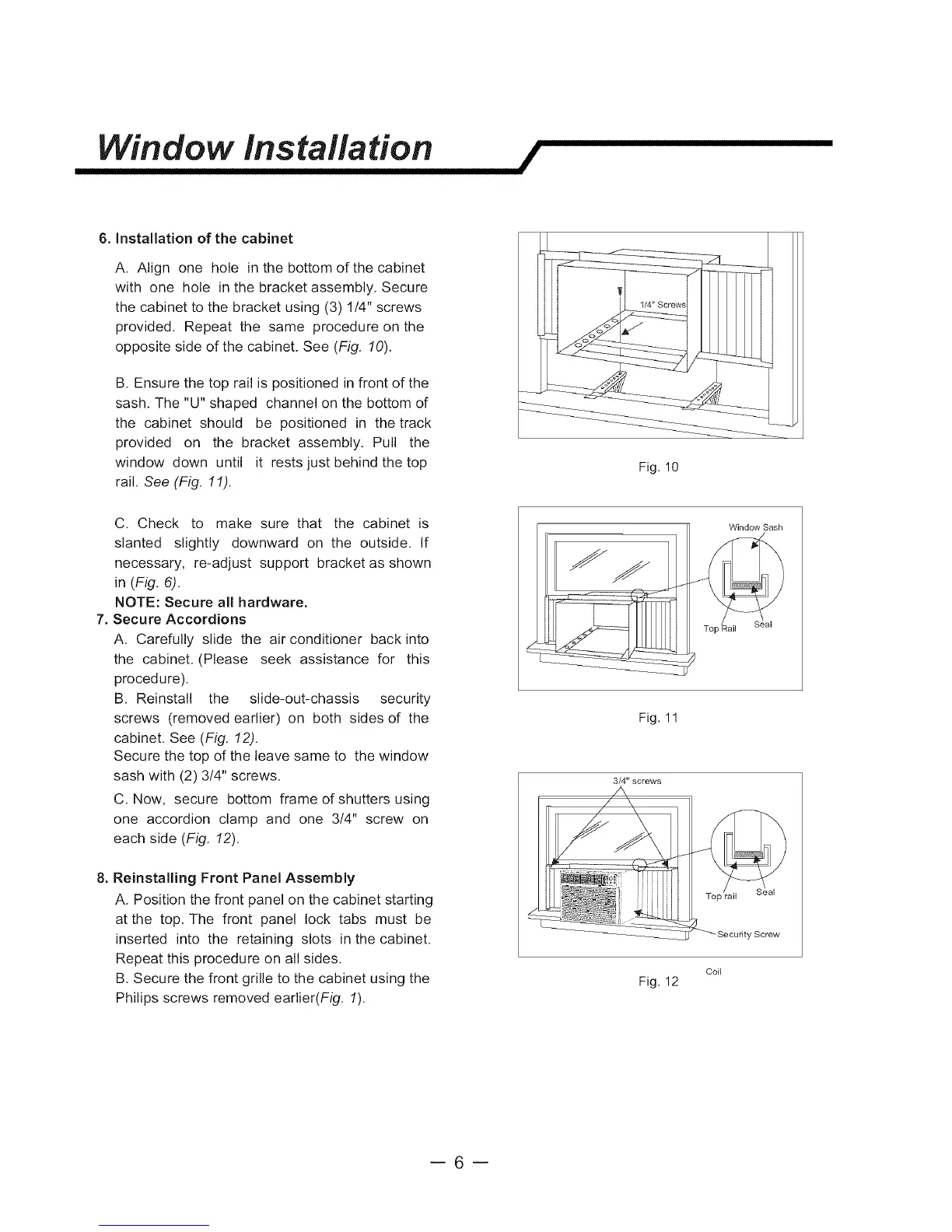

Window installation
/
6. Installation of the cabinet
A. Align one hole in the bottom of the cabinet
with one hole in the bracket assembly. Secure
the cabinet to the bracket using (3) 1/4" screws
provided. Repeat the same procedure on the
opposite side of the cabinet. See (Fig. 10).
B. Ensure the top rail is positioned in front of the
sash. The "U" shaped channel on the bottom of
the cabinet should be positioned in the track
provided on the bracket assembly. Pull the
window down until it rests just behind the top
rail. See (Fig. 11).
C. Check to make sure that the cabinet is
slanted slightly downward on the outside. If
necessary, re-adjust support bracket as shown
in (Fig. 6).
NOTE: Secure all hardware.
7. Secure Accordions
A. Carefully slide the air conditioner back into
the cabinet. (Please seek assistance for this
procedure).
B. Reinstall the slide-out-chassis security
screws (removed earlier) on both sides of the
cabinet. See (Fig. 12).
Secure the top of the leave same to the window
sash with (2) 3/4" screws.
C. Now, secure bottom frame of shutters using
one accordion clamp and one 3/4" screw on
each side (Fig. 12).
8. Reinstalling Front Panel Assembly
A. Position the front panel on the cabinet starting
at the top. The front panel lock tabs must be
inserted into the retaining slots in the cabinet.
Repeat this procedure on all sides.
B. Secure the front grille to the cabinet using the
Philips screws removed earlier(Fig. 1).
Fig. 10
Window Sash
Seal
Fig. 11
3/4" screws
Coil
Fig. 12
--6--
