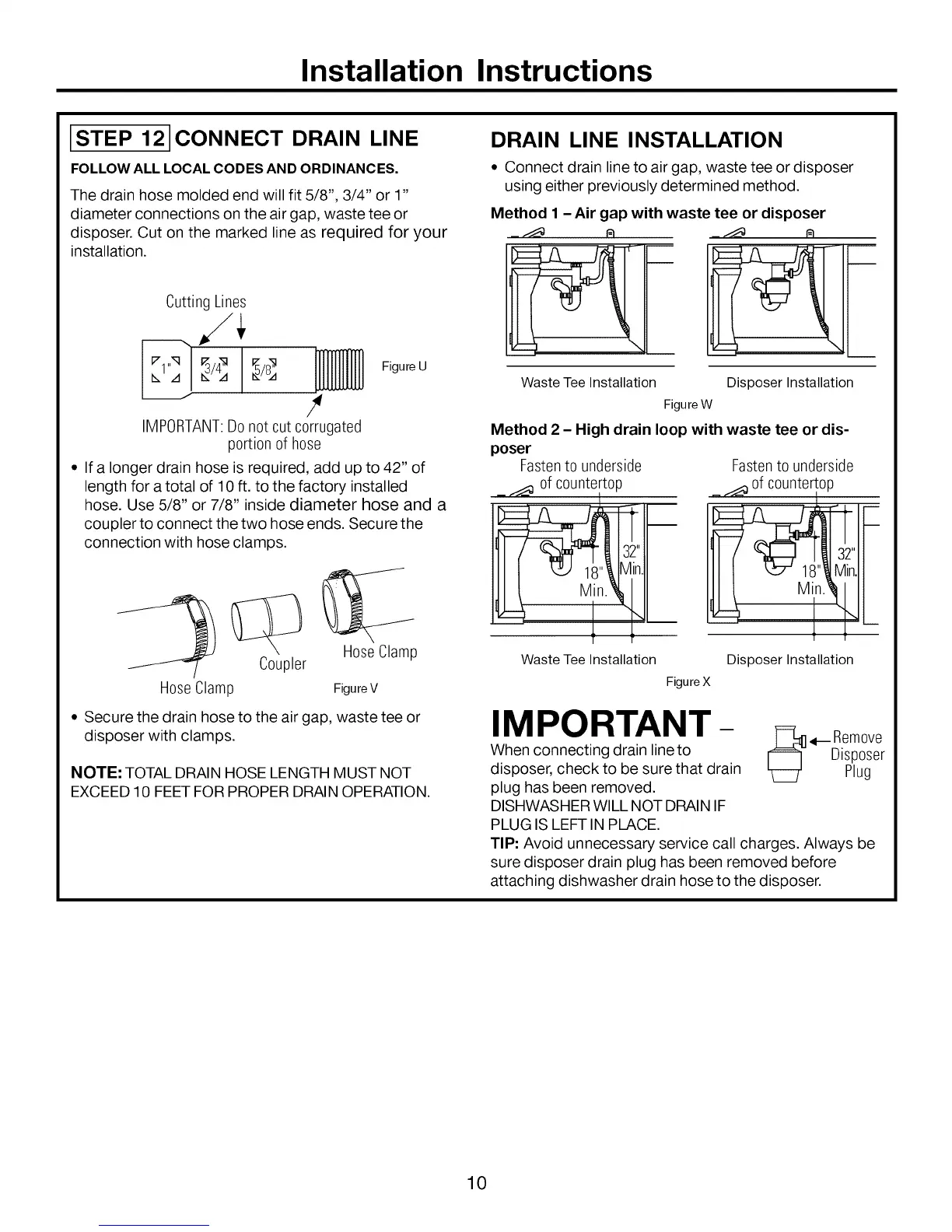

Installation Instructions
[STEP 12]CONNECT DRAIN LINE
FOLLOWALL LOCALCODES AND ORDINANCES.
The drain hose molded end will fit 5/8", 3/4" or 1"
diameter connections on the air gap, waste tee or
disposer. Cut on the marked line as required for your
installation.
Cutting Lines
IMPORTANT:Do not cut corrugated
portion of hose
Figure U
• If a longer drain hose is required, add up to 42" of
length for a total of 10 ft. to the factory installed
hose. Use 5/8" or 7/8" inside diameter hose and a
coupler to connect the two hose ends. Secure the
connection with hose clamps.
HoseClamp
HoseClamp
Coupler
Figu re V
• Secure the drain hose to the air gap, waste tee or
disposer with clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT
EXCEED 10 FEET FOR PROPER DRAIN OPERATION.
DRAIN LINE INSTALLATION
• Connect drain line to air gap, waste tee or disposer
using either previously determined method.
Method 1 - Air gap with waste tee or disposer
____ r_ _/_a r_
Waste Tee Installation Disposer Installation
FigureW
Method 2 - High drain loop with waste tee or dis-
poser
Fastento underside
_ _ of c0untert0p,
WasteTeeInstallation
Fastento underside
_ _ of c0unter!0p
k
Disposer Installation
Figu re X
IMPORTANT -
When connecting drain line to
disposer, check to be sure that drain
plug has been removed.
DISHWASHER WILL NOT DRAIN IF
PLUG IS LEFT IN PLACE.
_ emove
Disposer
Plug
TIP: Avoid unnecessary service call charges. Always be
sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
10
