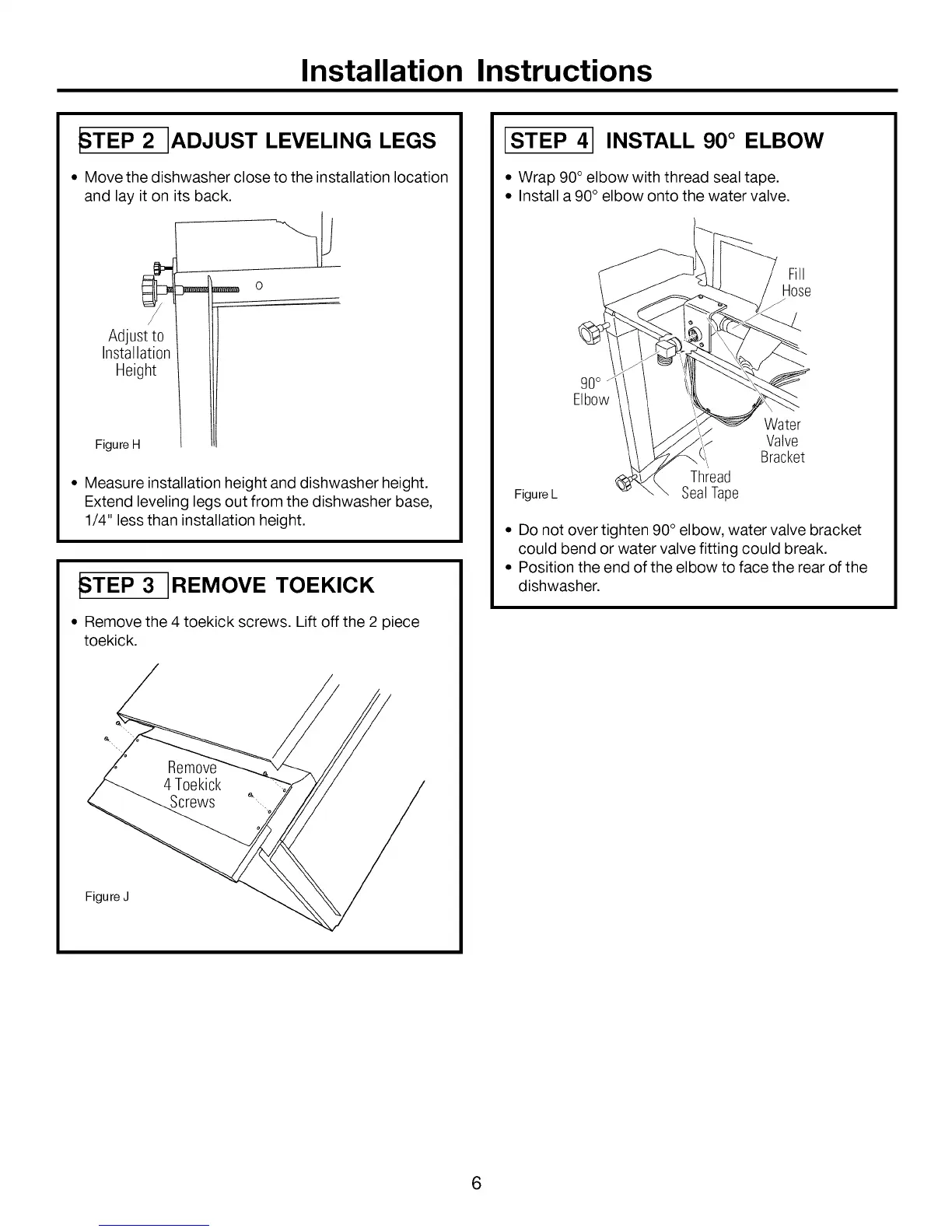

Installation Instructions
_STEP 2 ADJUST LEVELING LEGS
• Move the dishwasher close to the installation location
and lay it on its back.
Adjust to
Installation
Height
Figure H
_Em_ O
• Measure installation height and dishwasher height.
Extend leveling legs out from the dishwasher base,
1/4" less than installation height.
_STEP 3 REMOVE TOEKICK
• Remove the 4 toekick screws. Lift off the 2 piece
toekick.
Figure J
STEP 4 INSTALL 90 ° ELBOW
• Wrap 90° elbow with thread seal tape.
° Install a 90° elbow onto the water valve.
Fill
Hose
Figure L
90°
Elbow
Thread
SealTape
Water
Valve
Bracket
• Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
° Position the end of the elbow to face the rear of the
dishwasher.
