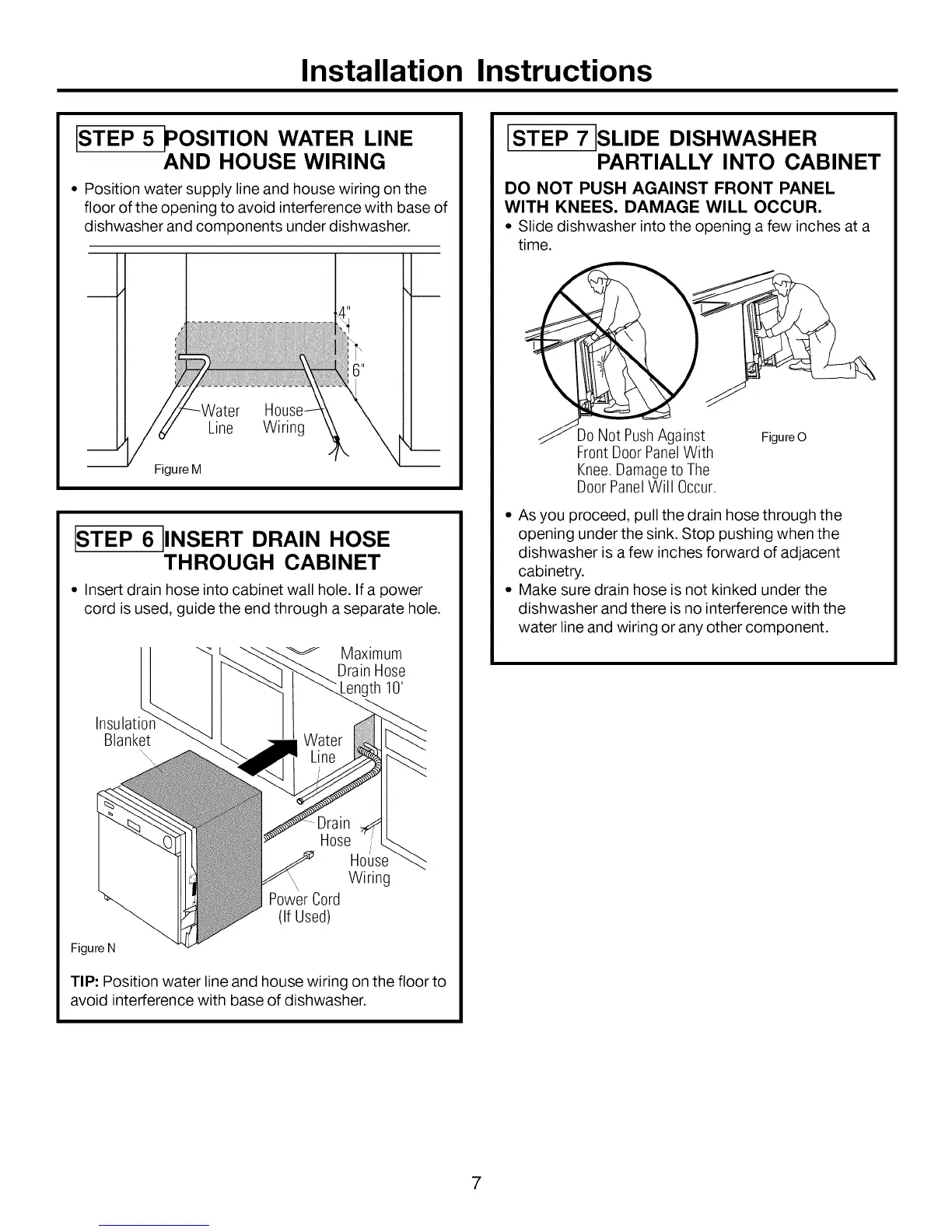

Installation Instructions
STEP 5 pOSITION WATER LINE
AND HOUSE WIRING
° Position water supply line and house wiring on the
floor of the opening to avoid interference with base of
dishwasher and components under dishwasher.
Figure M
Line Wiring
STEP 6 INSERT DRAIN HOSE
THROUGH CABINET
° Insert drain hose into cabinet wall hole. Ifa power
cord is used, guide the end through a separate hole.
Insulati
Blanket
Maximum
DrainHose
ength 10'
Drain
Hose
mo(]se
Wiring
PowerCord
(If Used)
Figure N
TIP'. Position water line and house wiring on the floor to
avoid interference with base of dishwasher.
STEP 7 SLIDE DISHWASHER
PARTIALLY INTO CABINET
DO NOT PUSH AGAINST FRONT PANEL
WITH KNEES. DAMAGE WILL OCCUR.
° Slide dishwasher into the opening a few inches at a
time.
D N tP hA _nt
FrontDoor PanelWith
Knee•Damageto The
DoorPanelWill Occur•
° As you proceed, pull the drain hose through the
opening under the sink. Stop pushing when the
dishwasher is a few inches forward of adjacent
cabinetry.
° Make sure drain hose is not kinked under the
dishwasher and there is no interference with the
water line and wiring or any other component.
7
